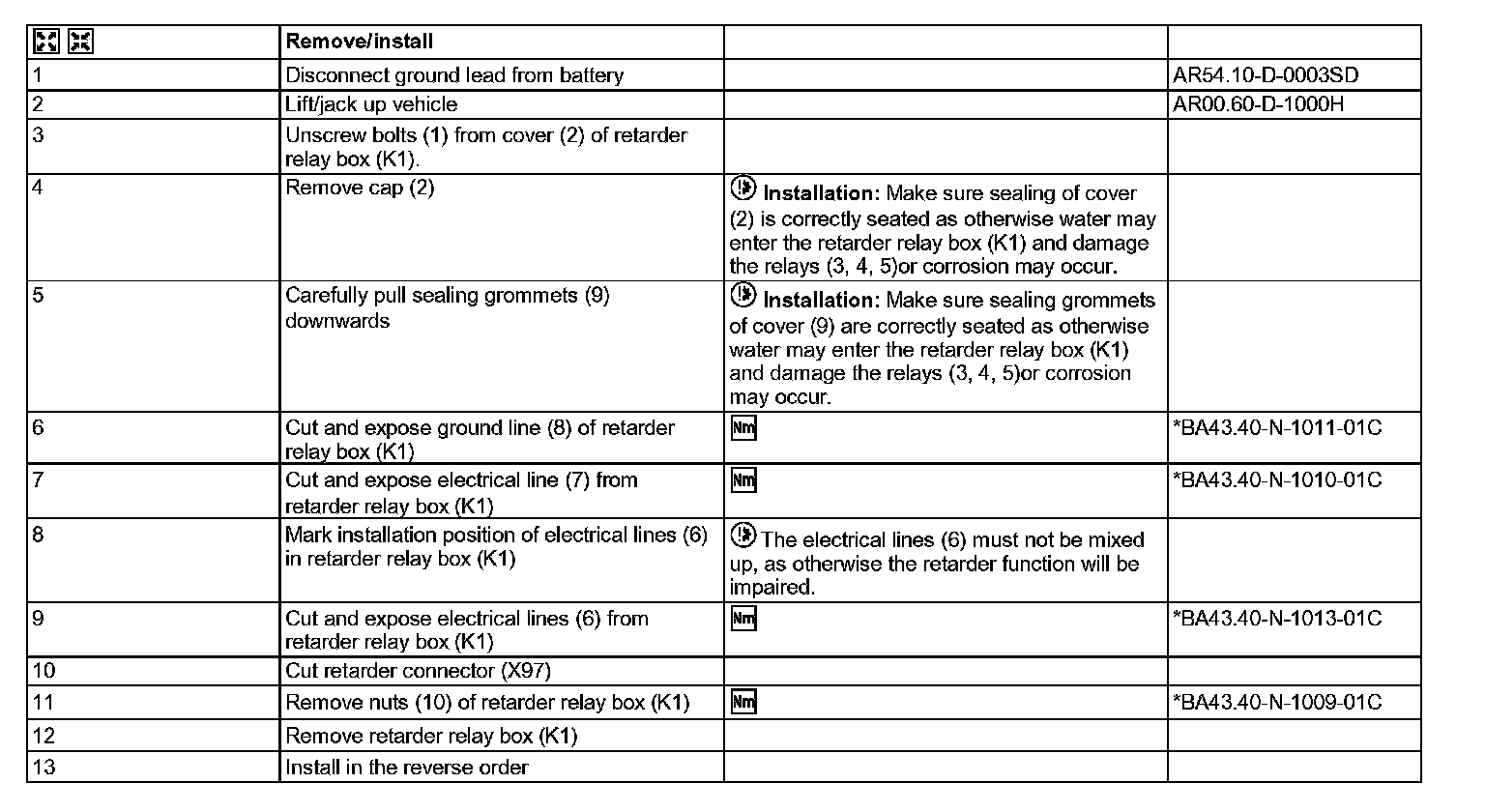

AR43.40-D-1750C Remove/Install Relay Box From Telma Retarder

AR43.40-D-1750C Remove/Install Relay Box From Telma Retarder

- with CODE (PB2) Mastercode retarder VMC





1 Bolts
2 Cover
3 Relay (circuit 1)
4 Relay (circuit 2)
5 Relay (circuit 3)
6 Electrical lines (to retarder)
7 Electrical line (power supply)
8 Ground cable
9 Sealing grommets
10 Nuts

K1 Retarder relay box
X97 Retarder plug connection
