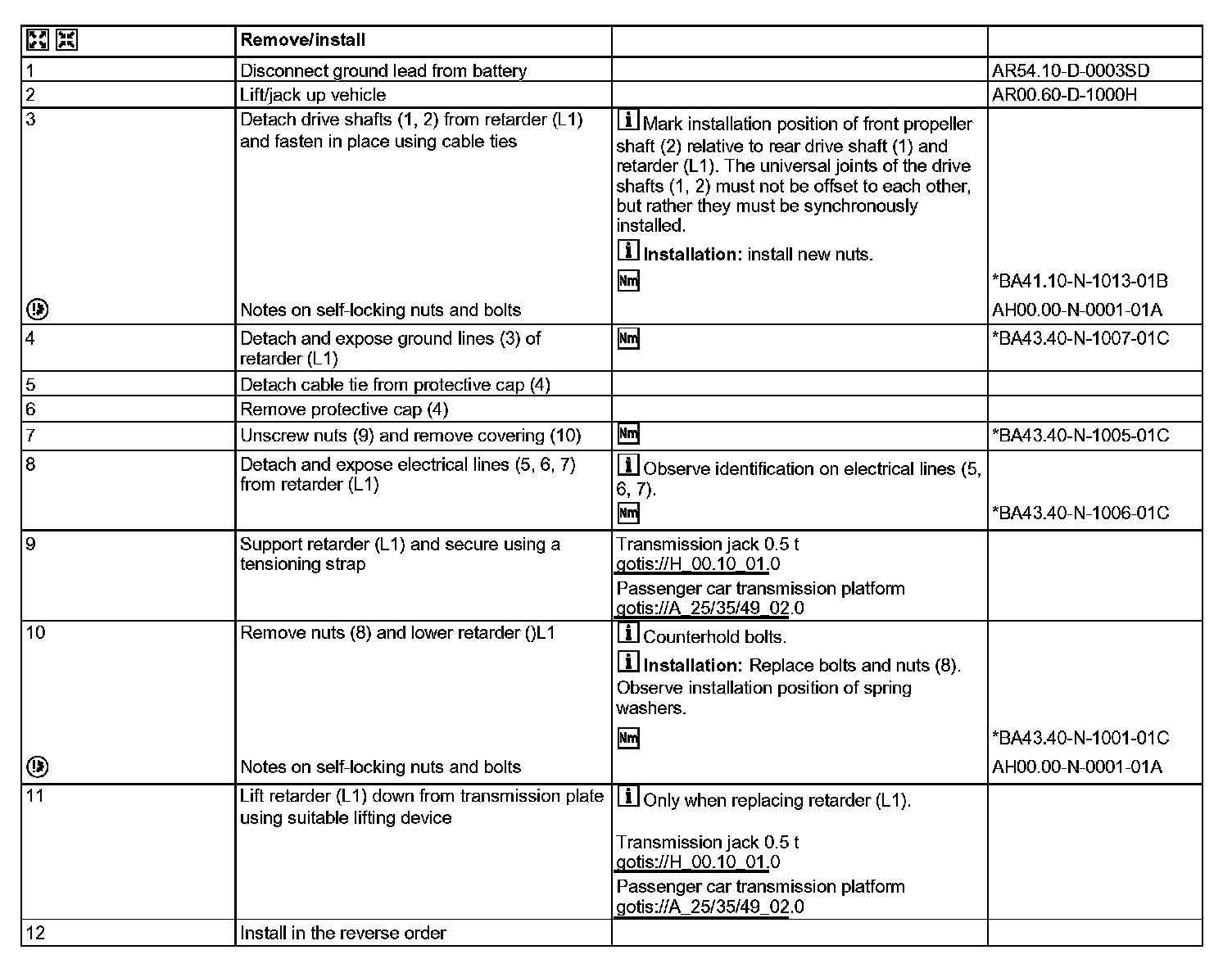

AR43.40-D-1000C Remove/Install Telma Retarder

AR43.40-D-1000C Remove/Install Telma Retarder

- with CODE (PB2) Mastercode retarder VMC





1 Propeller shaft
2 Propeller shaft
3 Ground cables
4 Protective cap
5 Electrical line (yellow-green line color)
6 Electrical line (blue line color)
7 Electrical line (brown line color)
8 Nuts
9 Nuts
10 Cover

L1 Retarder
