AR43.40-D-1500C Measure Gap

AR43.40-D-1500C Measure Gap

- with CODE (PB2) Mastercode retarder VMC

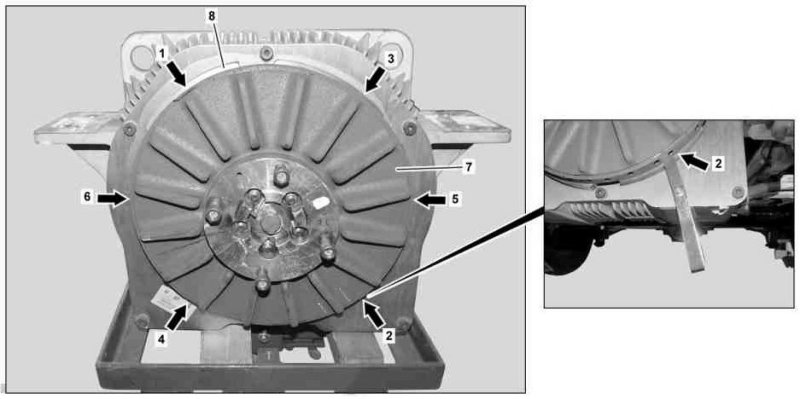

1 Measuring point 1
2 Measuring point 2
3 Measuring point 3
4 Measuring point 4
5 Measuring point 5
6 Measuring point 6
7 Rotor
8 Pole flange
