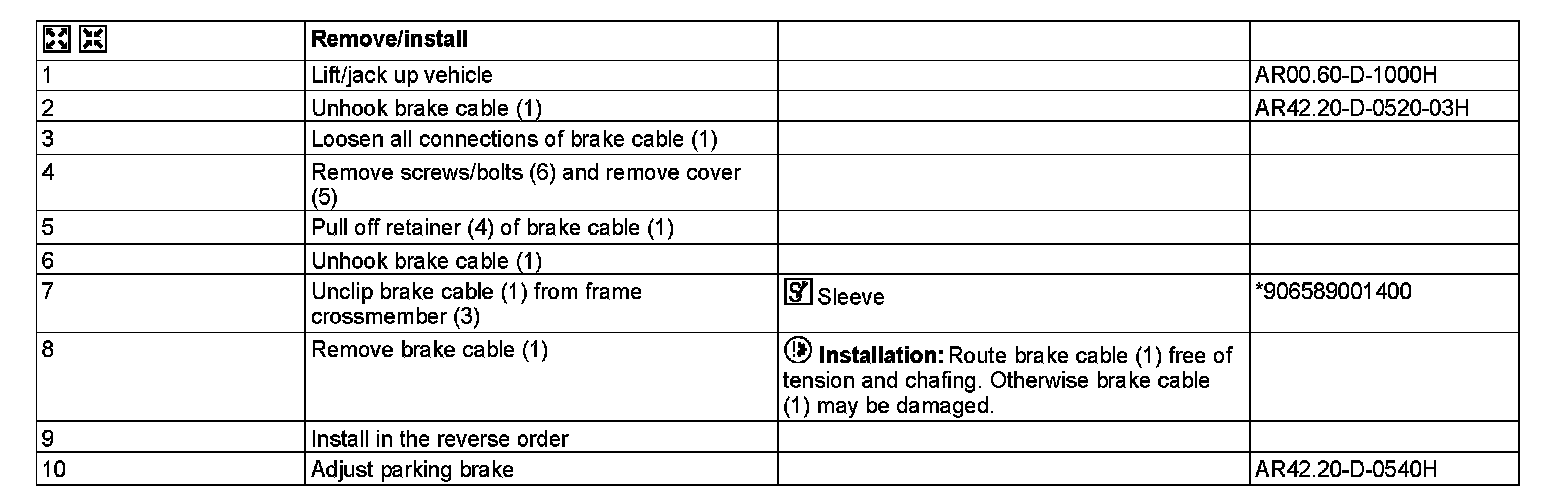

AR42.20-D-0525HA Remove/Install Rear Brake Control Cable




AR42.20-D-0525HA Remove/Install Rear Brake Control Cable

MODEL 906.15 /25 /65
- with REAR AXLE 741.413 /414 /416 /420

MODEL 900.65
- with REAR AXLE 741.413 /414 /420

MODEL 8AC906.153 /155 /655 /657
- with REAR AXLE 741.429
- with CODE (ZL3) National version for Latin America

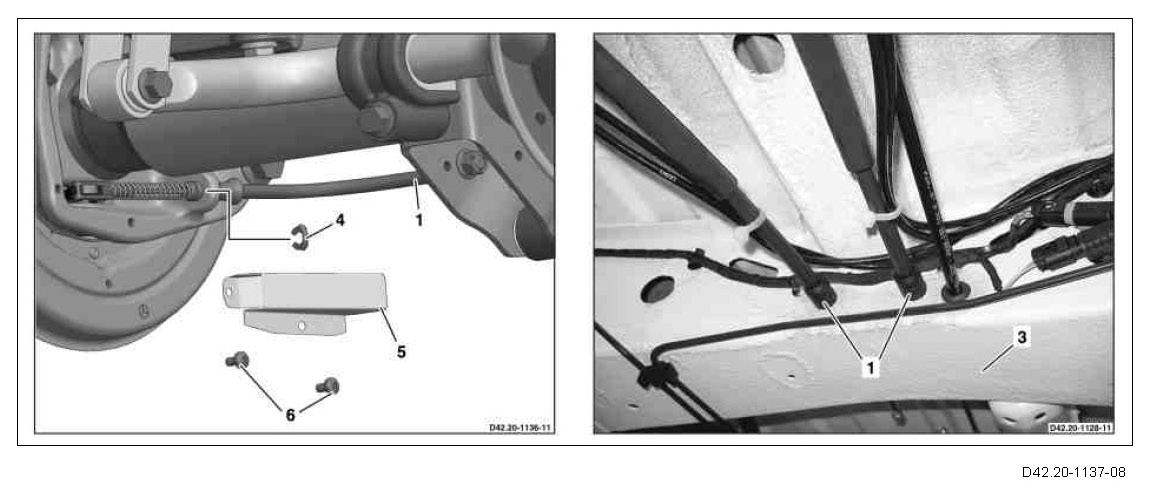

1 Brake cables
3 Frame crossmember
4 Fuse
5 Cover
6 Bolts






906 589 00 14 00, Sleeve
