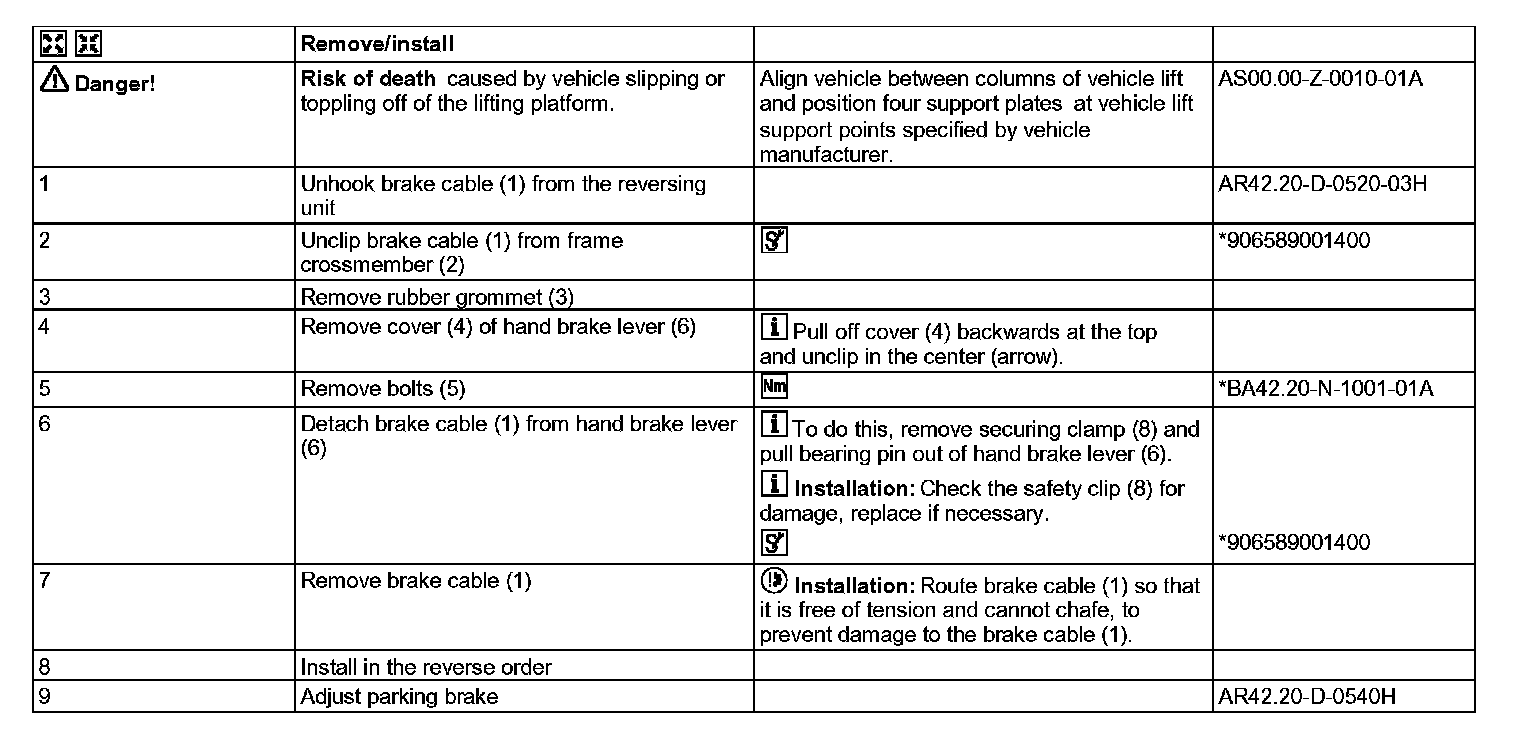

AR42.20-D-0520H Remove/Install Front Brake Control Cable




AR42.20-D-0520H Remove/Install Front Brake Control Cable

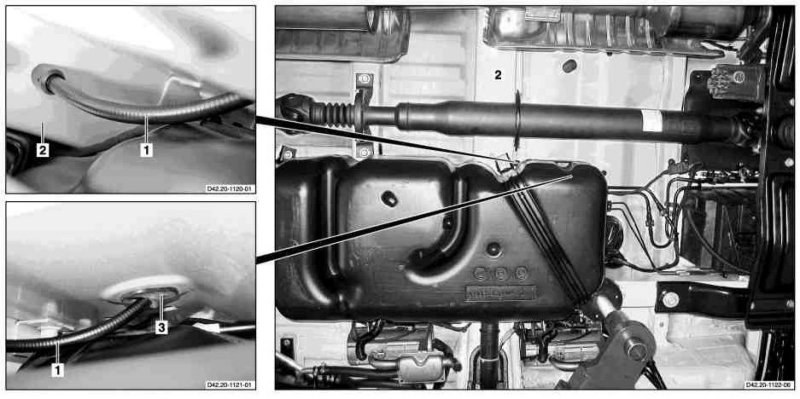

1 Brake cable
2 Frame crossmember
3 Rubber grommet

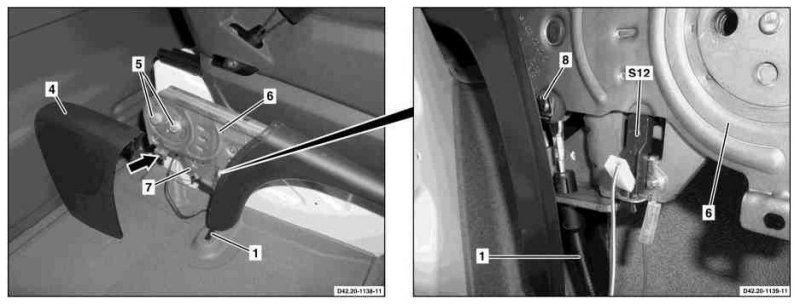

1 Brake cable
4 Trim

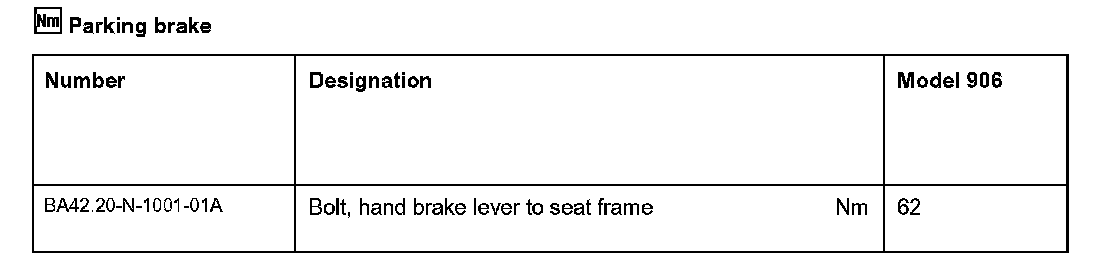

5 Bolts
6 Hand brake lever
8 Securing clamp

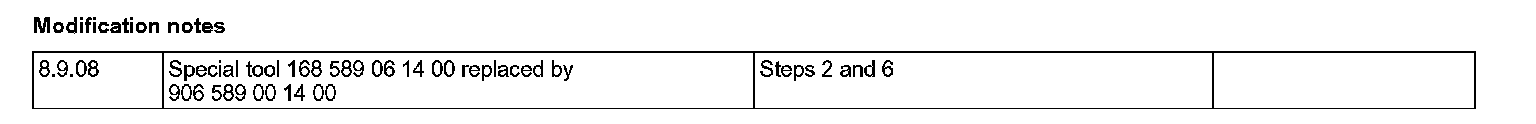

906 589 00 14 00
Sleeve
