Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Brakes and Traction Control >> Hydraulic System >> Testing and Inspection

Hydraulic System: Testing and Inspection

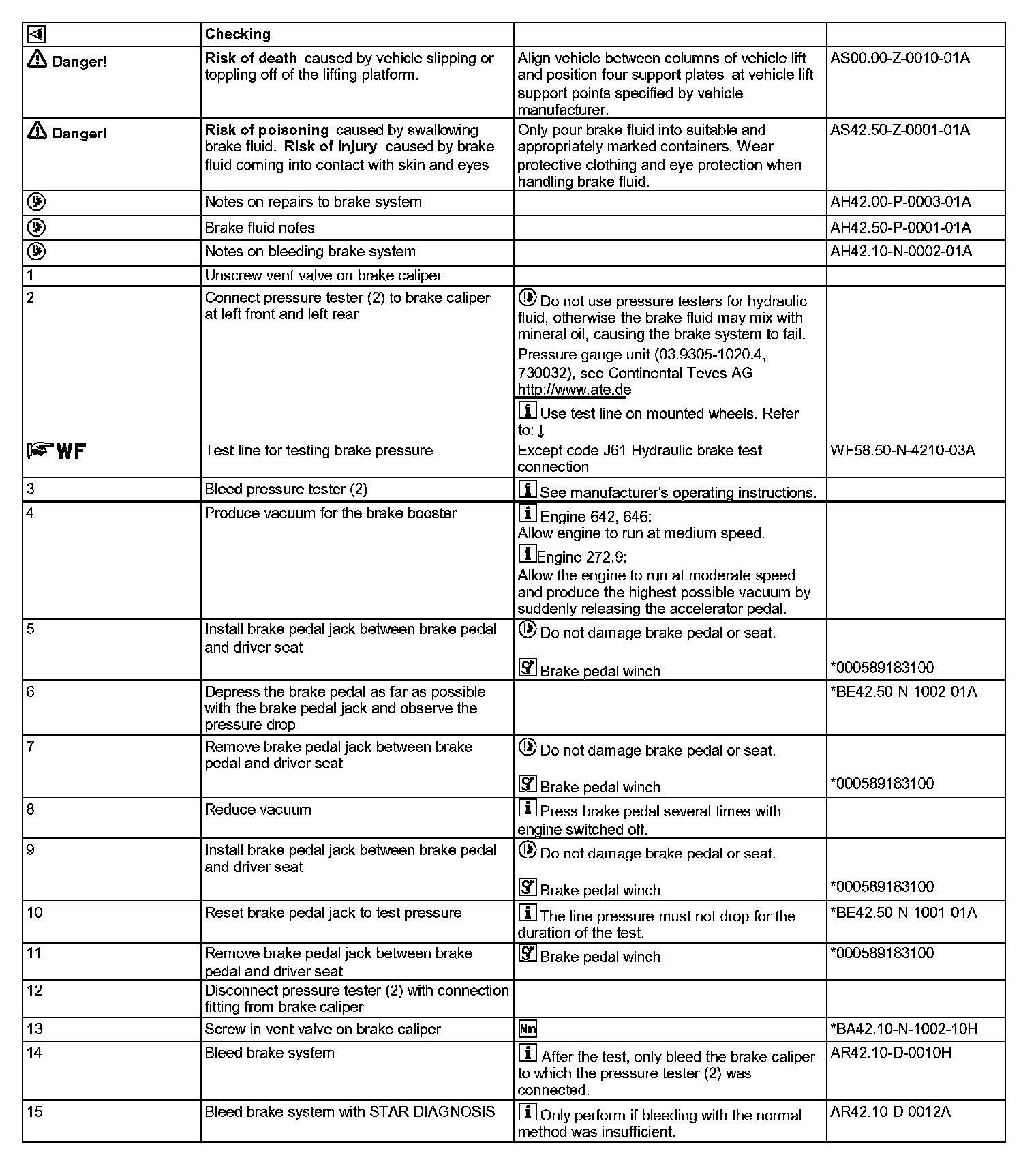

AR42.10-D-0015H Test Brake System With Pressure Tester For Leaks






2 Pressure tester














000 589 18 31 00
Brake pedal winch
