AR42.10-D-1700H Removing, Checking and Installing Rear Axle Brake Pads

AR42.10-D-1700H Removing, Checking and Installing Rear Axle Brake Pads
- MODEL 906 with REAR AXLE 741.412 /413 /414 /415 /416 /417 /420

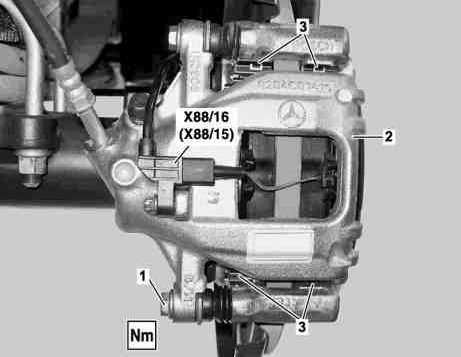

Shown on model 906.633 with rear axle 741.412

Illustration valid for model 906.11/13/21/23/61/63/71/73

1 Screw
2 Brake caliper
3 Anti-rattle spring

X88/15 Right rear brake pad contact sensor connector
X88/16 Left rear brake pad contact sensor connector

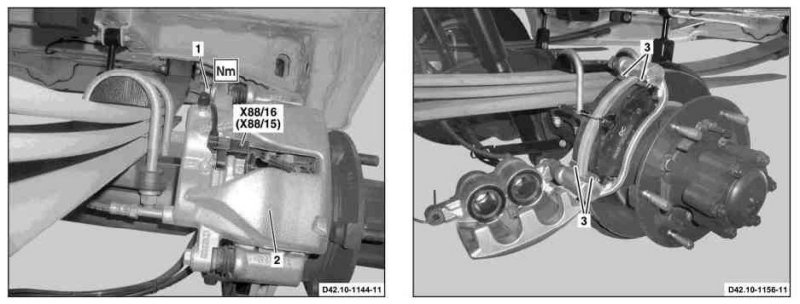

Shown on model 906.655 with rear axle 741.414

Illustration valid for model 906.15/25/65

1 Screw
2 Brake caliper
3 Anti-rattle spring

X88/15 Right rear brake pad contact sensor connector
X88/16 Left rear brake pad contact sensor connector




















000 589 26 68 00
Brake caliper brush





000 589 52 43 00
Pusher tool





140 589 00 19 00
Vernier caliper
