AR42.10-D-1700H Removing, Checking And Installing Rear Axle Brake Pads
AR42.10-D-1700H Removing, Checking And Installing Rear Axle Brake Pads
MODEL 906
- with REAR AXLE 741.412 /413 /414 /415 /416 /417 /420
MODEL 900
- with REAR AXLE 741.415 /413 /414 /420
MODEL 8AC906.133 /631 /633 /635
- with REAR AXLE 741.428
- with CODE (ZL3) National version for Latin America
MODEL 8AC906.153 /155 /655 /657
- with REAR AXLE 741.429
- with CODE (ZL3) National version for Latin America

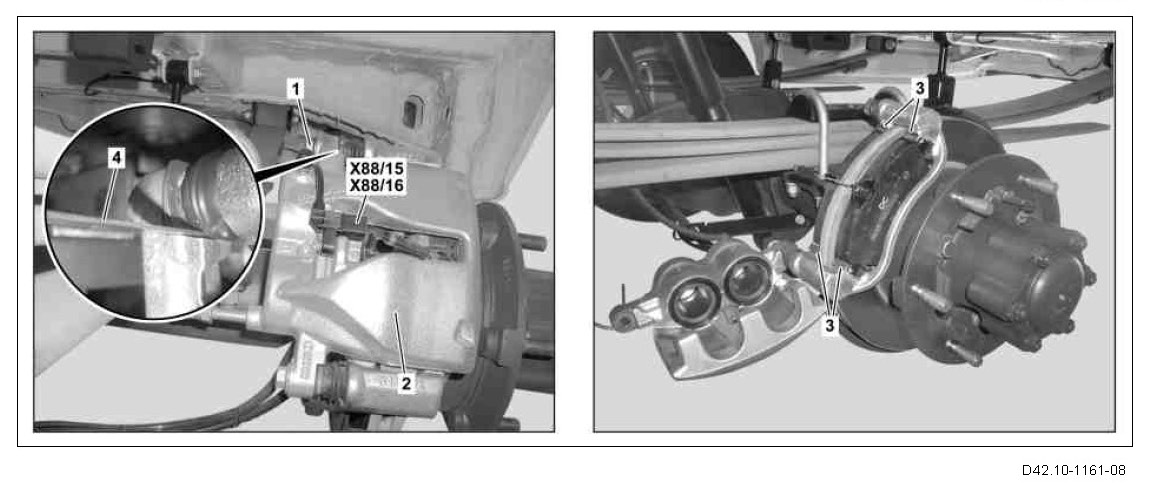

Model 900.63, 906.11/13/21/23/61/63/71/73, Shown on model 906.633 with rear axle 741.412
1 Screw
2 Brake caliper
3 Anti-rattle spring
4 Feeler gauge
X88/15 Right rear brake pad contact sensor connector
X88/16 Left rear brake pad contact sensor connector

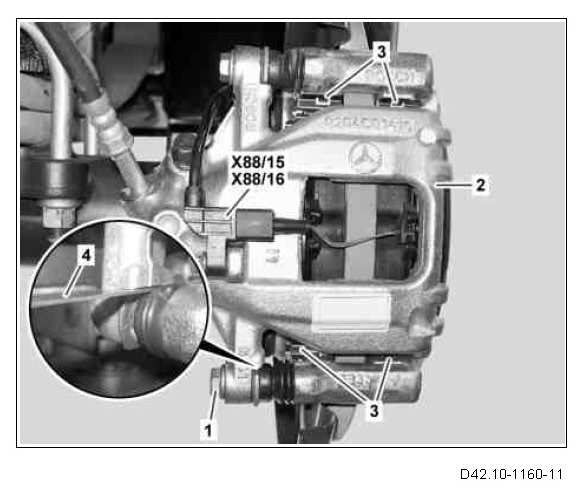

Model 900.65, 906.15/25/65, Shown on model 906.655 with rear axle 741.414
1 Screw
2 Brake caliper
3 Anti-rattle spring
4 Feeler gauge
X88/15 Right rear brake pad contact sensor connector
X88/16 Left rear brake pad contact sensor connector
000 589 26 68, Brake caliper brush
000 589 52 43 00, Pusher tool
140 589 00 19 00, Vernier caliper
