Brakes and Traction Control: Adjustments

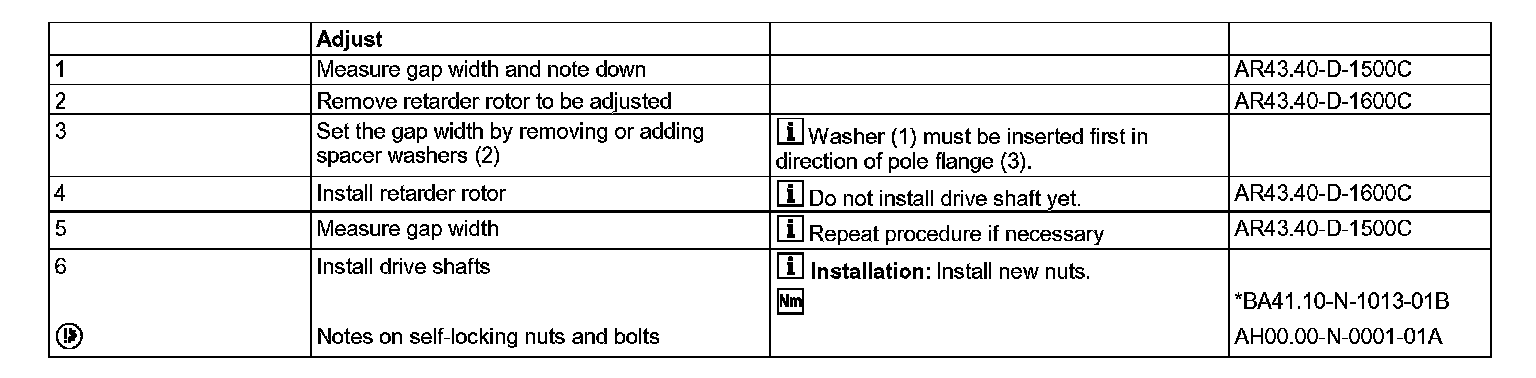

AR43.40-D-1400C Adjust Gap

- with CODE (PB2) Mastercode retarder VMC





1 Washer
2 Spacer rings
3 Pole flange
