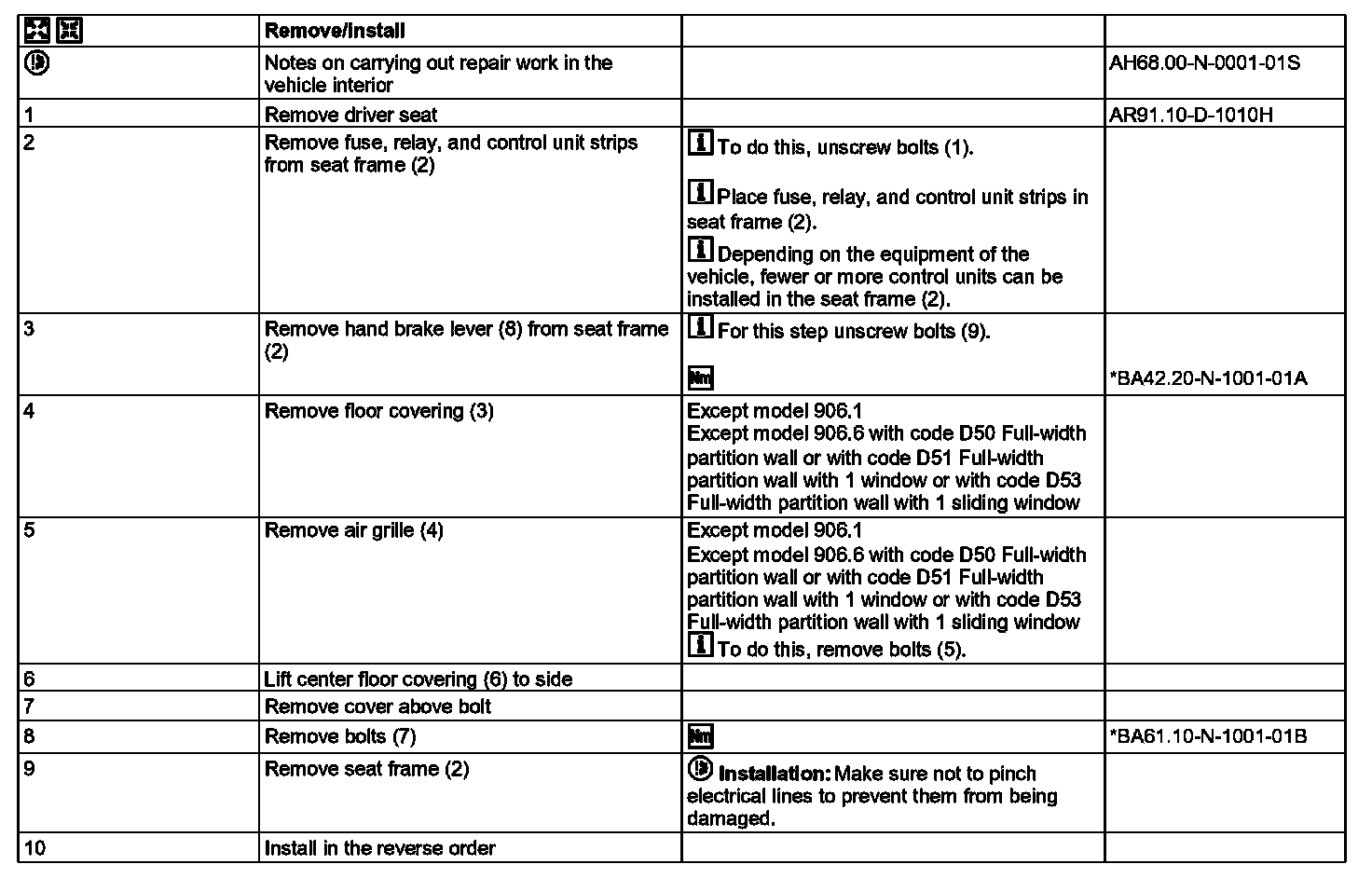

AR91.10-D-3520H Remove/Install Seat Frame

AR91.10-D-3520H Remove/Install Seat Frame

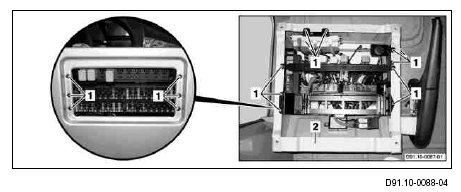

Driver-side







1 Bolts
2 Seat frame







Shown on model 906.635

2 Seat frame
3 Floor Covering
4 Air grille
5 Bolts
6 Center floor covering
7 Bolts
8 Hand brake lever
9 Bolts
