AR91.10-D-1035A Remove/Install Front Passenger Bench Seat

AR91.10-D-1035A Remove/Install Front Passenger Bench Seat

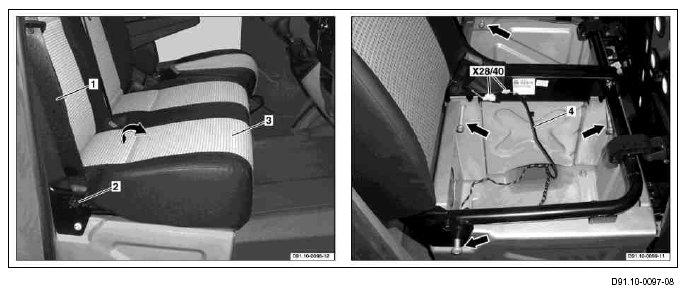

- with CODE (S23) Two-seater front passenger seat







1 Seat belt
2 Belt end fitting
3 Seat cushion
4 Connecting cable
X28/40 Center front passenger GUS connector
