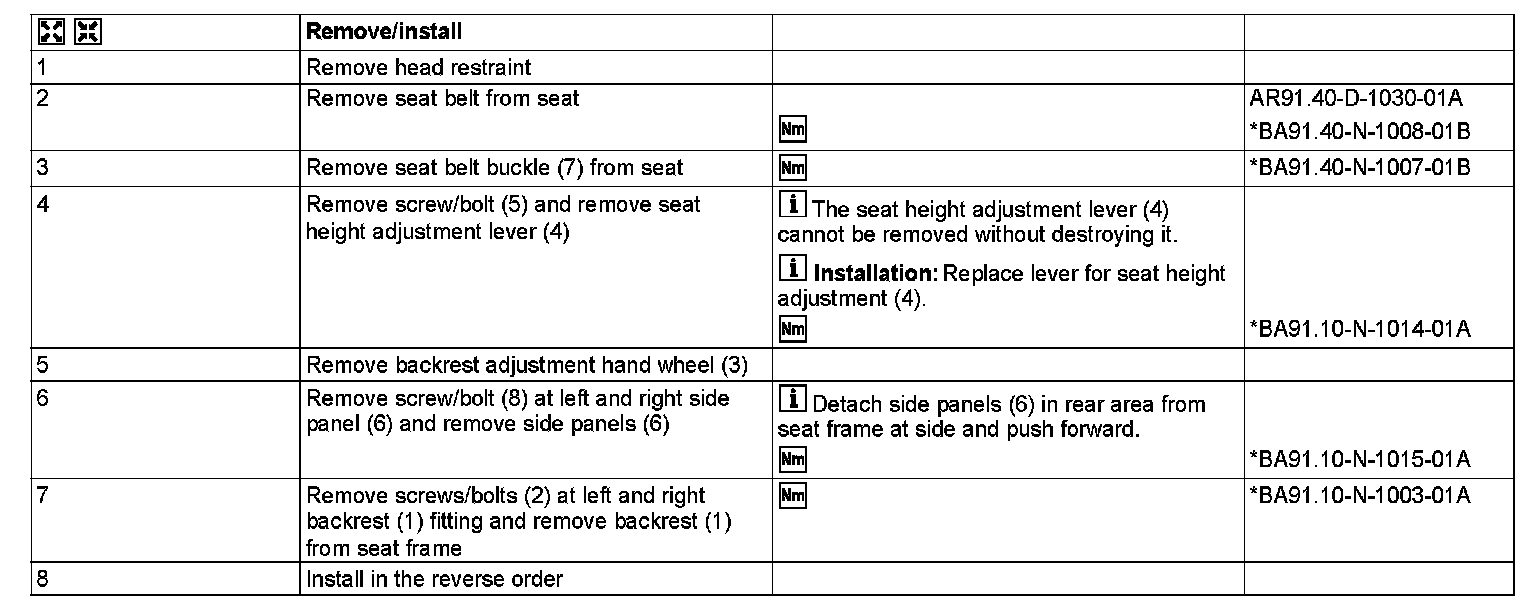

AR91.10-D-3325B Remove/Install Backrest

AR91.10-D-3325B Remove/Install Backrest

MODEL 900, 906.1 /2 /6 /7
- Standard version driver seat, front passenger individual seat

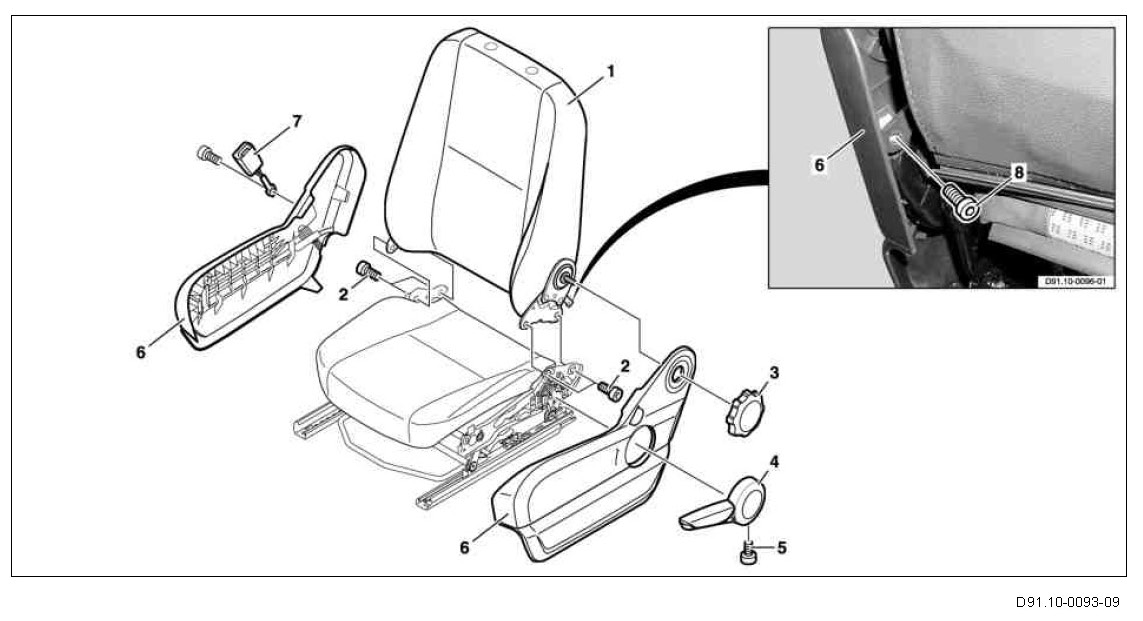

1 Backrest
2 Screw
3 Backrest adjustment hand wheel
4 Seat height adjustment lever
5 Screw
6 Side paneling
7 Seat belt buckle
8 Screw
