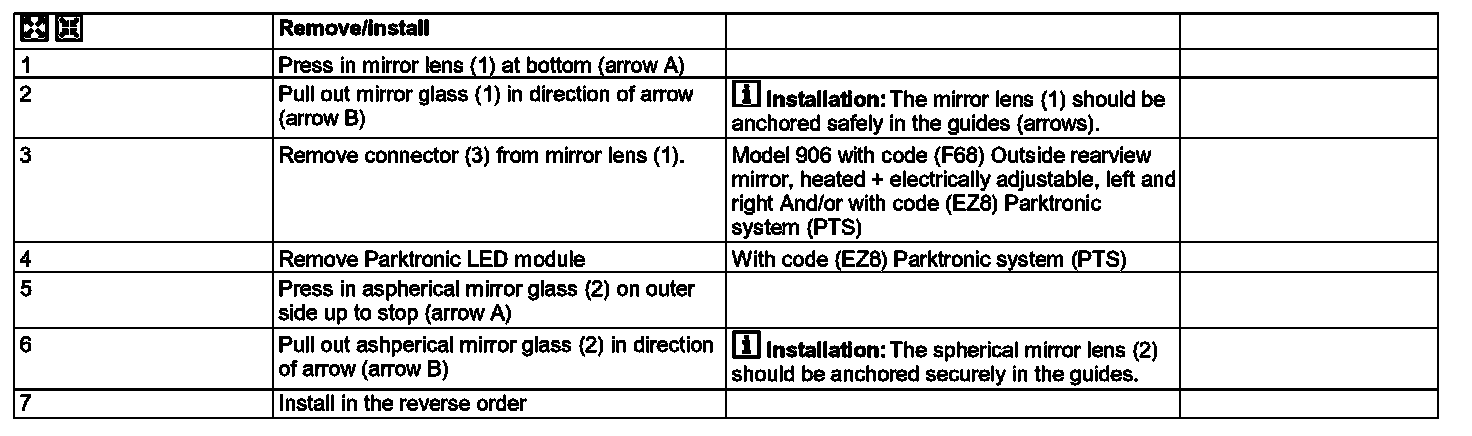

AR88.70-D-9020B Remove/Install Mirror Glass




AR88.70-D-9020B Remove/Install Mirror Glass

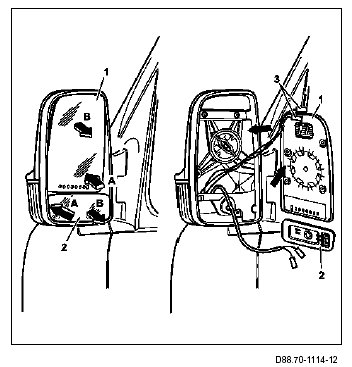

Up to production date 29.03.2010

1 Mirror glass
2 Mirror lens for aspherical mirror
3 Plug connector

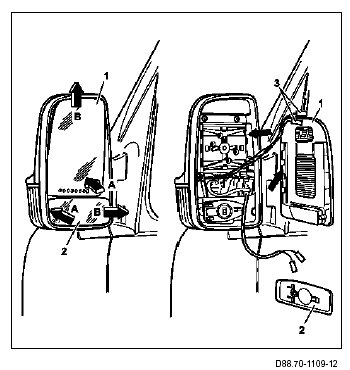

As of production date 30.03.2010

1 Mirror glass
2 Mirror lens for aspherical mirror
3 Plug connector
