Overhaul

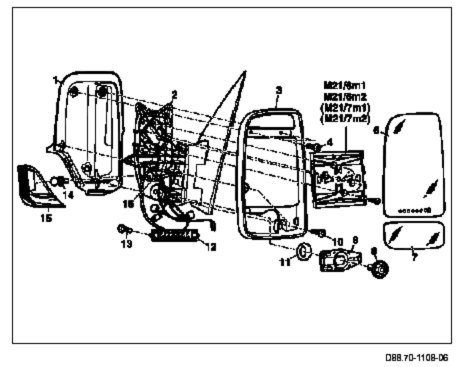

AR88.70-D-3221A Disassemble, Assemble Rearview Mirror

- with CODE (F68) Heated and electrically adjustable left and right outside rearview mirrors







1 Mirror cover
2 Mirror holder
3 Mirror frame
6 Mirror lens
7 Mirror lens for aspherical mirror
8 Plastic nuts
9 Mirror mount
11 Intermediate disk
12 Parktronic LED module
14 Bulb
15 Additional turn signal lamp lens
16 Wiring harness
M21/6m1 Mirror up/down adjustment motor
M21/6m2 Mirror in/out adjustment motor
M21/7m1 Mirror up/down adjustment motor
M21/7m2 Mirror in/out adjustment motor
