GF88.79-D-4111H Outside Mirror Adjustment Motor, Component Description

GF88.79-D-4111H Outside Mirror Adjustment Motor, Component Description

- with CODE (F68) Heated and electrically adjustable left and right outside mirrors

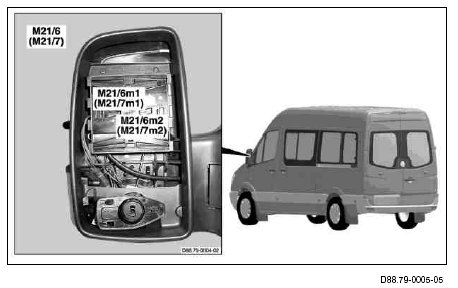

Illustrated on left side of vehicle

M21/6 Driver-side outside mirror
M21/6m1 Mirror up/down adjustment motor
M21/6m2 Mirror in/out adjustment motor
M21/7 Passenger-side outside mirror
M21/7m1 Mirror up/down adjustment motor
M21/7m2 Mirror in/out adjustment motor


Location

The mirror up/down adjustment motor and the mirror in/out adjustment motor are located in the housing of the driver-side outside mirror and in the housing of the passenger-side outside mirror.

Task

The left outside mirror lens is adjusted vertically or horizontally with the mirror up/down adjustment motor and the mirror in/out adjustment motor in the driver-side outside mirror.

The right outside mirror lens is adjusted vertically and horizontally with the mirror up/down adjustment motor and the mirror in/out adjustment motor in the passenger-side outside mirror.
