GF88.79-D-4110H Outside Mirror Adjustment Switch, Component Description

GF88.79-D-4110H Outside Mirror Adjustment Switch, Component Description

- with CODE (F68) Heated and electrically adjustable left and right outside mirrors

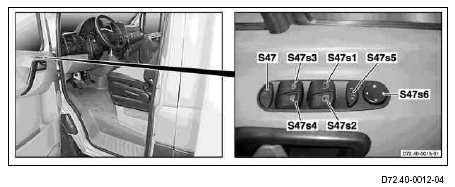

Shown with code (W32) Electric vent windows in rear passenger compartment

S47 Driver door control panel
S47s1 Driver power window button
S47s2 Front passenger power window button
S47s5 Left/right outside mirror switch
S47s6 Outside mirror adjustment rocker switch

Location

The left/right outside mirror switch and the outside mirror adjustment rocker switch are integrated into the driver door control panel located inside on the driver door.

Task

When the left/right outside mirror switch is in the left position, the driver-side outside mirror (M21/6) is adjusted; or when in the right position, the front passenger-side outside mirror (M21/7) is adjusted. The mirror lens on the driver-side outside mirror or on the passenger-side outside mirror can then be adjusted vertically or horizontally with the outside mirror adjustment rocker switch depending on the mirror selected.
