Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Body and Frame >> Grille >> Service and Repair >> AR88.00-D-2115SD Remove/Install Front Grille

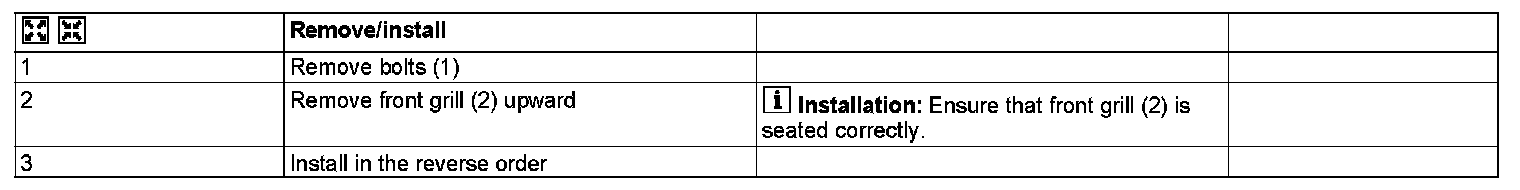

AR88.00-D-2115SD Remove/Install Front Grille




AR88.00-D-2115SD Remove/Install Front Grille

- except CODE (ZX8) Dodge brand scope
- except CODE (ZX9) Freight liner (FTL) brand scope

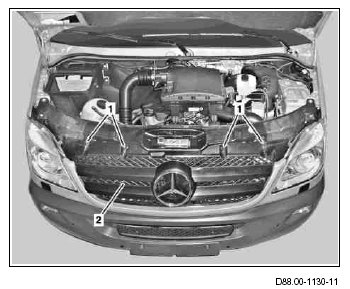

1 Bolts
2 Grill
