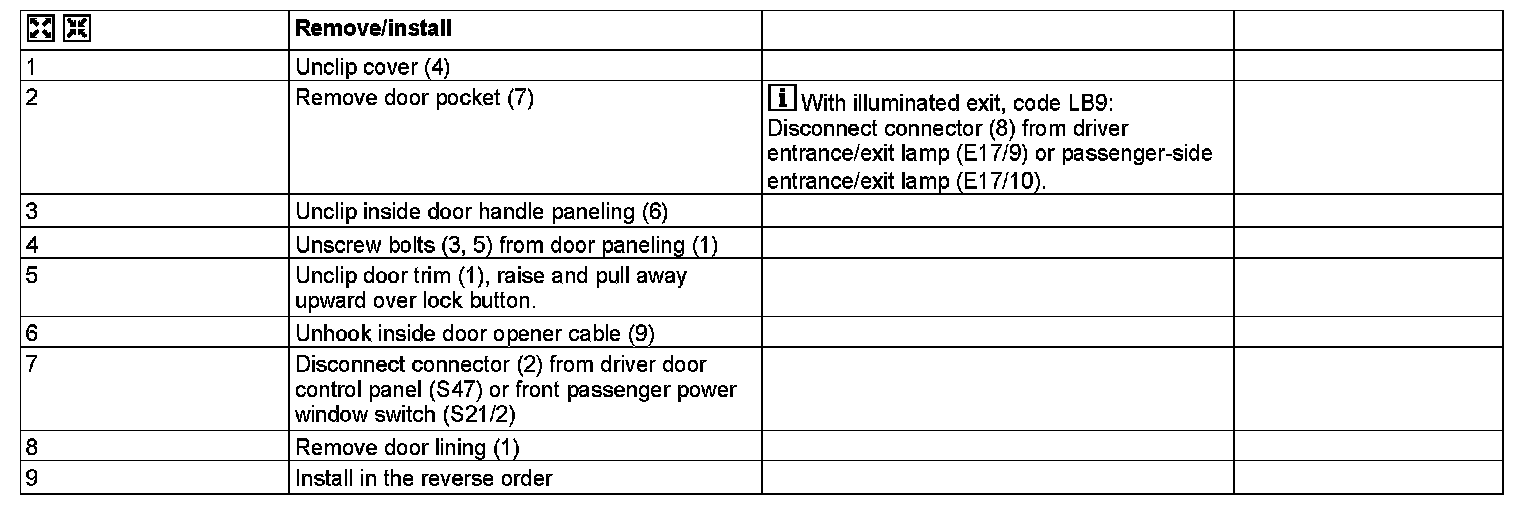

AR72.15-D-2150E Remove/Install Door Lining on Hinged Door

AR72.15-D-2150E Remove/Install Door Lining On Hinged Door








1 Door trim
2 Plug connector
3 Bolts
4 Cover
5 Bolt
6 Inside door handle paneling
7 Door pocket
8 Plug connector
9 Inside door opener cable
10 Cap for inner door lock
E17/9 Driver entrance/exit lamp
E17/10 Front passenger entrance/exit lamp
S21/2 Front passenger power window switch
S47 Driver door control panel
