Front Door Limiter: Service and Repair

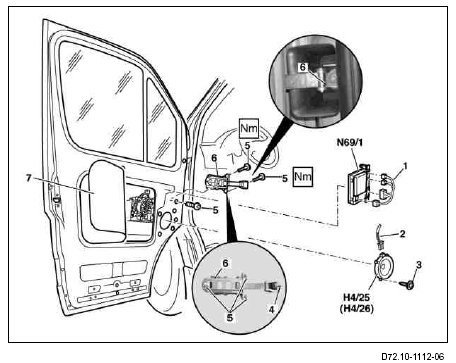

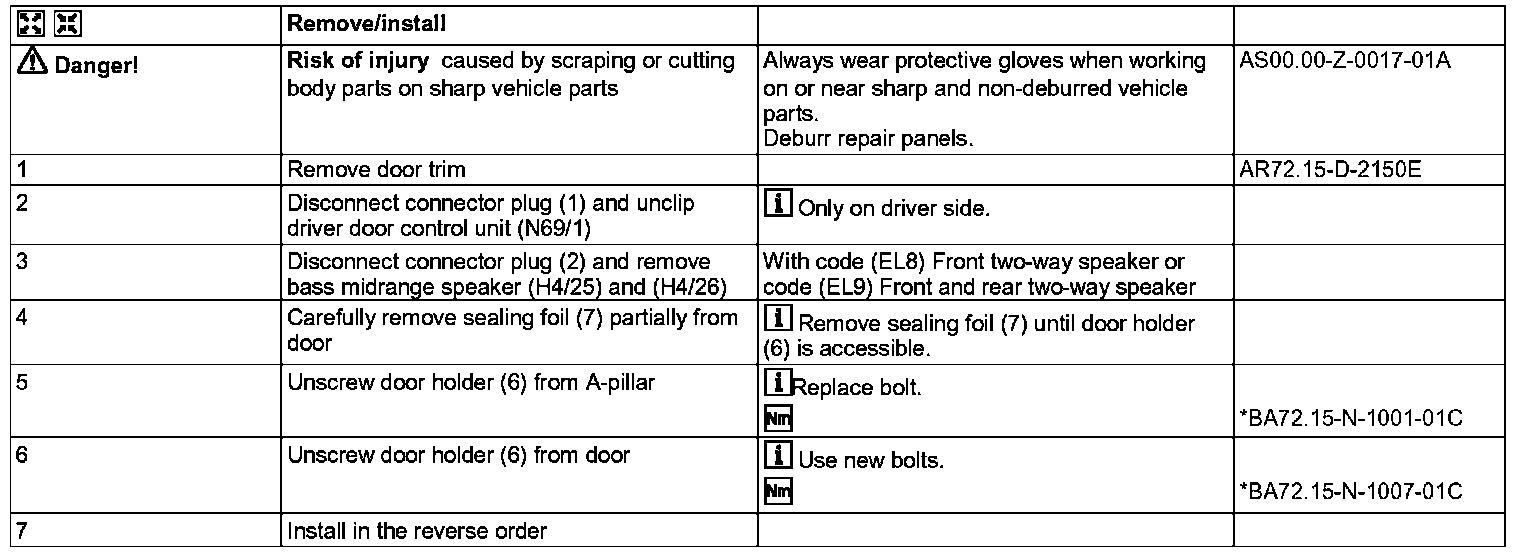

AR72.10-D-2100D Remove/install door holder








1 Plug connector
2 Plug connector
3 Screw
4 Screw
5 Bolts
6 Door holder
7 Sealing foil
H4/25 Bass midrange speaker
H4/26 Bass midrange speaker
N69/1 Driver door control unit
