AR72.15-D-1021-02B Adjust Installation Depth of Hinged Door

AR72.15-D-1021-02B Adjust Installation Depth Of Hinged Door












1. Loosen screws (2).
2. Adjust installation depth by horizontally adjusting striker pin.
Adjust door with a protrusion of 0.2 mm to max. 1 mm.It is necessary to maintain the slight protrusion at the rear, so that the door does not cant on the B-pillar in the event of a crash. Rotary tumbler should engage in the center of the locking eye.

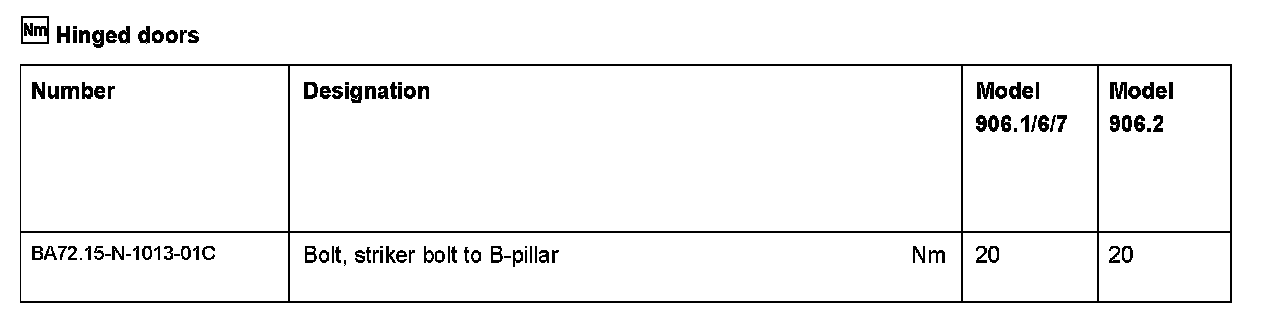

3. Tighten bolts (2).
