Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Body and Frame >> Cowl >> Service and Repair >> AR62.40-D-6025H Remove/Install Waist Rail Paneling

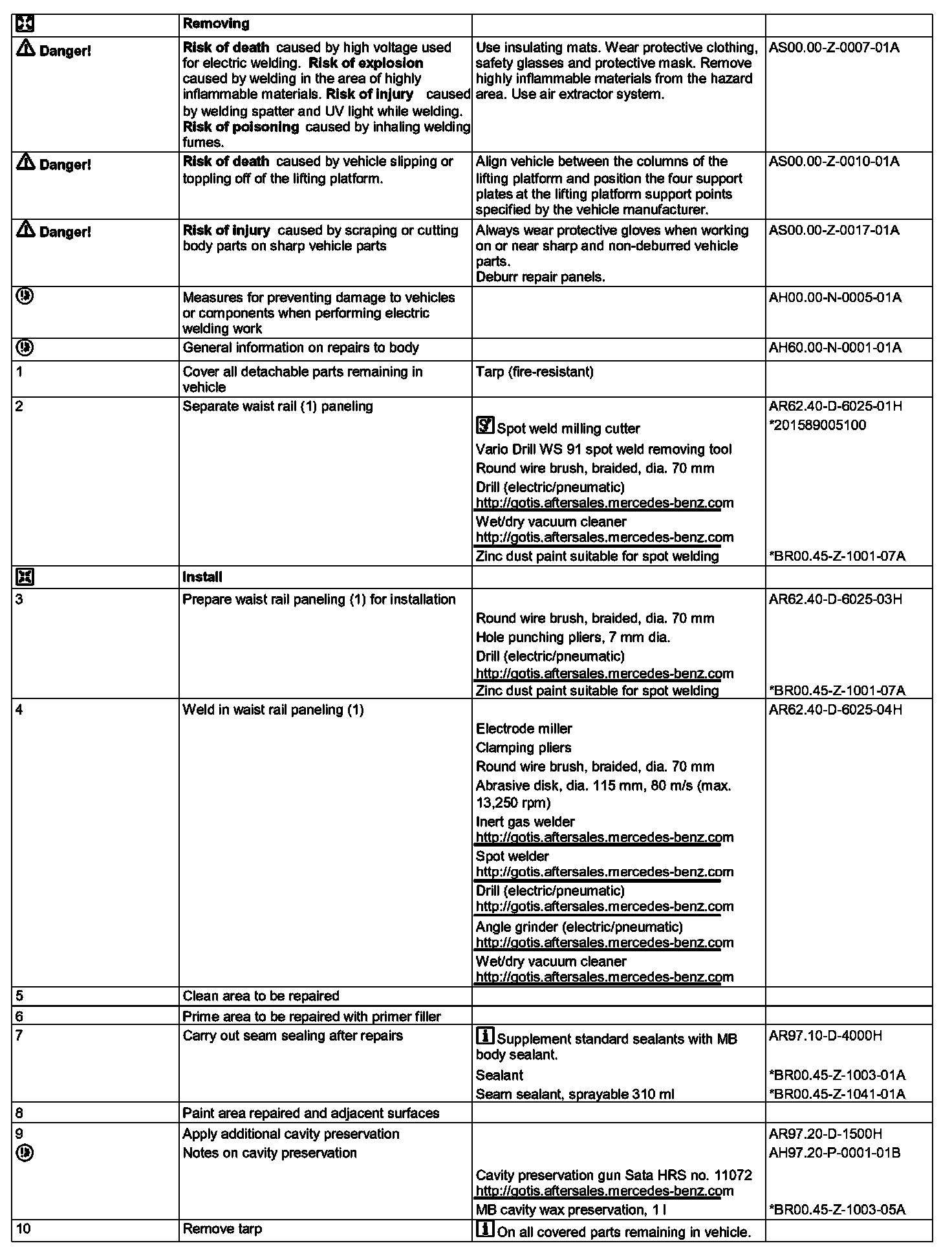

AR62.40-D-6025H Remove/Install Waist Rail Paneling




AR62.40-D-6025H Remove/Install Waist Rail Paneling

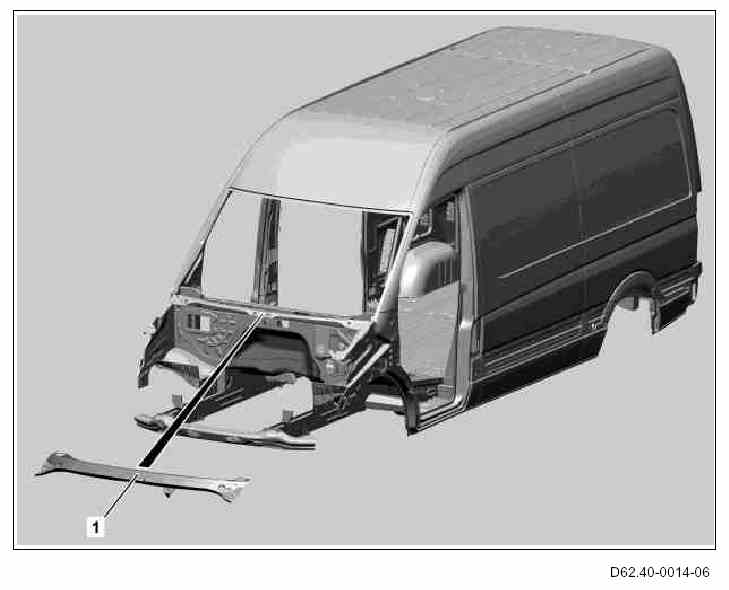

Illustrated on model 906.633

1 Waist rail paneling







201 589 00 51 00, Spot weld milling cutter
