AR62.40-D-6025-01H Separating Waist Rail Paneling

AR62.40-D-6025-01H Separating Waist Rail Paneling

201 589 00 51 00, Spot weld milling cutter





















The following steps are shown on model 906.633.

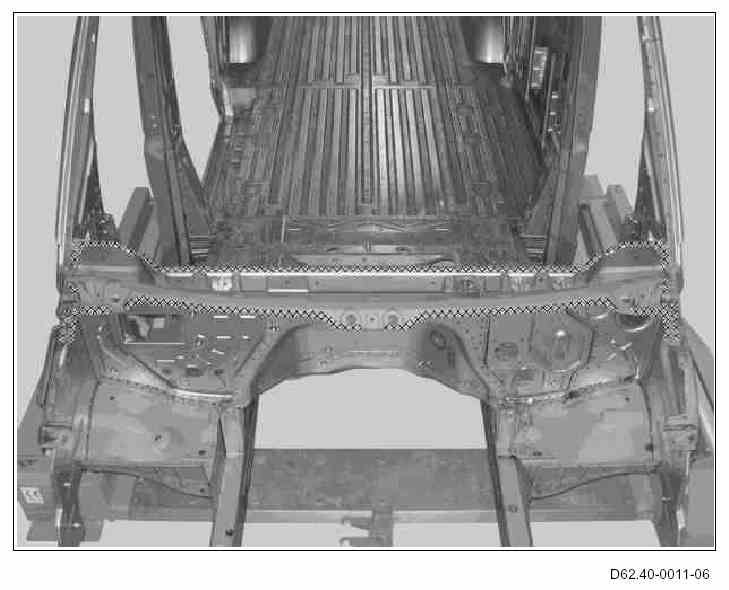

1. Expose spot welds on dash support paneling (1) (areas A, B, C and D).

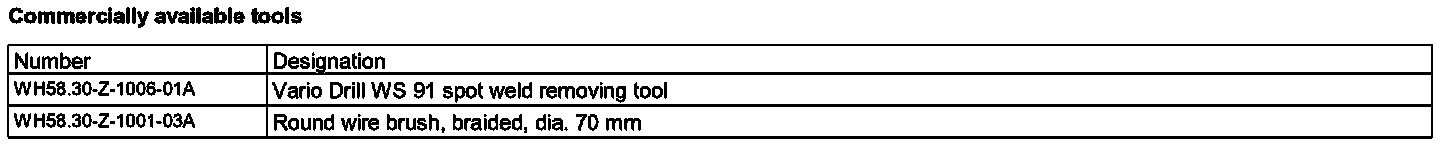

2. Cut out spot welds on dash support paneling (1) using spot weld milling cutter or Vario Drill spot weld removing tool (areas A, B, C and D).
3. Remove damaged dash support paneling (1).







4. Grind cross-hatched areas down to bare metal using round wire brush.

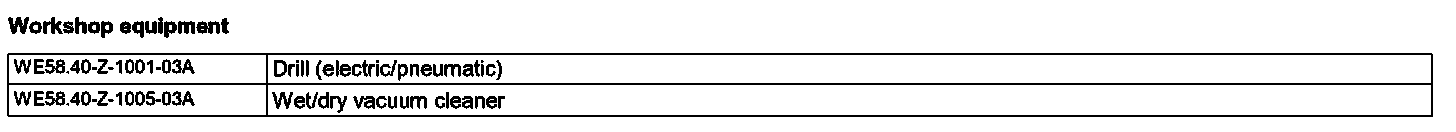

5. Remove grinding and drill shavings using wet/dry vacuum cleaner.

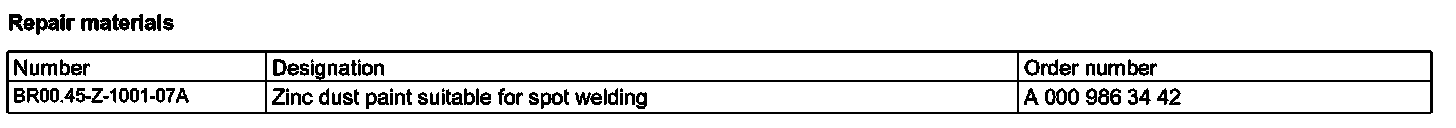

6. Coat insides of spot weld flanges with zinc dust paint.
