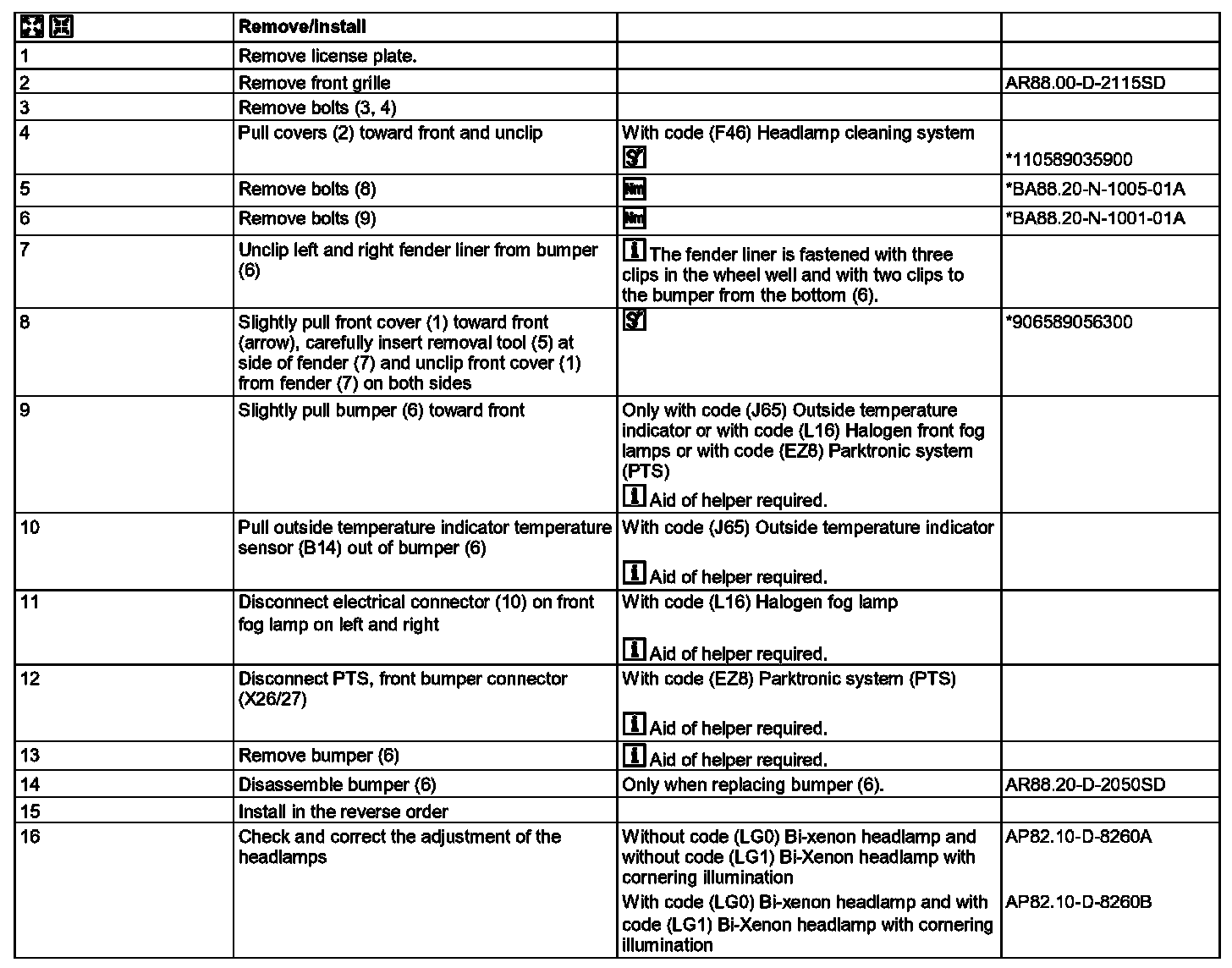

AR88.20-D-2000SD Remove/Install Front Bumper

AR88.20-D-2000SD Remove/Install Front Bumper

- except CODE (ZX8) Dodge brand scope
- except CODE (ZX9) Freightliner (FTL) brand scope

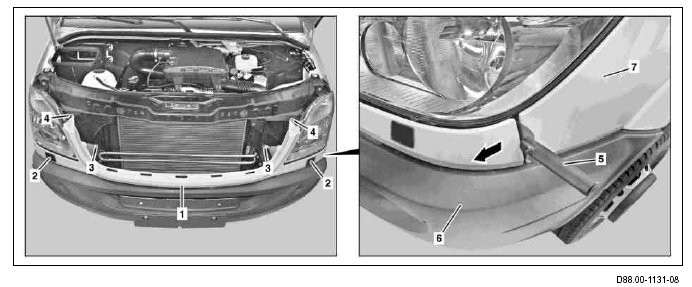

1 Front cover
2 Cover (with code (F46) Headlamp cleaning system)
3 Screw
4 Screw
5 Detaching tool
6 Bumper
7 Fenders

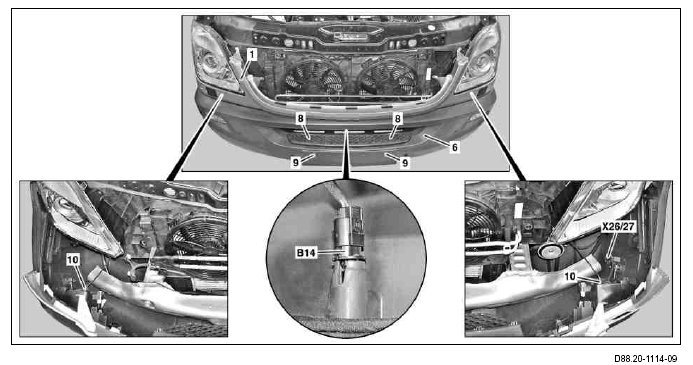

1 Front cover
6 Bumper
8 Screw
9 Screw
10 Electrical connector (with code (L16) Halogen front fog lamps)
B14 Outside temperature indicator (with code (J65) Outside temperature indicator)
X26/27 Front bumper PTS connector (with code (EZ8) Parktronic system (PTS))










110 589 03 59 00, Mounting wedge







906 589 05 63 00, Detaching tool
