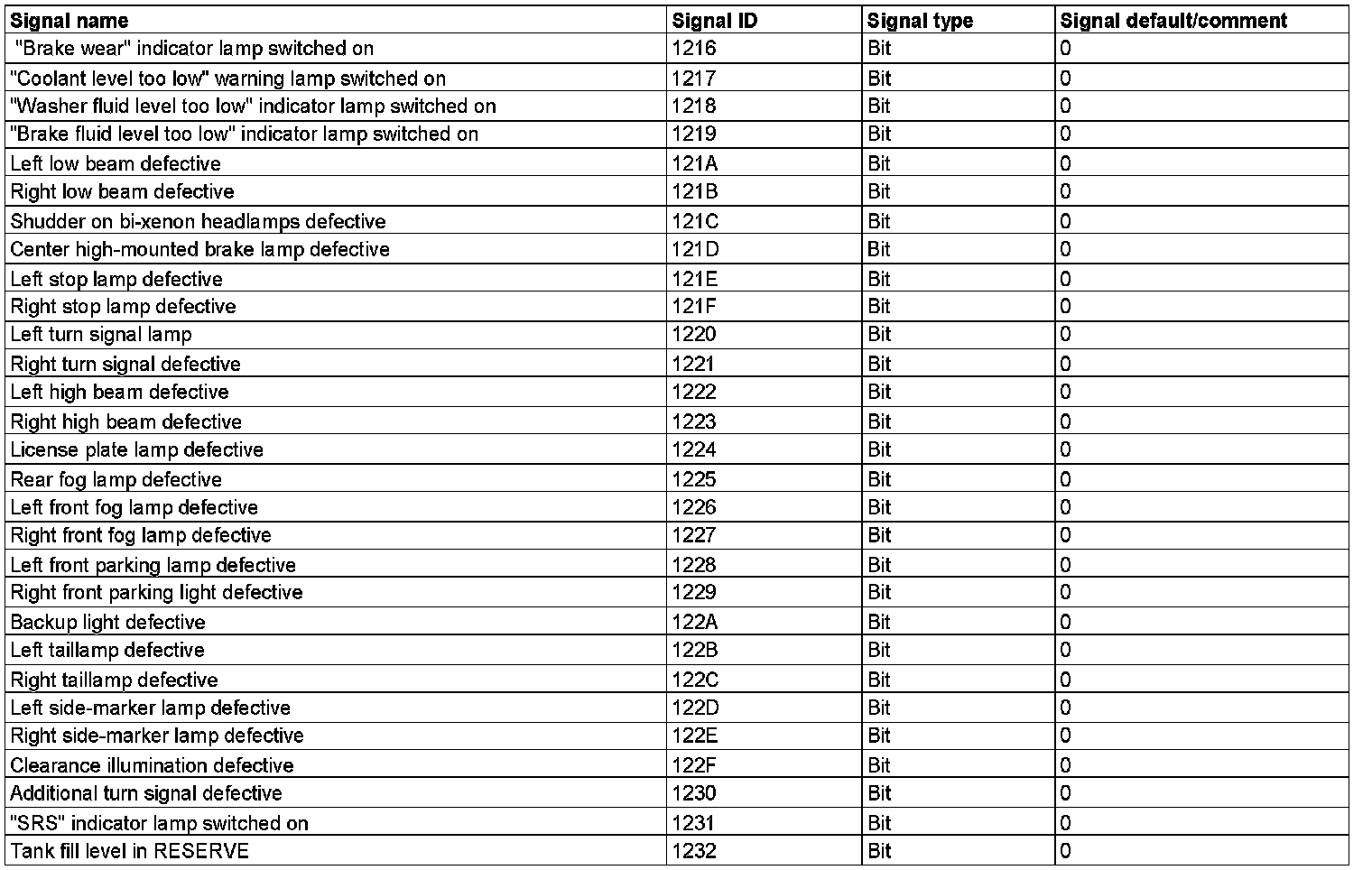

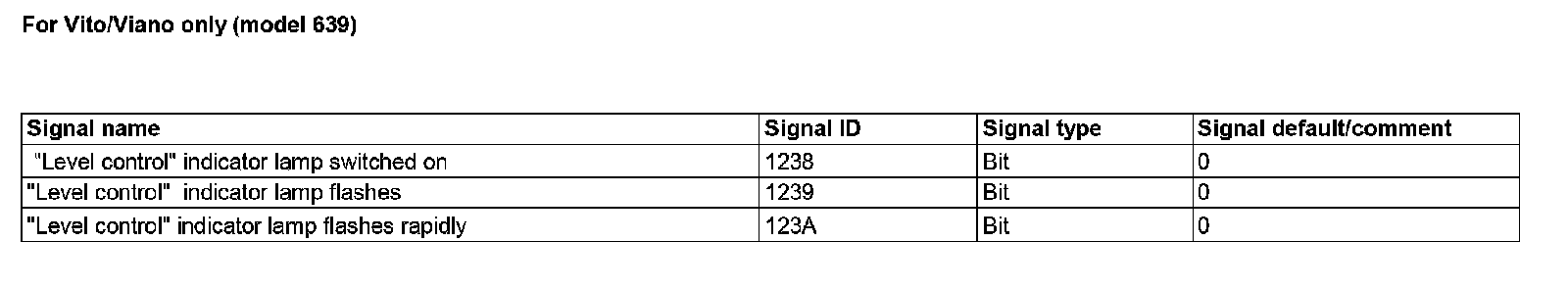

GF54.21-D-3030H Signal List For Indicators and Warning Indicators, PSM, Function




GF54.21-D-3030H Signal List For Indicators And Warning Indicators, PSM, Function

- with CODE (ED5) Parameterizable special module (PSM)


- with CODE (ED8) Preinstallation for parameterizable special module (PSM)
