AN82.60-D-0011A Retrofit Sound 5 Radio




AN82.60-D-0011A Retrofit Sound 5 Radio

- with CODE (ER0) Radio preinstallation with antenna and 2 speakers

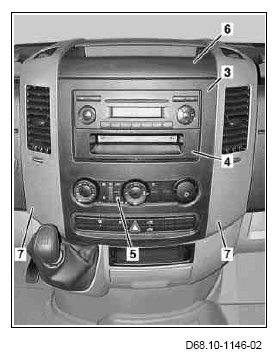

Shown on Sound 5 radio, code EN0
3 Covering
4 Stowage compartment
7 Surrounds












115 589 03 59 00, Long wedge
