AZ82.85-D-2006-02A Retrofit Bracket For Fleetboard Vehicle Computer

AZ82.85-D-2006-02A Retrofit Bracket For FleetBoard Vehicle Computer
- with CODE (ED5) Parameterizable special module (PSM)
- except CODE (FF8) 1 DIN slot at front below headliner

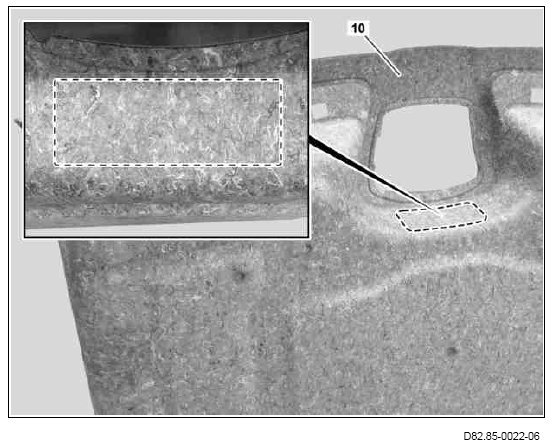

1 Use oscillating saw to make cutout in the headliner (10).
Note pre-stamped marking on headliner (10).
The headliner (10) must not fray too much at the cutting edge because the cover will not have sufficient grip.







2 Clip cover (12) into cutout on headliner (10).

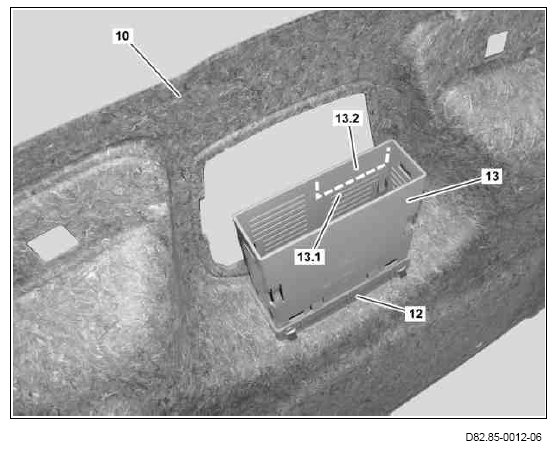

3 Insert assembly frame (DIN slot) (13).
4 Make cutout (13.2) up to third rib (13.1) in the assembly frame (DIN slot) (13).
The FleetBoard control unit wiring harness is routed through the cutout (13.2).

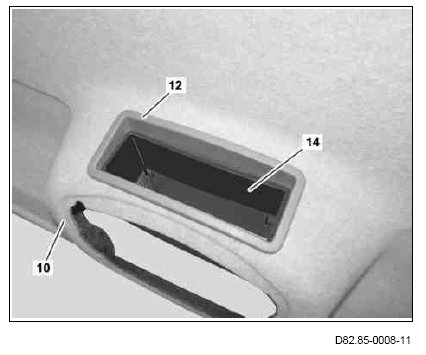

5 Insert the FleetBoard control unit mounting frame (14) through cover (12) of the headliner (10).
Lock FleetBoard control unit mounting frame (14) by bending over the tabs.
