AZ82.85-D-2006-01A Connect and Install Fleetboard Vehicle Computer

AZ82.85-D-2006-01A Connect And Install FleetBoard Vehicle Computer
- with CODE (ED5) Parameterizable special module (PSM)

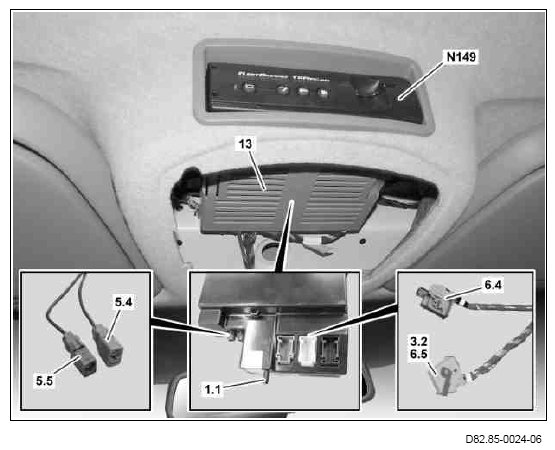

1 Connect blue 1-pin GPS antenna plug (5.4) and pink 1-pin GSM antenna plug (5.5) to FleetBoard control unit (N149).
Pay attention to color coding.

2.1 Connect white 18-pin coupling (3.2) to FleetBoard control unit (N149).
For installation without "DispoPilot.mobile+".
Pay attention to color coding.

2.2 Connect white 18-pin coupling (6.5) and blue 18-pin coupling (6.4) to the FleetBoard control unit (N149).
For installation with "DispoPilot.mobile+".
Pay attention to color coding.

3 Slide FleetBoard control unit (N149) into assembly frame (DIN slot) (13) and latch into place.
While doing so, insert stud (1.1) of FleetBoard control unit (N149) into the previously fitted grommet in the roof frame.
