AZ82.85-D-0001-16B Retrofit Fleetboard Wiring Harness

AZ82.85-D-0001-16B Retrofit FleetBoard Wiring Harness
- with CODE (ED5) Parameterizable special module (PSM)
- with CODE (JD1) EU digital tachograph
- with CODE (JD2) EU digital tachograph with rpm and additional recorder


220 589 04 99 00, new passenger vehicle wiring harness repair kit







000 589 13 99 00, Wiring harness repair kit, basic

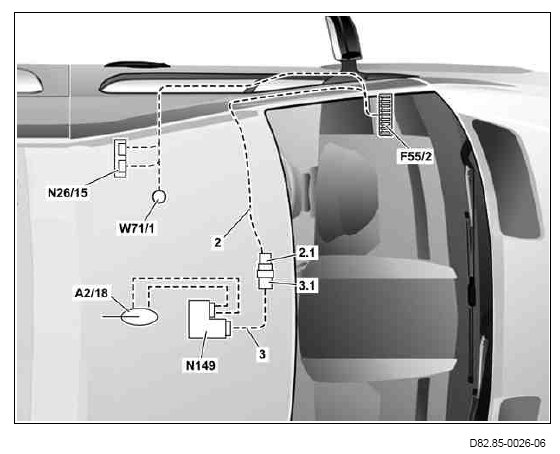

Routing diagram, shown without "DispoPilot.mobile+"
2 FleetBoard wiring harness
2.1 15-pin coupling
3 FleetBoard control unit wiring harness
3.1 15-pin connector
A2/18 Antenna amplifier
F55/2 Fuse block (9 fuses)
N26/15 PSM control unit
N149 FleetBoard control unit
W71/1 Driver seat frame ground point 1

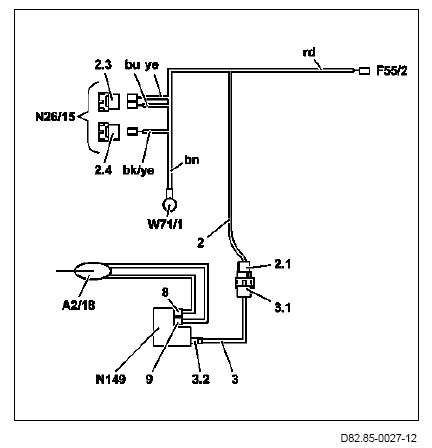

Connection diagram (without "DispoPilot.mobile+")
2 FleetBoard wiring harness
2.1 15-pin coupling
2.3 Black 21-pin coupling
2.4 White 21-pin coupling
3 FleetBoard control unit wiring harness
3.1 15-pin connector
3.2 White 18-pin coupling
8 GPS antenna plug socket
9 GSM antenna plug socket
bk/ye Black/yellow line
bn Brown line
bu Blue line
rd Red line
ye Yellow line
A2/18 Antenna amplifier
F55/2 Fuse block (9 fuses)
N26/15 PSM control unit
N149 FleetBoard control unit
W71/1 Driver seat frame ground point 1

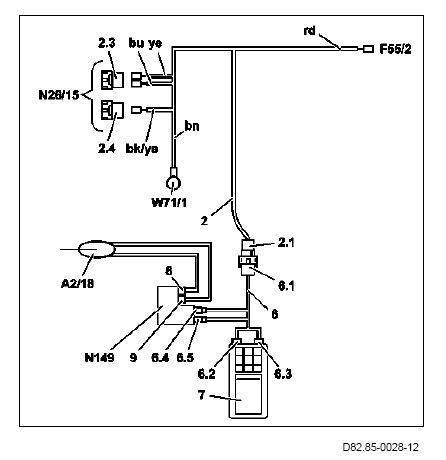

Connection diagram (with "DispoPilot.mobile+")
2 FleetBoard wiring harness
2.1 15-pin coupling
2.3 Black 21-pin coupling
2.4 White 21-pin coupling
6 FleetBoard/DispoPilot control unit wiring harness
6.1 15-pin connector
6.2 9-pin coupling
6.3 3-pin coupling
6.4 Blue 18-pin coupling
6.5 White 18-pin coupling
7 "DispoPilot.mobile+"
8 GPS antenna plug socket
9 GSM antenna plug socket
bk/ye Black/yellow line
bn Brown line
bu Blue line
rd Red line
ye Yellow line
A2/18 Antenna amplifier
F55/2 Fuse block (9 fuses)
N26/15 PSM control unit
N149 FleetBoard control unit
W71/1 Driver seat frame ground point 1

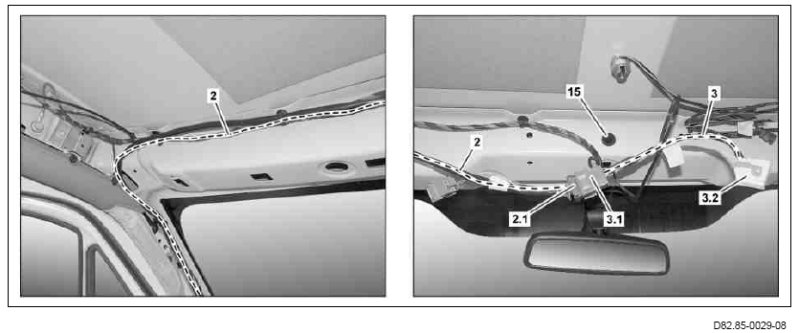

1 Route FleetBoard wiring harness on front roof over the left A-pillar along the existing lines to the fuse block (9 fuses) in the driver footwell and fix in place using cable ties.
2 Establish electrical connection between the 15-pin plug (3.1) from the FleetBoard control unit wiring harness (3) and the 15-pin coupling (2.1) from the FleetBoard wiring harness (2).
On vehicles without "DispoPilot.mobile+".

3 Route 18-pin coupling (3.2) to installation location of FleetBoard control unit.
On vehicles without "DispoPilot.mobile+".

4 Insert grommet (15) into hole made in the roof frame.

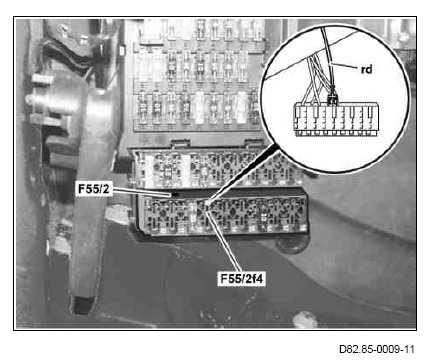

5 Expose red line (rd) of FleetBoard wiring harness in area of fuse block (9 fuses) (F55/2).
6 Release connector on fuse block (9 fuses) (F55/2) and remove.
7.1 Cut red line (rd) to suitable length, crimp on appropriate SLK connector and plug into contact cavity 4 of connector on fuse block (9 fuses) (F55/2).
Insert 7.5 A fuse into slot 13.
On vehicles without code (H11) Warm air auxiliary heater or without code (H12) Auxiliary heater (hot water).

7.2 Cut red line (rd) to suitable length and connect using potential distributor to the existing line in contact cavity 4 of connector on fuse block (9 fuses) (F55/2).
On vehicles with code (H11) Warm air auxiliary heater or without code (H12) Auxiliary heater (hot water).
The given fuse 13 (7.5 A), heater timer for warm air (F55/2f4) does not have to be replaced.

8 Plug connector onto fuse block (9 fuses) (F55/2).
9 Use cable tie to fix red line (rd) in place.

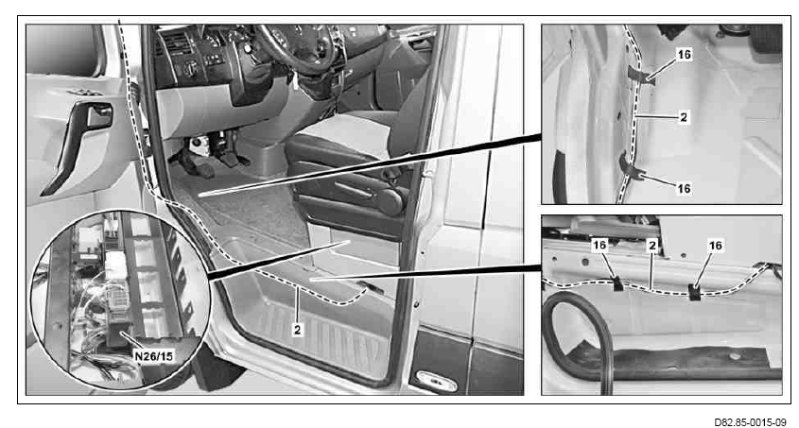

10 Route FleetBoard wiring harness (2) from driver footwell to PSM control unit (N26/15) and fasten using felt tape (16) to the body.

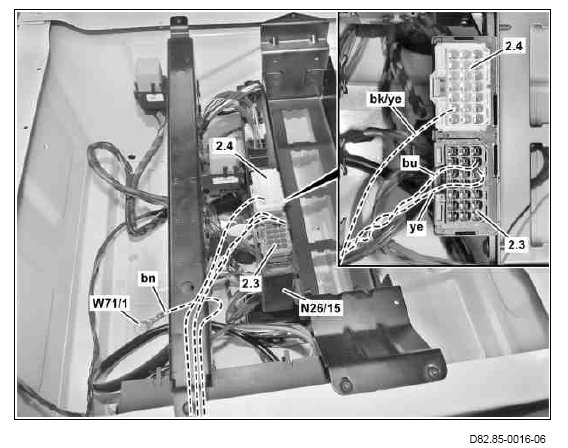

11 Release black 21-pin coupling (2.3) and white 21-pin coupling (2.4) on PSM control unit (N26/15) and remove.
12 Cut blue line (bl) to suitable length, crimp on appropriate SLK connector and plug into contact cavity 18 of the black 21-pin coupling (2.3).
13 Cut yellow line (ye) to suitable length, crimp on appropriate SLK connector and plug into contact cavity 15 of the black 21-pin coupling (2.3).
14 Cut black/yellow line (bk/ye) to suitable length, crimp on appropriate SLK connector and plug into contact cavity 4 of the white 21-pin coupling (2.4).
15 Cut brown line (bn) to suitable length, crimp on corresponding eyelet and connect to driver seat base ground point 1 (W71/1).
16 Connect white 21-pin coupling (2.4) and black 21-pin coupling (2.3) to PSM control unit (N26/15).







Only perform operation steps 17 to 21 when installing the "DispoPilot.mobile+" (7).

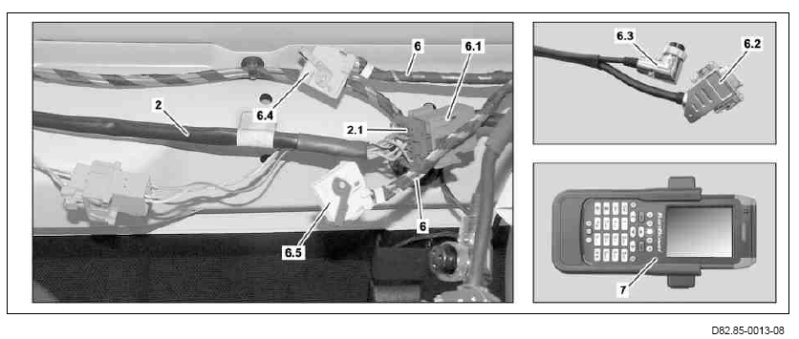

17 Connect 15-pin plug (6.1) of FleetBoard/DispoPilot control unit wiring harness (6) with 15-pin coupling (2.1) of FleetBoard wiring harness (2).
18 Route white 18-pin coupling (6.5) and blue 18-pin coupling (6.4) to installation location of FleetBoard control unit.
19 Route FleetBoard/DispoPilot control unit wiring harness (6) to "DispoPilot.mobile+" installation location (7).
20 Mount "DispoPilot.mobile+" (7).
21 Connect 9-pin coupling (6.2) and 3-pin coupling (6.3) to "DispoPilot.mobile+" (7).
