AN82.70-D-0002-03SC Retrofit Telephone Cable Harness

AN82.70-D-0002-03SC Retrofit Telephone Cable Harness

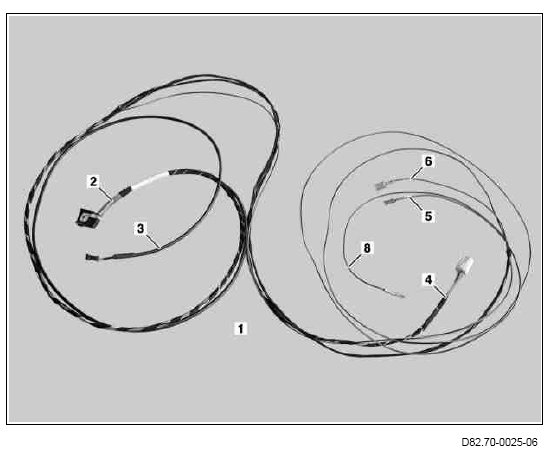

1 Route lines (2, 3, 4) from SAM control unit (N10) to radio recess.
2 Connect microphone line to connector of line (3).
3 Connect multiplug of line (4) to Sound 5 radio (contact cavity C).
4 Continue routing line (2) to telephone control unit (N123).
The telephone control unit (N123) is installed at the glove compartment.







5 Withdraw fuse block (9 fuses) (F55/2) from SAM control unit (N10).
6 Connect plug contact of red line, circuit 30 (5) to fuse block (9 fuses) (F55/2), slot 11.







7 Route violet/black line, circuit 15 (6) to driver seat frame at entrance and lead through opening in driver seat frame.

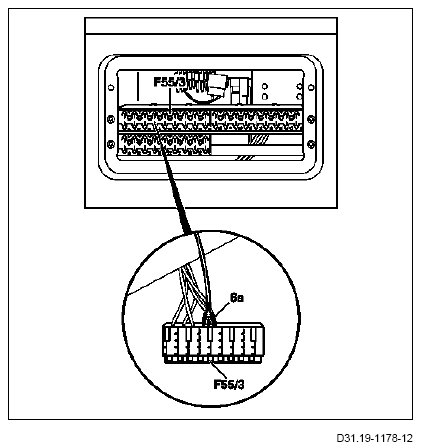

8 Connect plug contact (6a) of line, circuit 15 (6) to fuse block (9 fuses) (F55/3), slot 3.







9 Fasten ground line (8) to left ground terminal point next to SAM control unit (N10).
