AN82.70-D-0002-03SB Retrofit Telephone Cable Harness

AN82.70-D-0002-03SB Retrofit Telephone Cable Harness

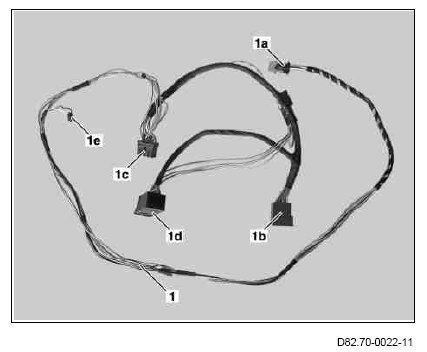

1 Route telephone wiring harness (1) with multiplug (1a) from radio recess to telephone control unit (N123).
2 Connect removed radio multiplug to connector housing (1b).
3 Connect changeover relay (1d) to telephone wiring harness (1) in a suitable location.
4 Connect line from microphone to connector (1e).
5 Connect multiplug (1c) to radio.

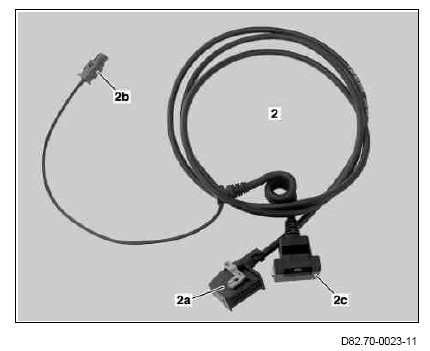

6 Route telephone console wiring harness (2).
Route telephone console wiring harness (2) with multiplug (2a) from instrument cluster paneling via radio recess to telephone control unit (N123).

7 Connect line (2b) to antenna line.
Adapter (2c) is inserted into telephone console after installing telephone console wiring harness (2).

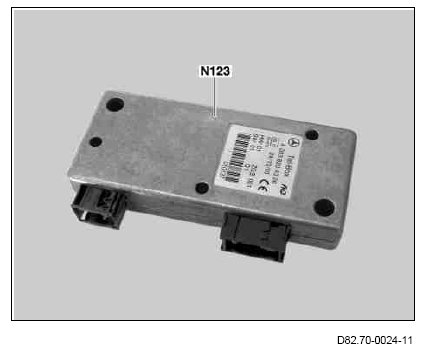

8 Connect electrical multiplugs (1a, 2a) to telephone control unit (N123).
