GF80.61-D-0006-01H Keyless Entry, Function Schematic

GF80.61-D-0006-01H Keyless Entry, Function Schematic
- with CODE (FY9) Keyless entry+slide
- with CODE (T55) Electrical actuation for right sliding door
- with CODE (T56) Electrical actuation for left sliding door







A8/1 Transmitter key

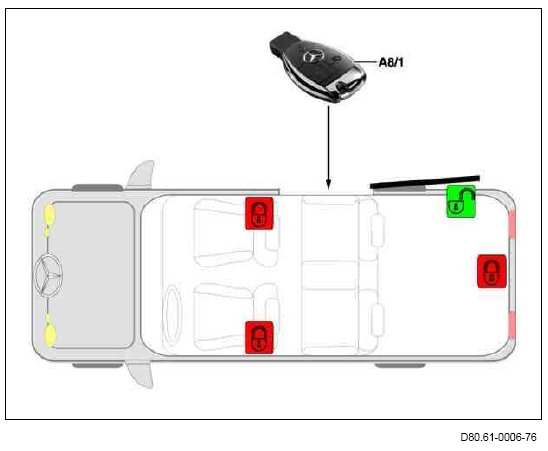

Example 1:
- Keyless Entry system activated
- Transmitter key approaches electric load compartment sliding door (E-LST)
- The distance between the transmitter key and the vehicle is approx. 4 m

The E-LST is unlocked and opened.







A8/1 Transmitter key

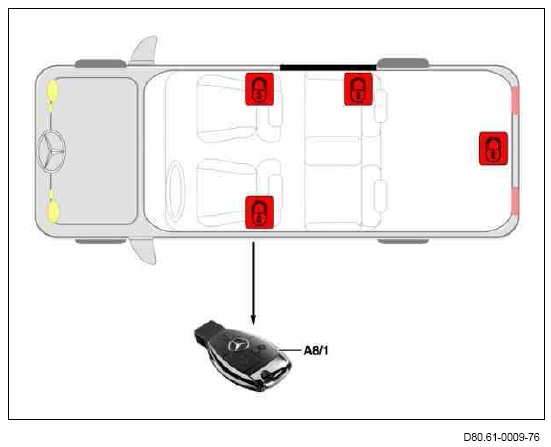

Example 2:
- Keyless Entry system activated
- Remove transmitter key from E-LST
- The distance between the transmitter key and the vehicle is approx. 1 m

The E-LST is closed and the vehicle locked.







A8/1 Transmitter key

Example 3:
- Keyless Entry system activated
- Transmitter key approaches driver door
- The distance between the transmitter key and the vehicle is approx. 0.5 m

The driver door is unlocked.







A8/1 Transmitter key

Example 4:
- Keyless Entry system activated
- Remove transmitter key from driver door
- The distance between the transmitter key and the vehicle is approx. 1 m

The vehicle is locked.
