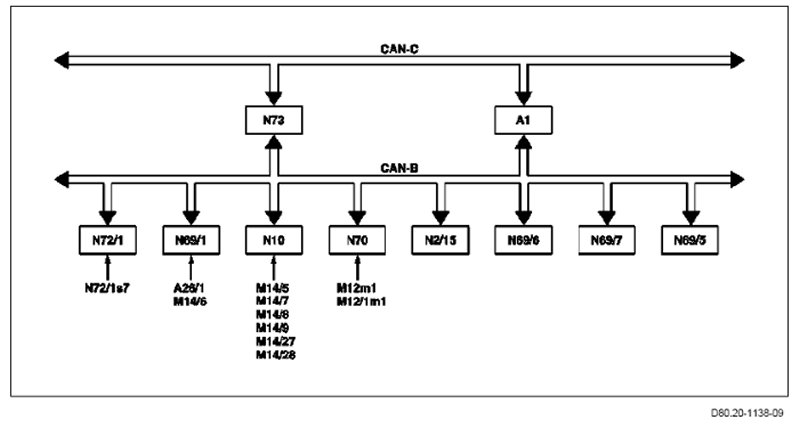

GF80.20-D-0005-10H Central Locking (CL), Block Diagram

GF80.20-D-0005-10H Central Locking (CL), Block Diagram







Shown with code (SH0) Windowbag for driver
A1 Instrument cluster
A26/1 Driver door IR receiver
M12m1 Front tilting/sliding roof motor
M12/1m1 Rear tilting/sliding roof motor
M14/5 Front passenger door CL [ZV] actuator
M14/6 Driver door CL [ZV] actuator
M14/7 Rear-end door CL [ZV] actuator
M14/8 Left door CL actuator CREW CAB
M14/9 Right door CL actuator CREW CAB
M14/27 Right sliding door CL [ZV] actuator
M14/28 Left sliding door CL [ZV] actuator
N2/15 Highline airbag control unit
N10 SAM control unit
N69/1 Left front door control unit
N69/5 Keyless Entry control unit
N69/6 Right sliding door control unit
N69/7 Left sliding door control unit
N70 OCP [DBE] control unit
N72/1 UCP [OBF] control unit
N72/1s7 Inner CL button
