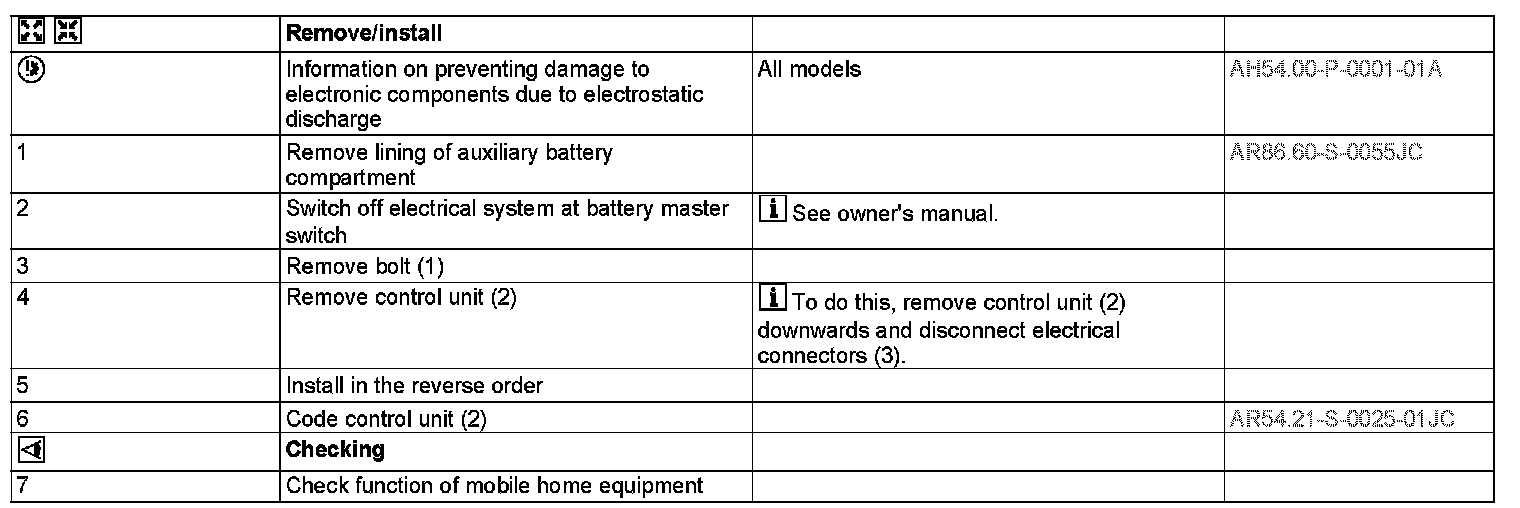

AR54.21-S-0025JC Remove and Install Central Electronics Control Unit




AR54.21-S-0025JC Remove And Install Central Electronics Control Unit

- with CODE (ZO1) Camper James Cook Compact
- with CODE (ZO2) Camper James Cook Classic

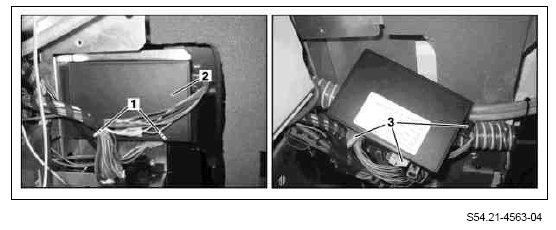

1 Bolts
2 Control unit
3 Electrical connectors
