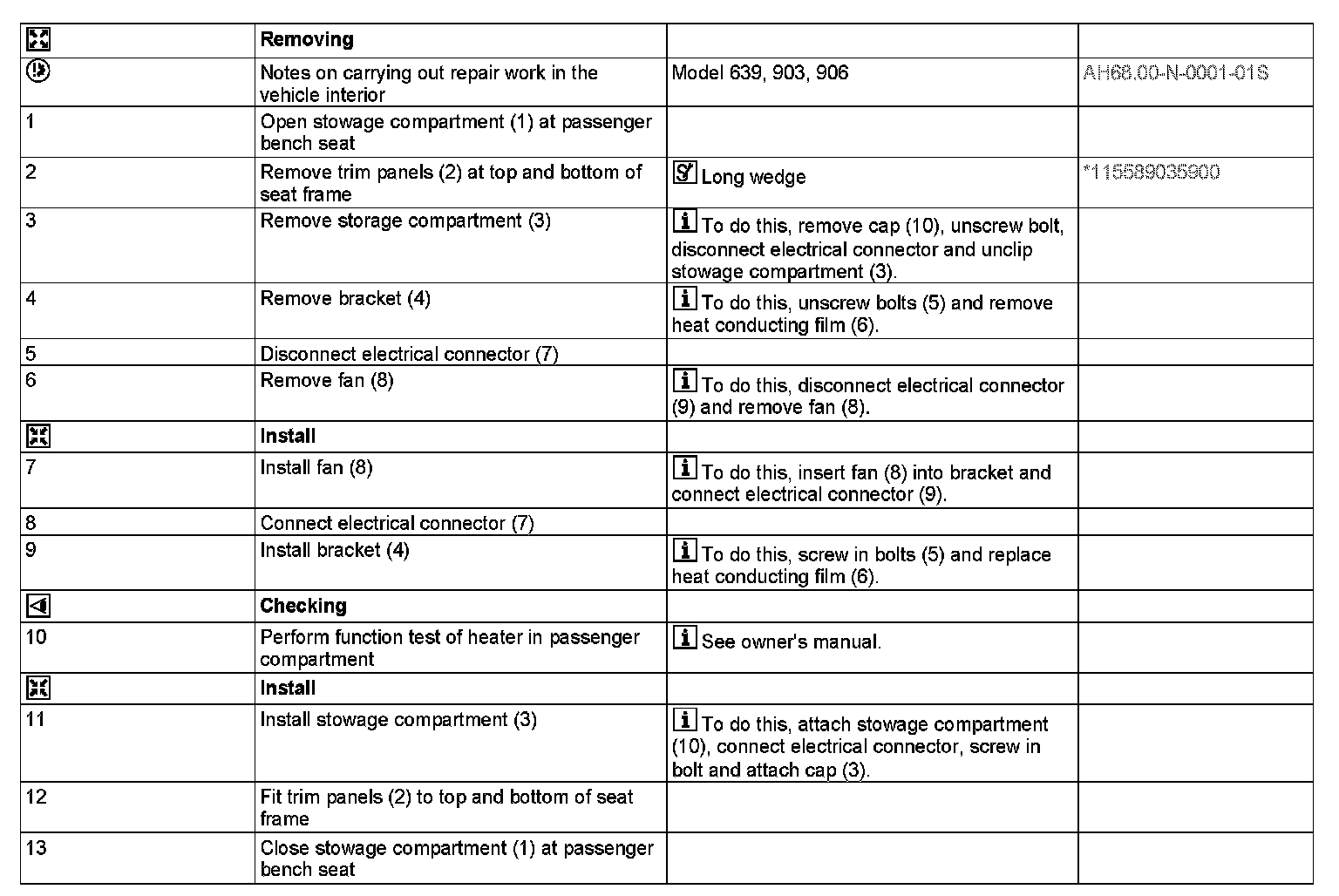

AR83.70-S-5910JC Remove/Install Passenger Compartment Heating Convector Fan

AR83.70-S-5910JC Remove/Install Passenger Compartment Heating Convector Fan

- with CODE (ZO1) Camper James Cook Compact
- with CODE (ZO2) Camper James Cook Classic

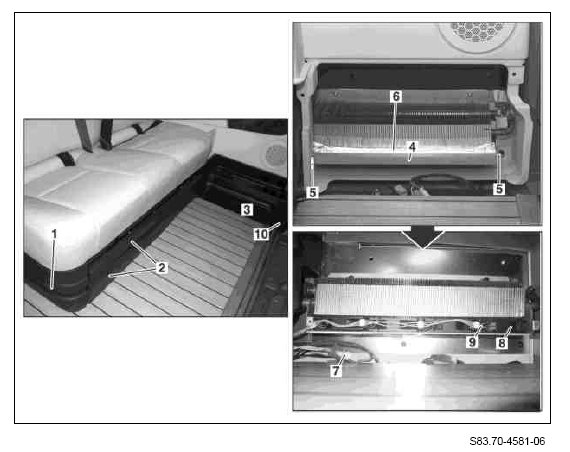

Removal of an individual fan illustrated
1 Stowage compartment
2 Trim Panels
3 Stowage compartment
4 Bracket
5 Bolts
6 Heat conducting film
7 Electrical connector
8 Fan
9 Electrical connector
10 Cap







115 589 03 59 00, Long wedge
