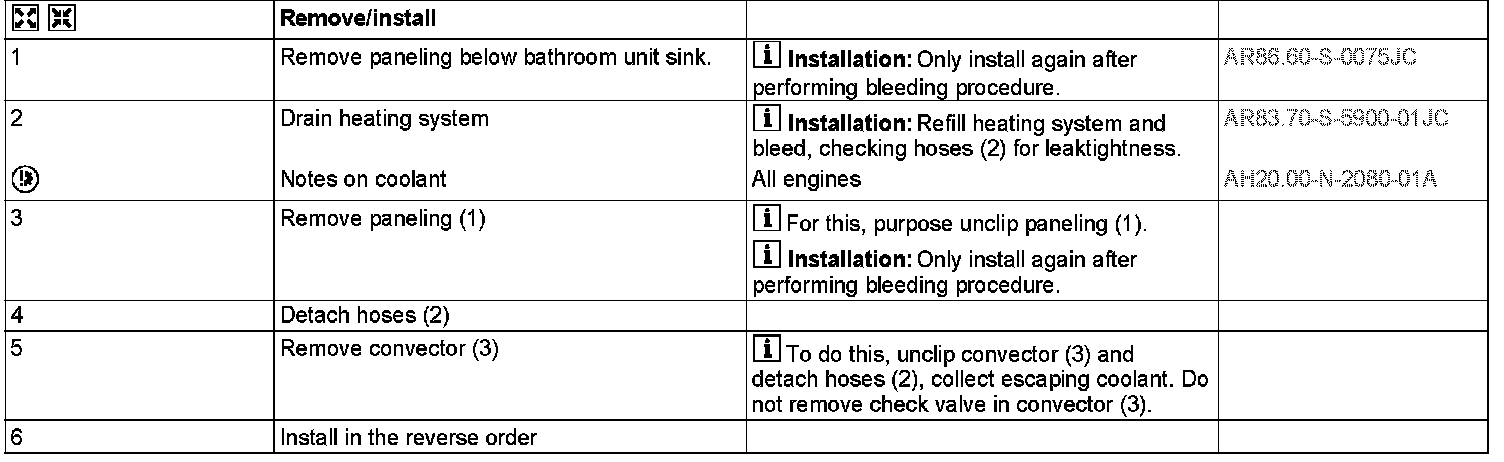

AR83.70-S-5900JC Remove/Install Bathroom Unit Heating Convector



AR83.70-S-5900JC Remove/Install Bathroom Unit Heating Convector

- with CODE (ZO1) Camper James Cook Compact
- with CODE (ZO2) Camper James Cook Classic

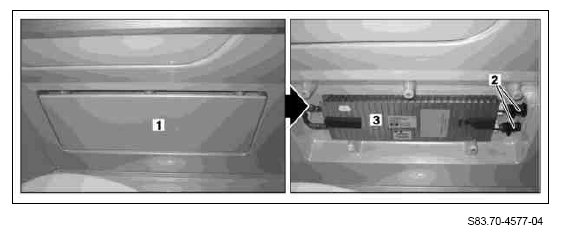

1 Trim
2 Hoses
3 Convector
