GF54.65-D-5020H Warning Indicator, Component Description

GF54.65-D-5020H Warning Indicator, Component Description

- with CODE (EZ8) Parktronic system (PTS) front recording area







A44/9 Center front PTS warning element

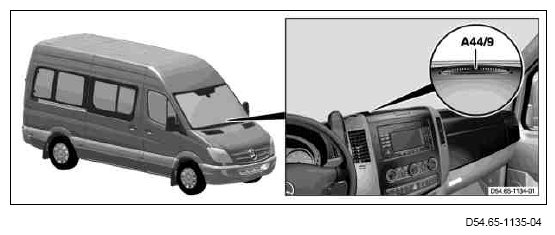

Location
The center front PTS warning element is located in the center of the dashboard.

Task
Displays of the distance to an obstacle in the front monitoring range. Issuance of an acoustic warning signal over the PTS buzzer (A44/12) when a minimum distance is infringed.

Design
The center front PTS warning element consists of 12 yellow and 4 red light emitting diodes (LED), the frame, transducer and the microprocessor, which evaluates and converts the data from the PTS control unit (N62).
