Exhaust Gas NOx Sensor: Service and Repair
AR14.40-P-2038GZB Remove/install NOx sensor with controller unit
- with CODE (U42) BlueTEC diesel exhaust treatment (SCR)

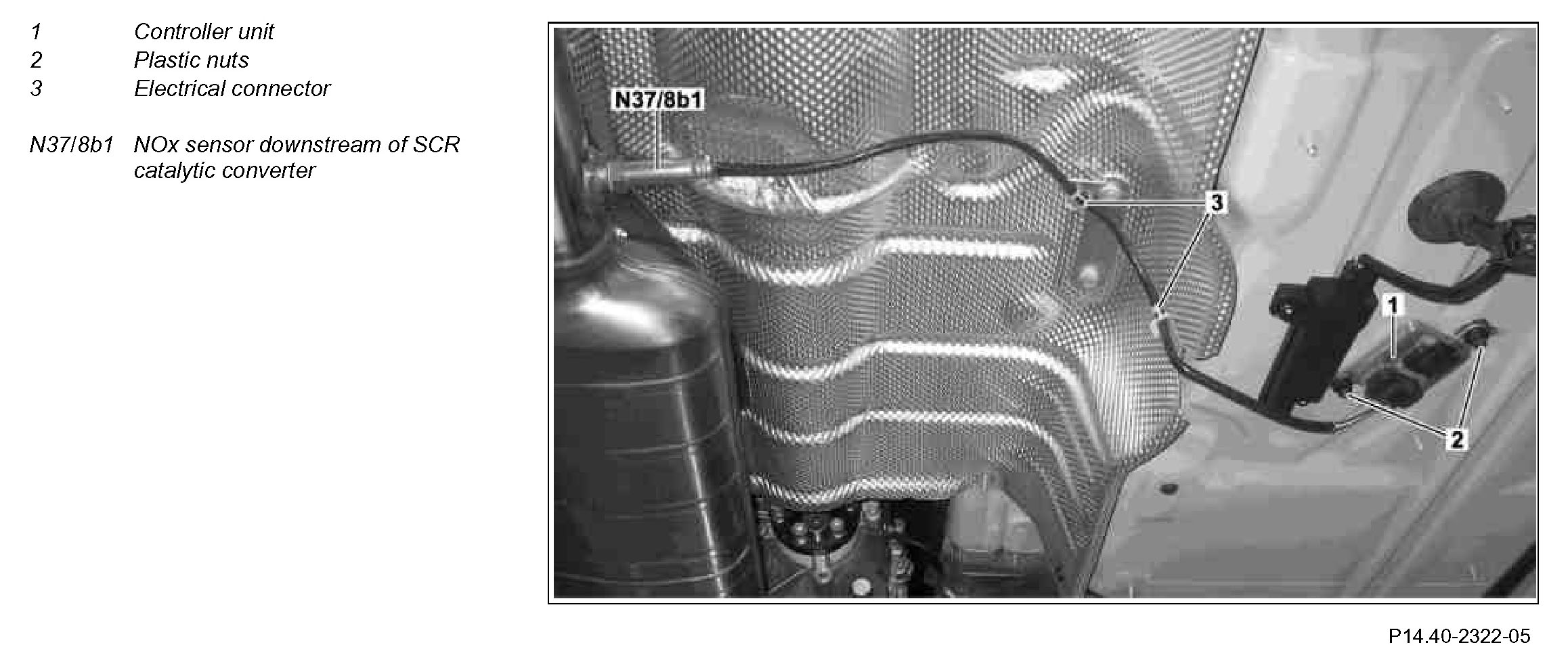

Component Identification:

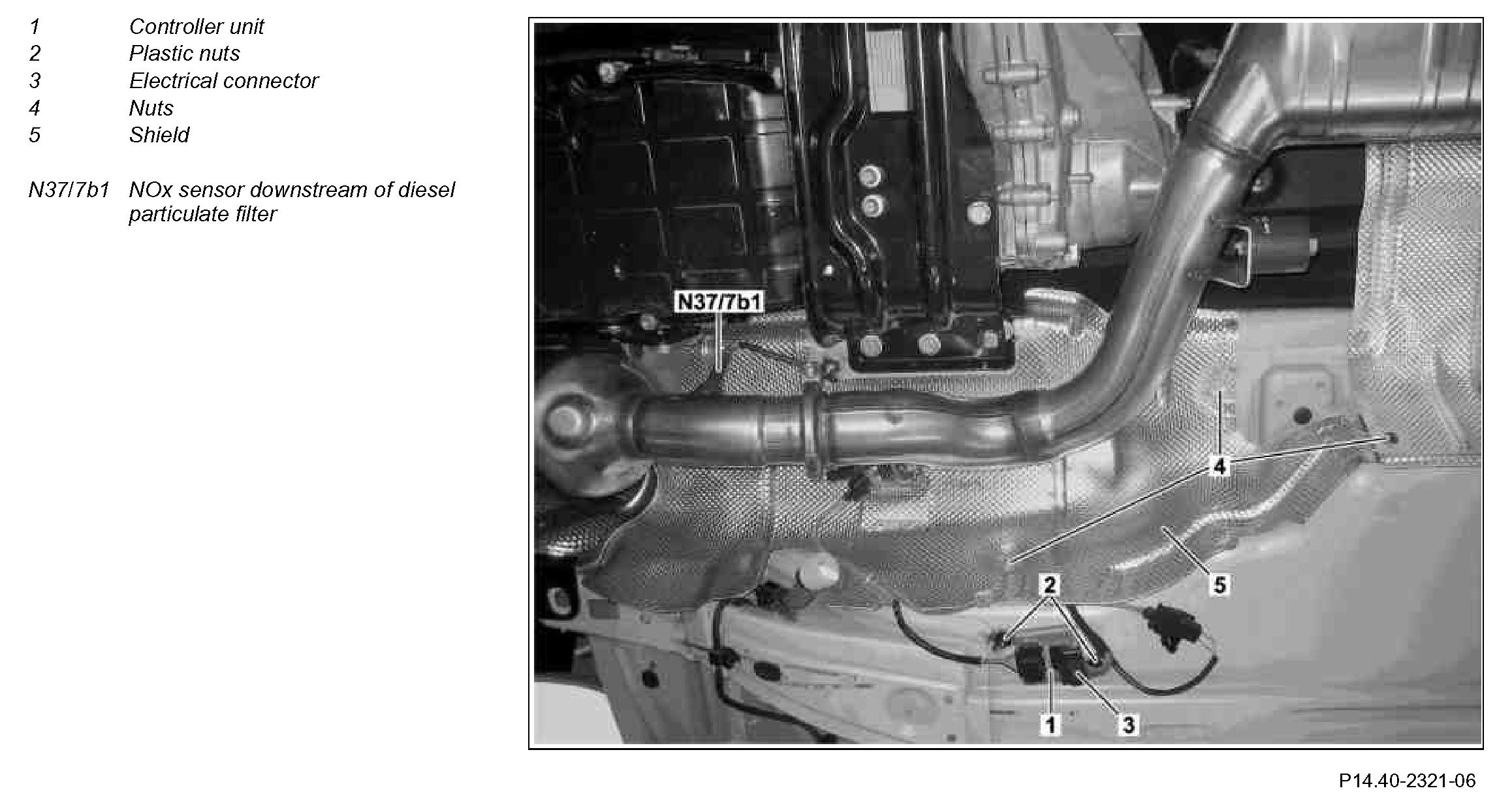

Component Identification:
Steps 1-7:

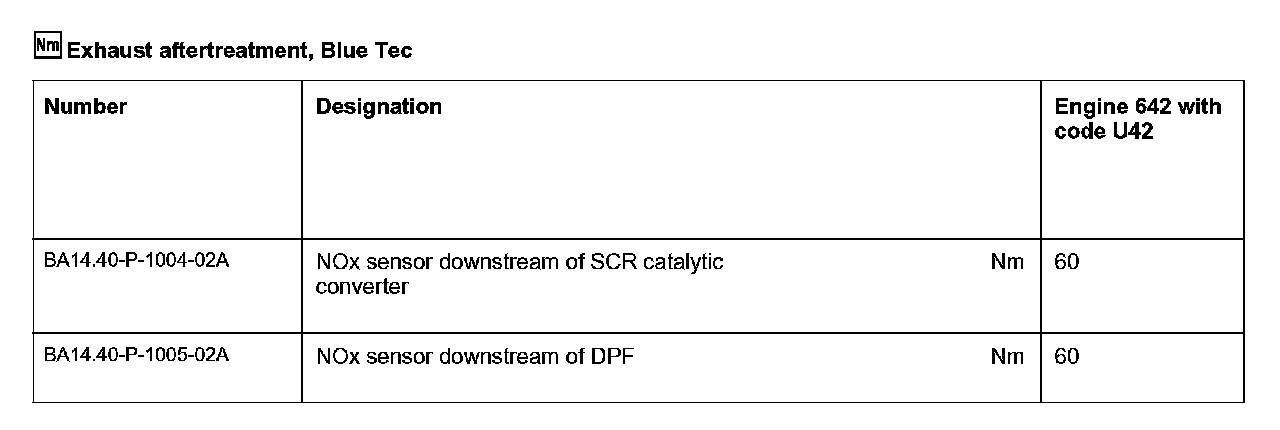

Exhaust aftertreatment, Blue Tec:
