Glow Plug Control Module: Service and Repair
AR15.20-P-4500GZB Remove/install glow output stage

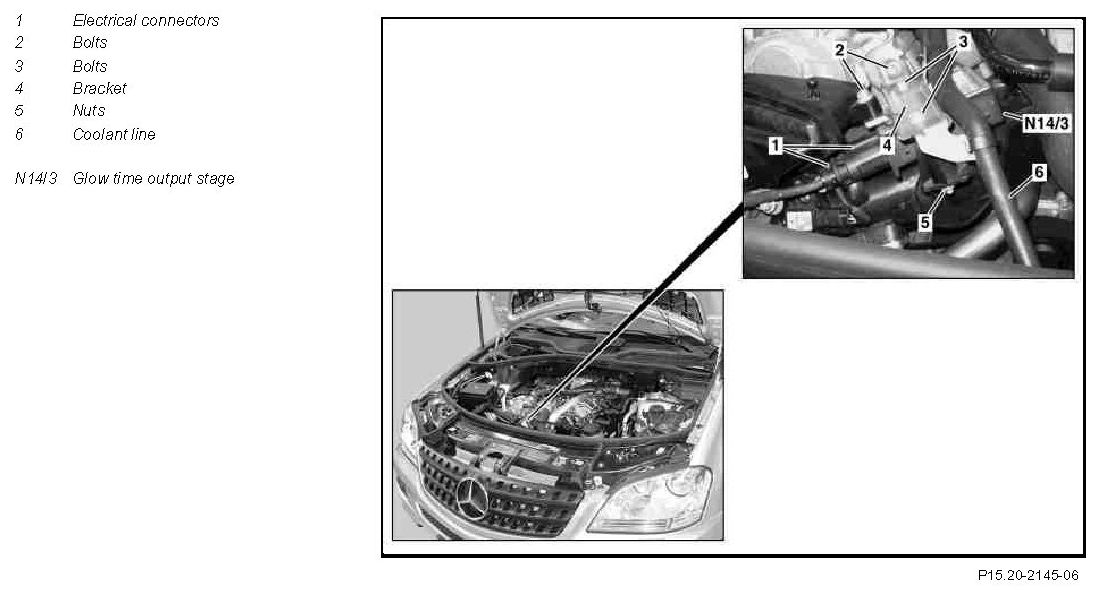

Component Identification:

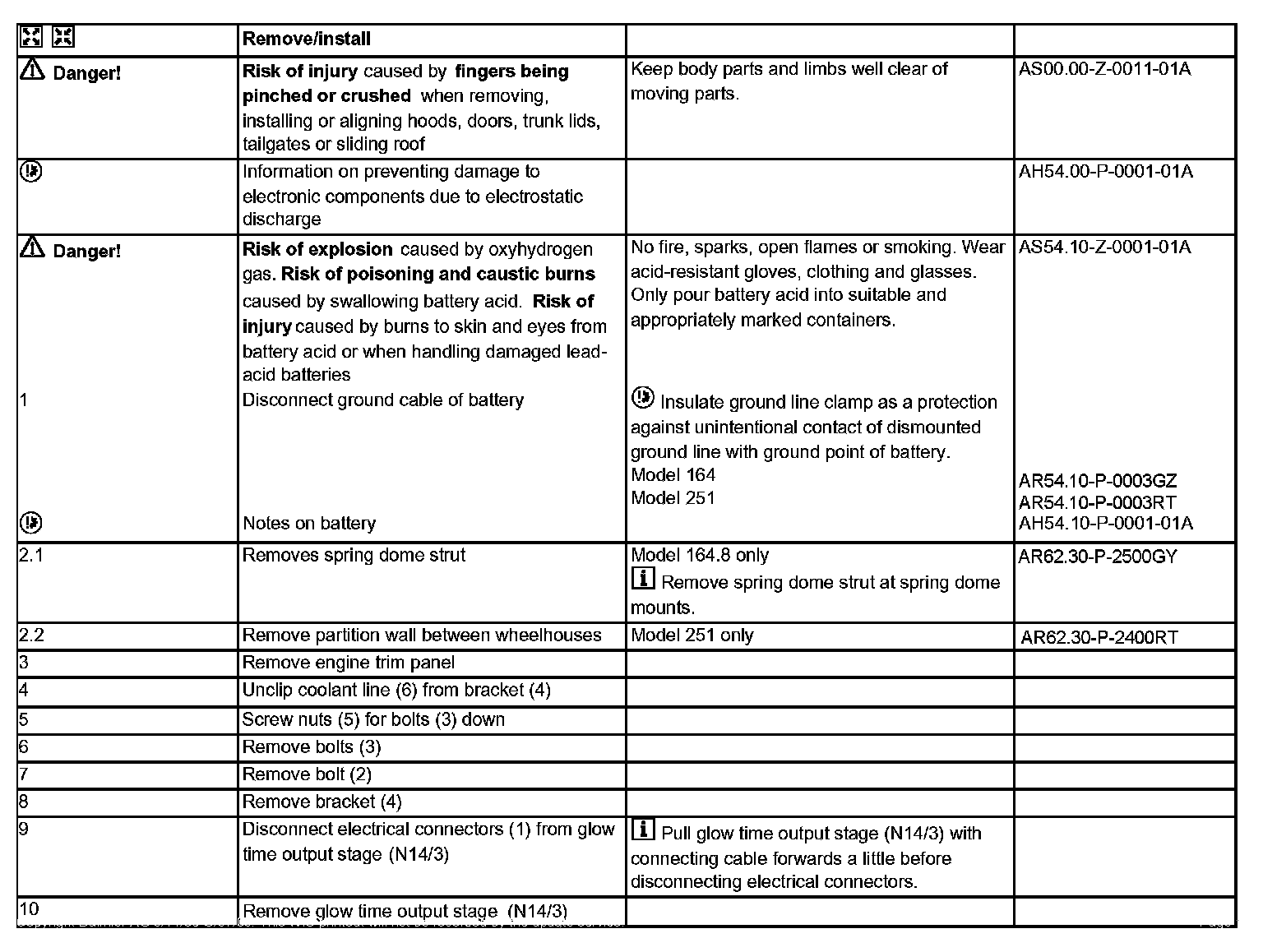

Remove/install Steps 1-10:

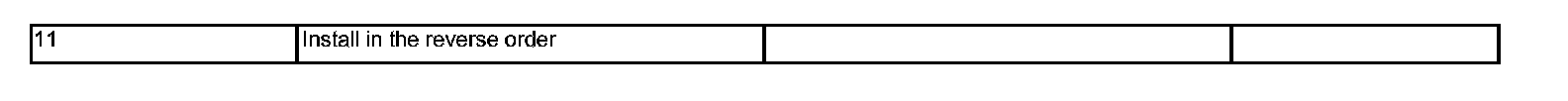

Remove/install Step 11:
