AR83.70-P-0003GZ Remove/Install Telestart Receiver



AR83.70-P-0003GZ Remove/Install Telestart Receiver
- with CODE (228) Stationary heater

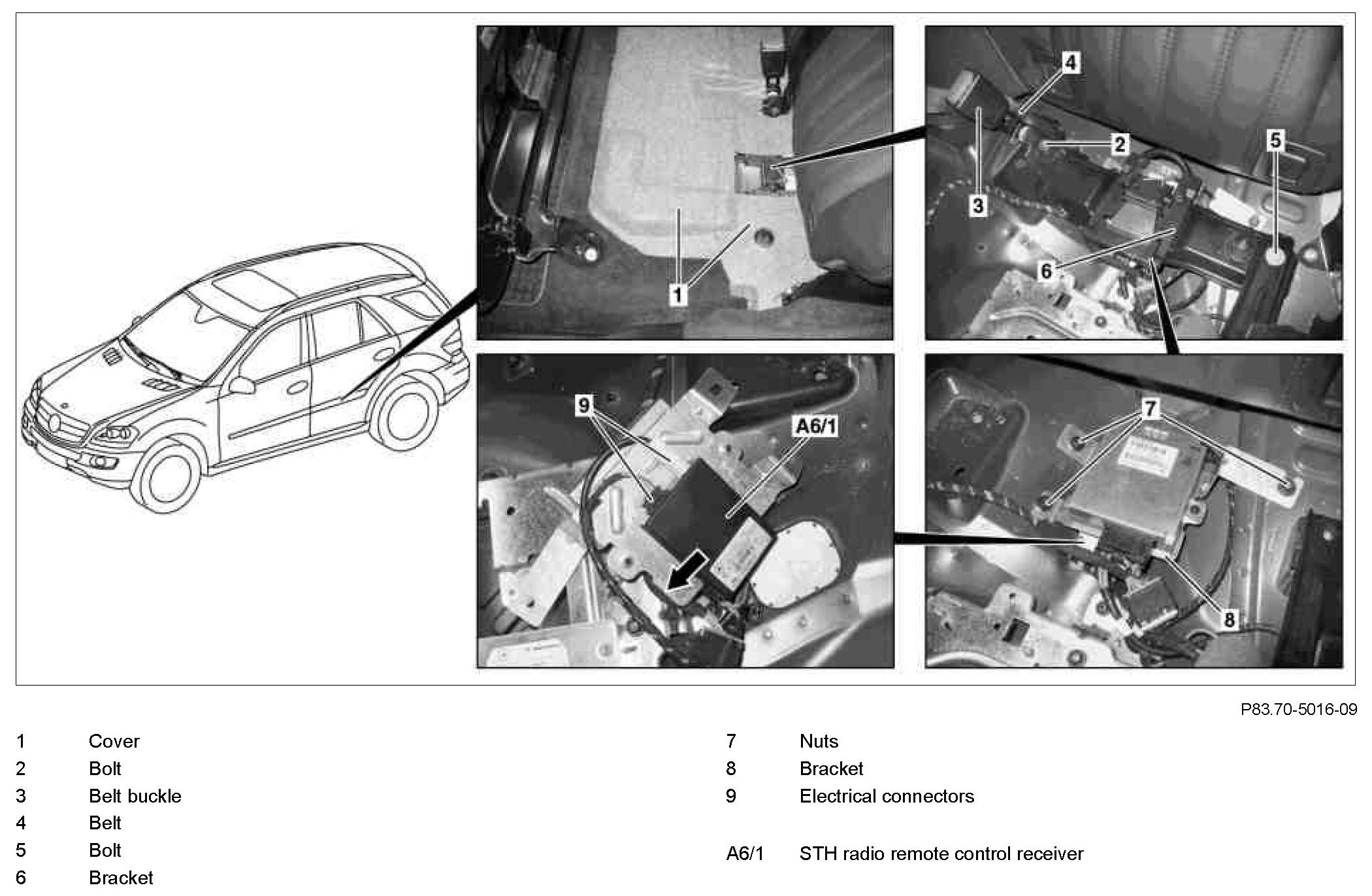

Component Identification:

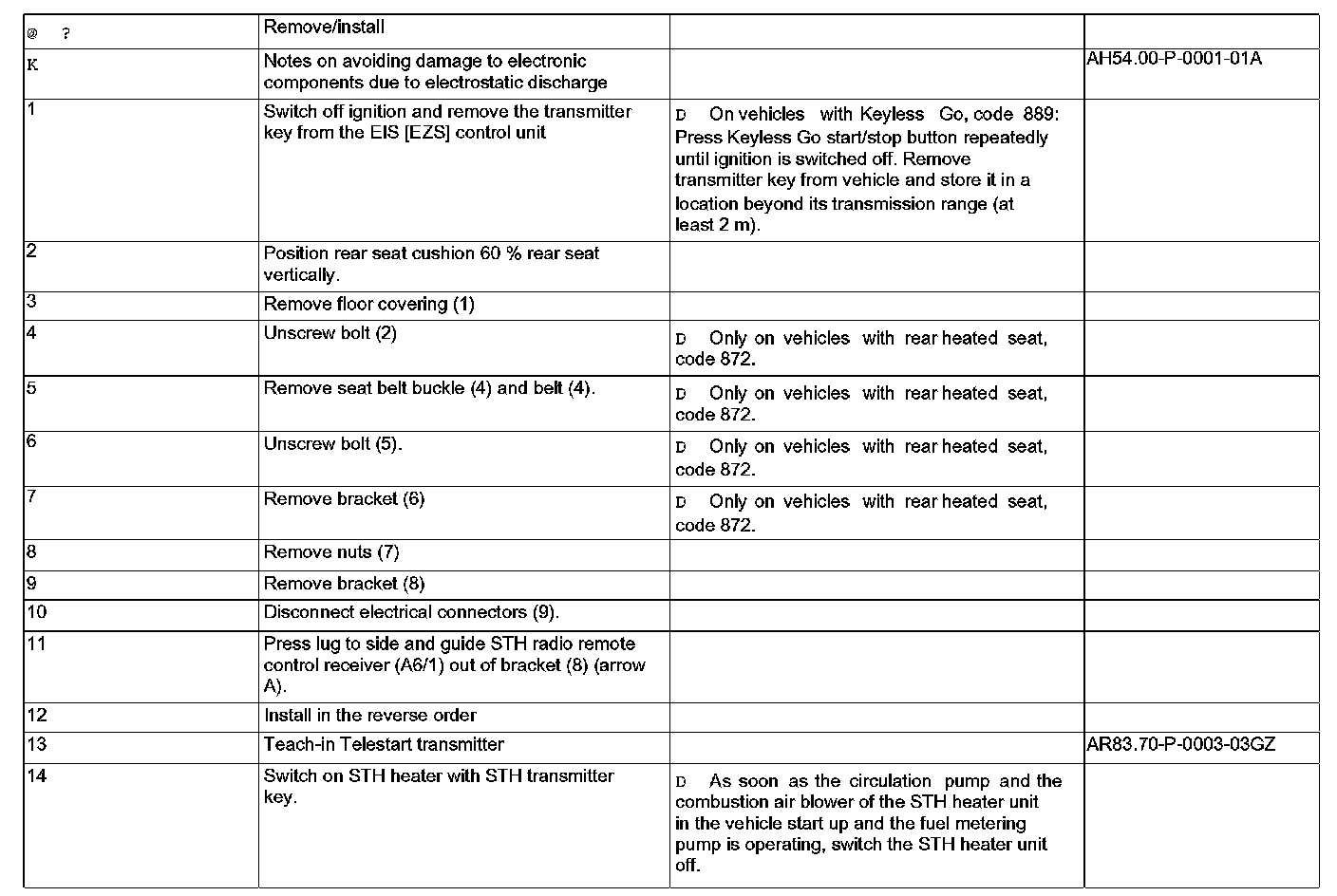

Steps 1 - 14:




Frame Floor Assembly:

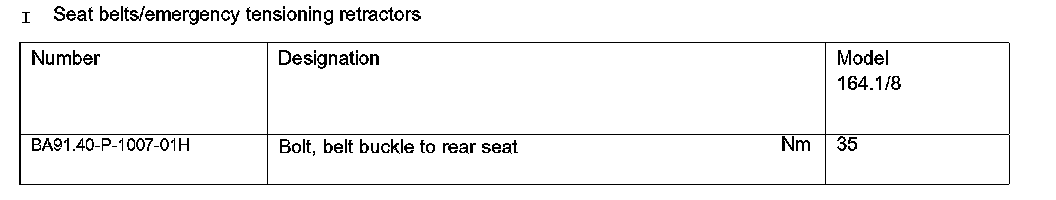

Seat Belts/emergency Tensioning Retractors:
