Central Control Module: Service and Repair



AR54.21-P-0817GZ Central Gateway Control Unit (ZGW), Remove And Install

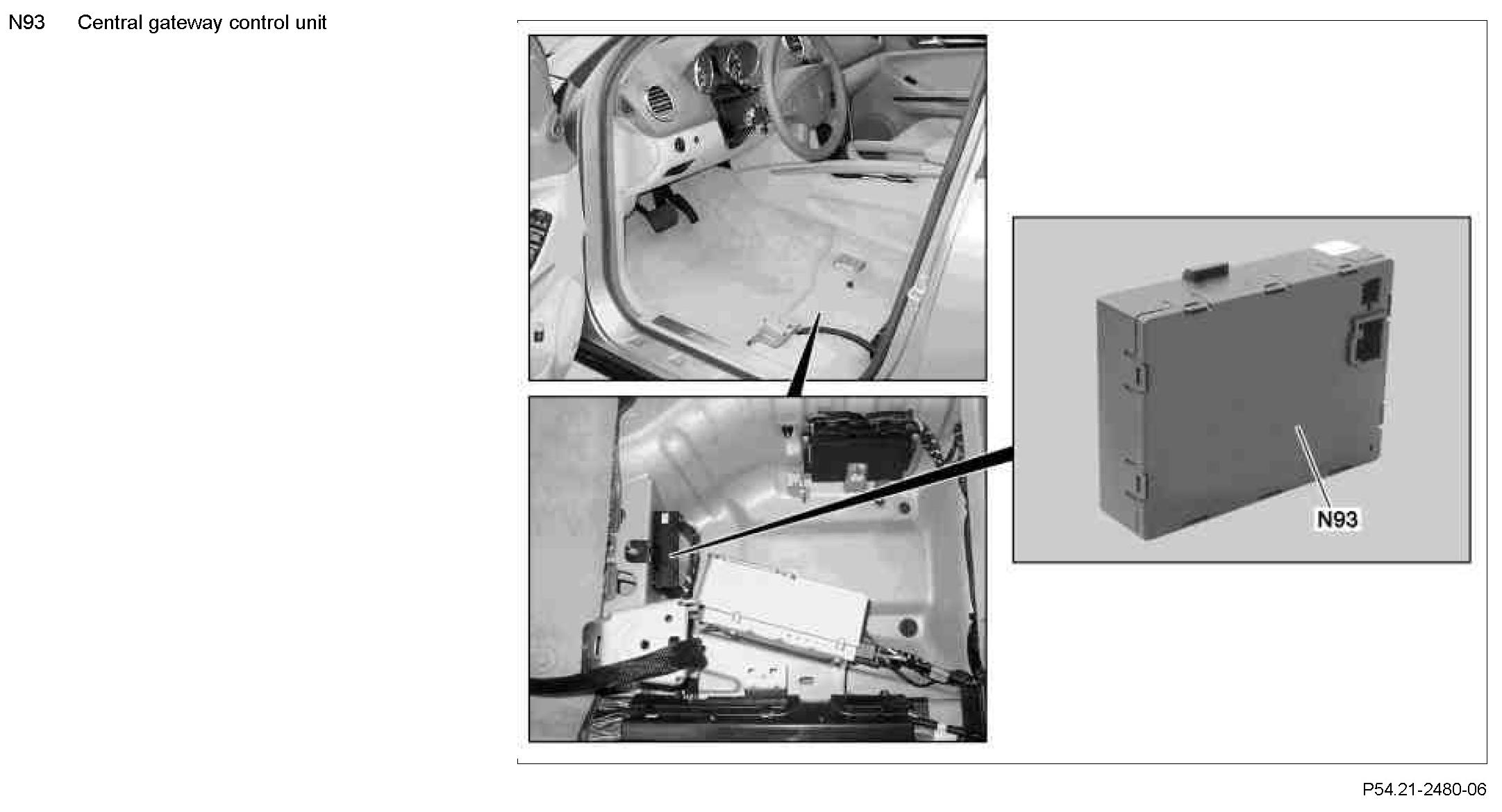

Component Identification:

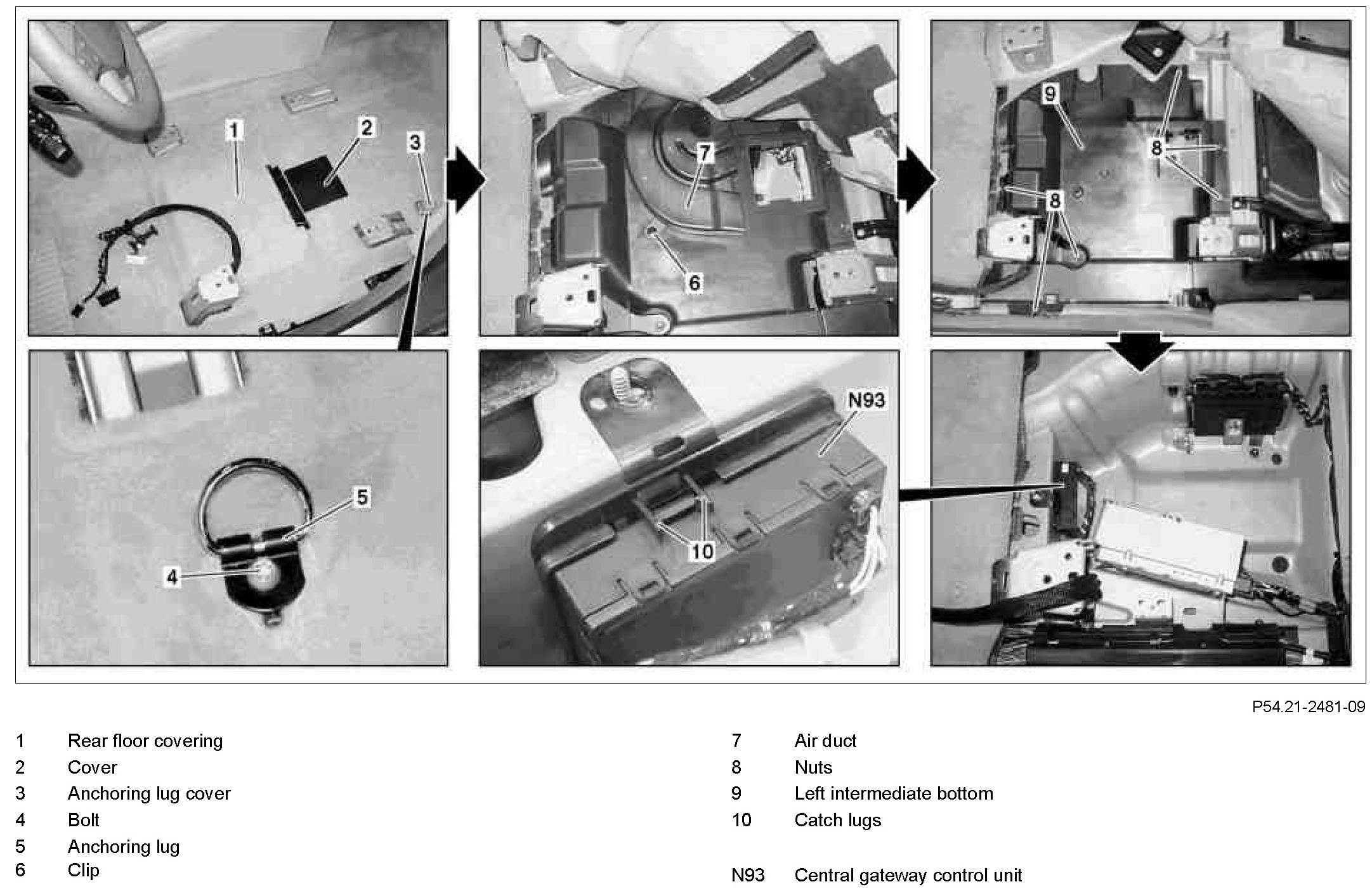

Component Identification:

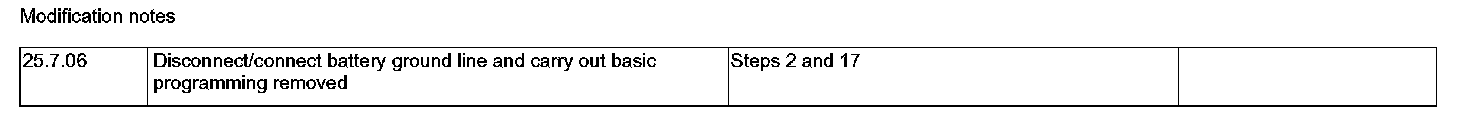

Modification Notes:

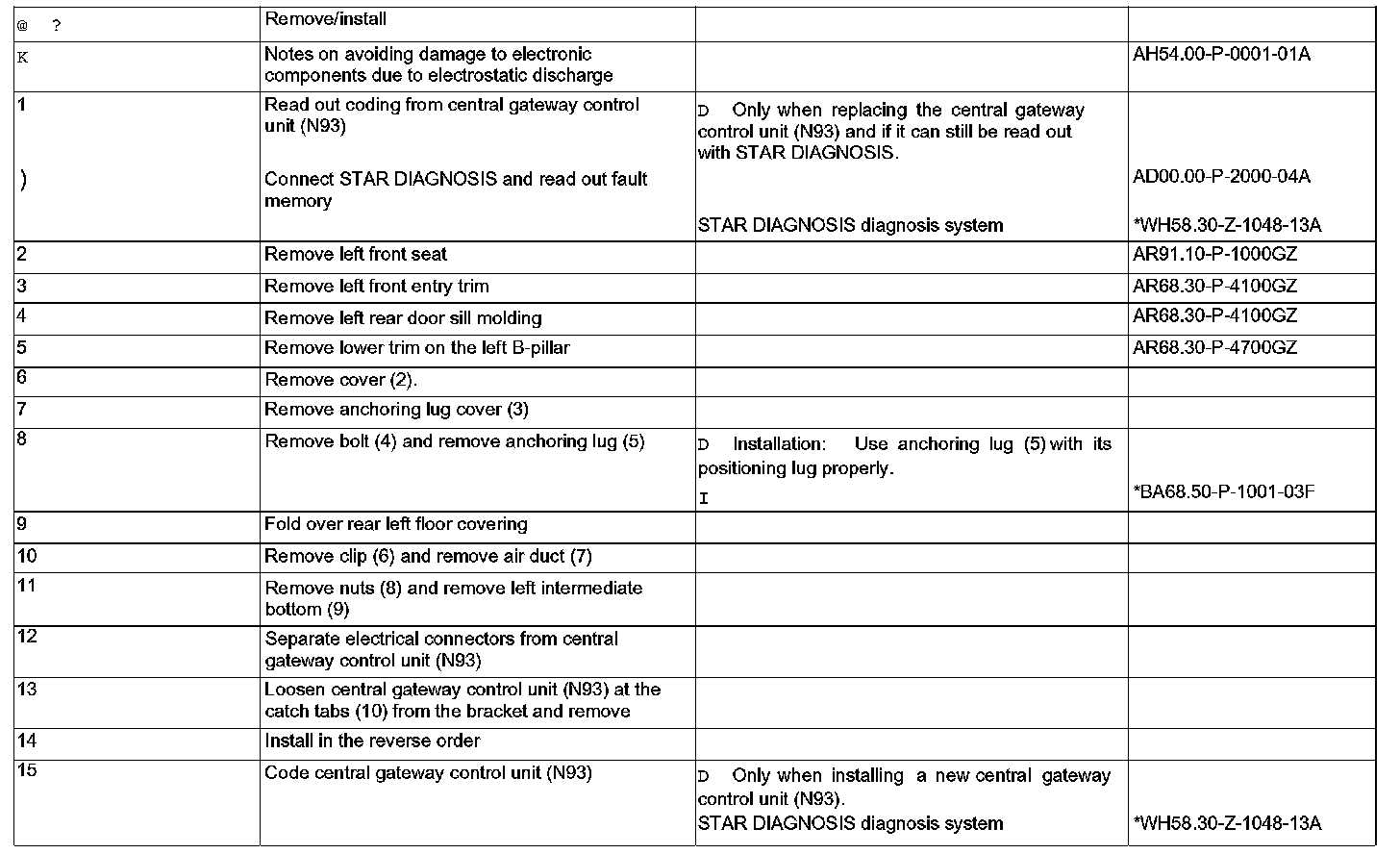

Steps 1 - 15:

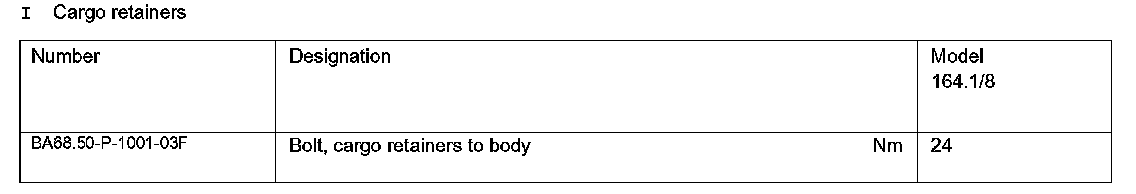

Cargo Retainers:

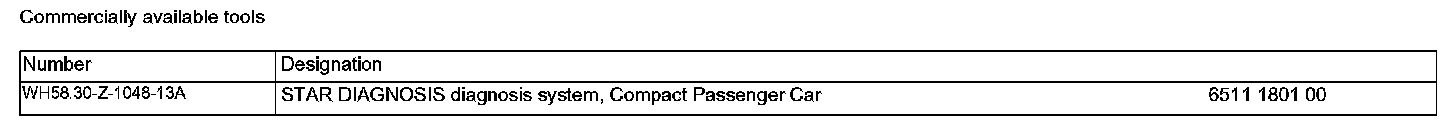

Commercially Available Tools:
