Home >> Mercedes Benz Truck >> 2011 >> ML 350 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Catalytic Converter >> Service and Repair >> AR49.10-P-5510GZB Remove/Install Primary Catalytic Converter (Near-Engine Mounted)

AR49.10-P-5510GZB Remove/Install Primary Catalytic Converter (Near-Engine Mounted)



AR49.10-P-5510GZB Remove/install primary catalytic converter (near-engine mounted)

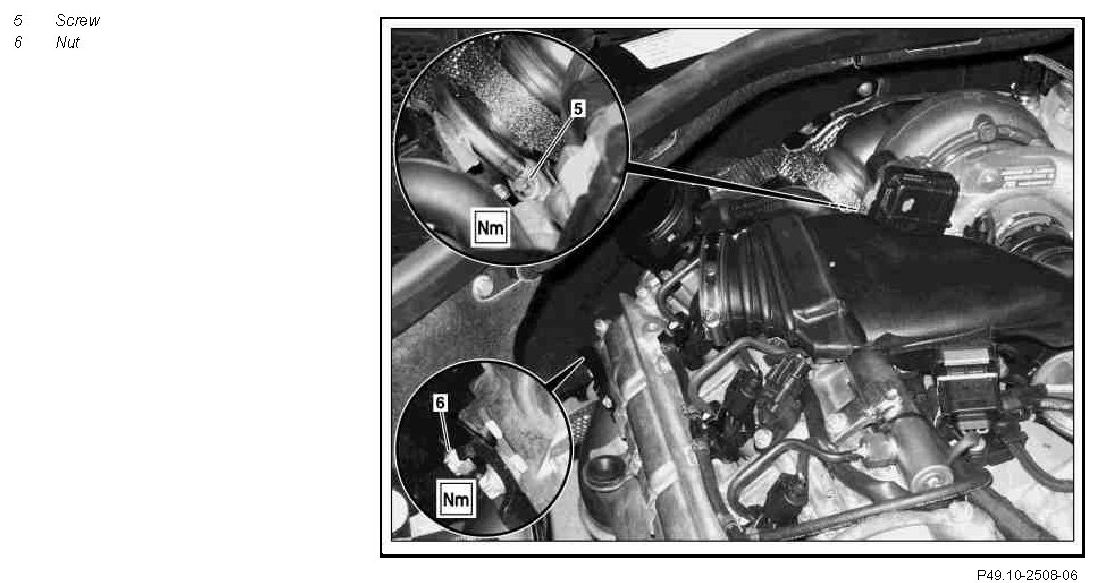

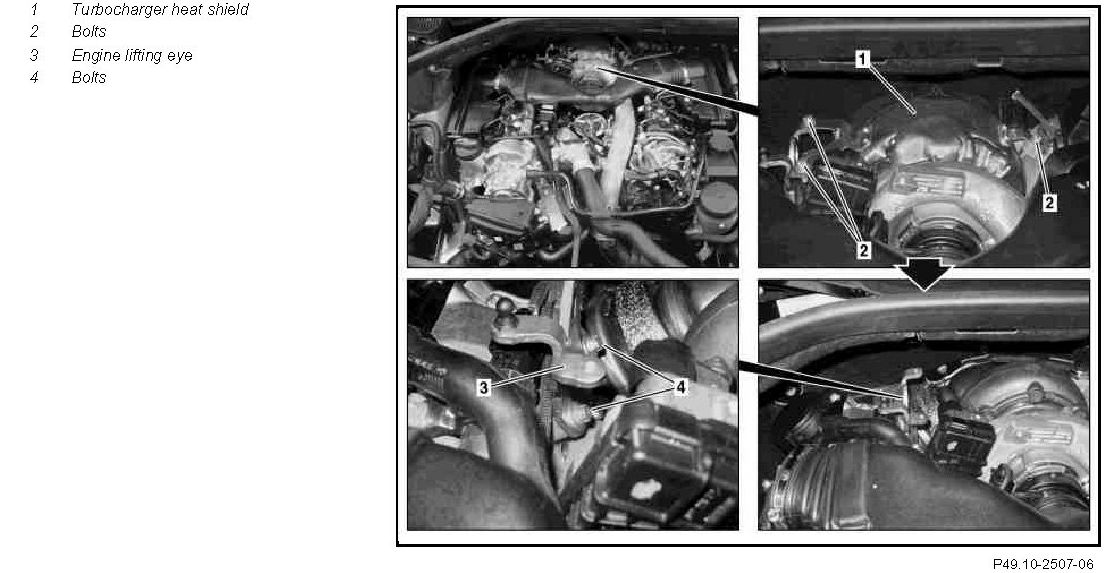

Component Identification:




Component Identification:

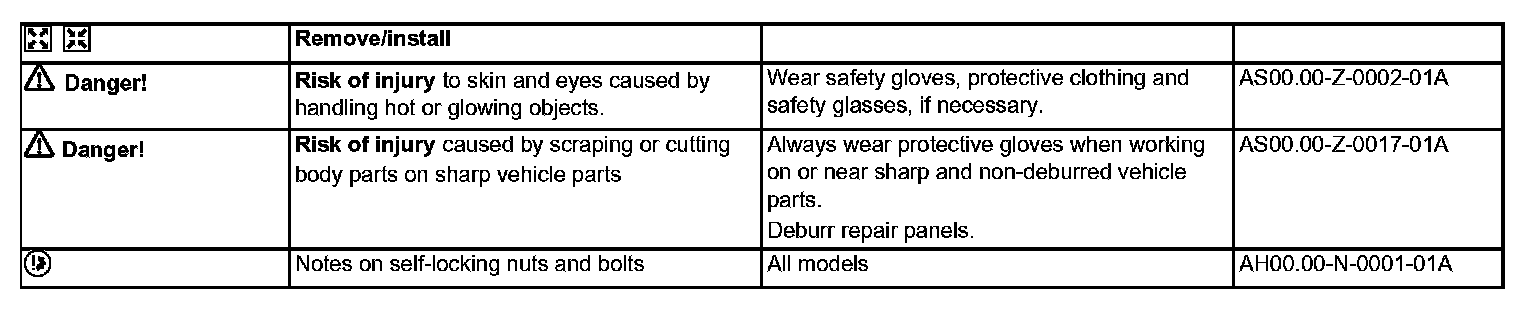

Remove/install:

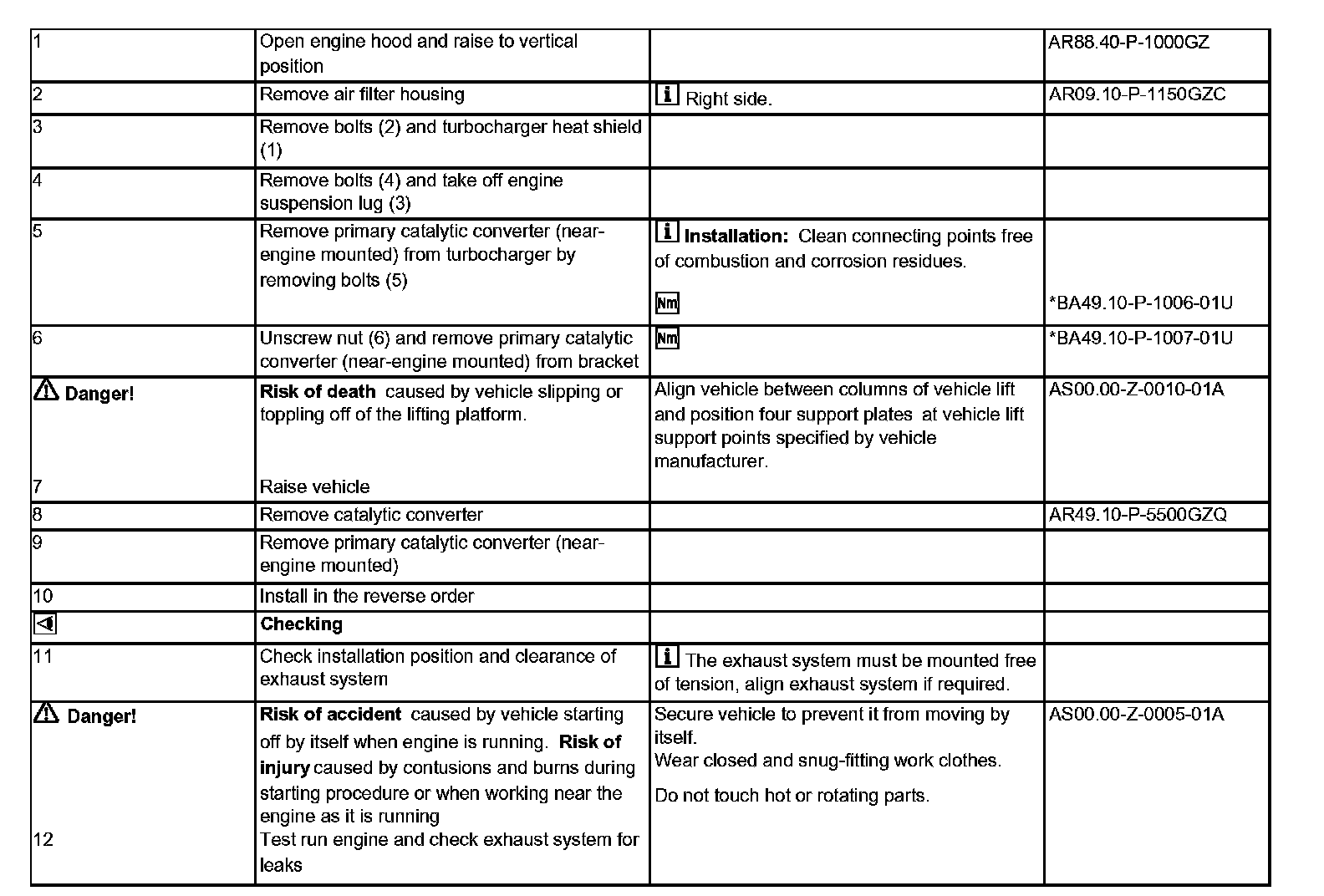

Remove/install Steps 1-12:

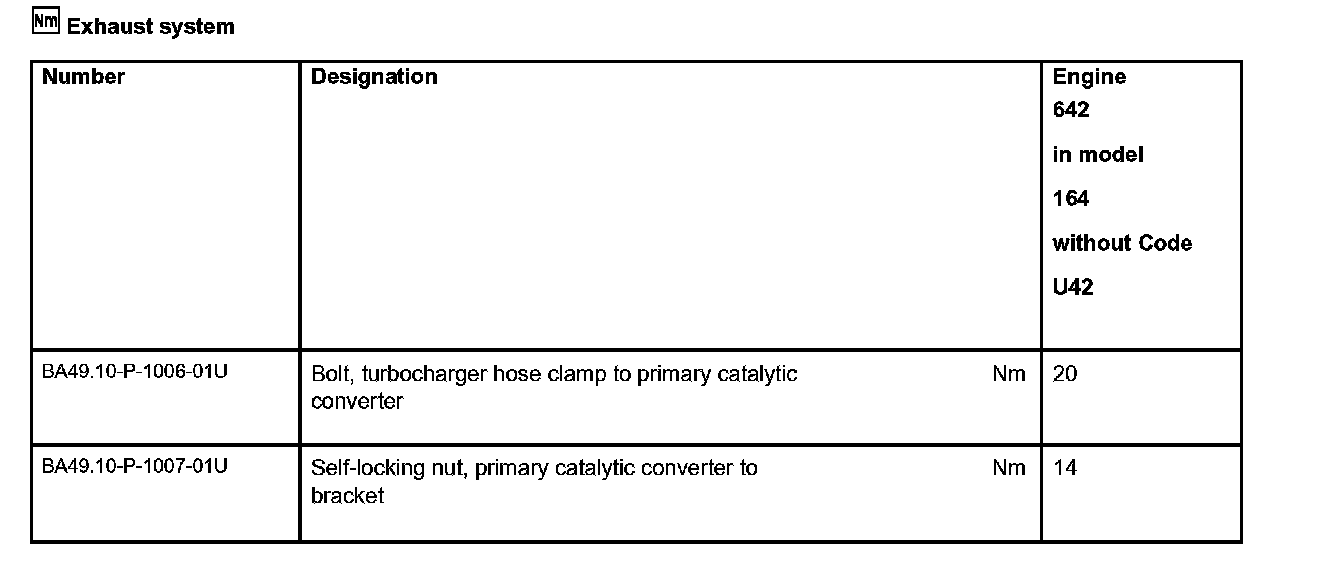

Exhaust system:
