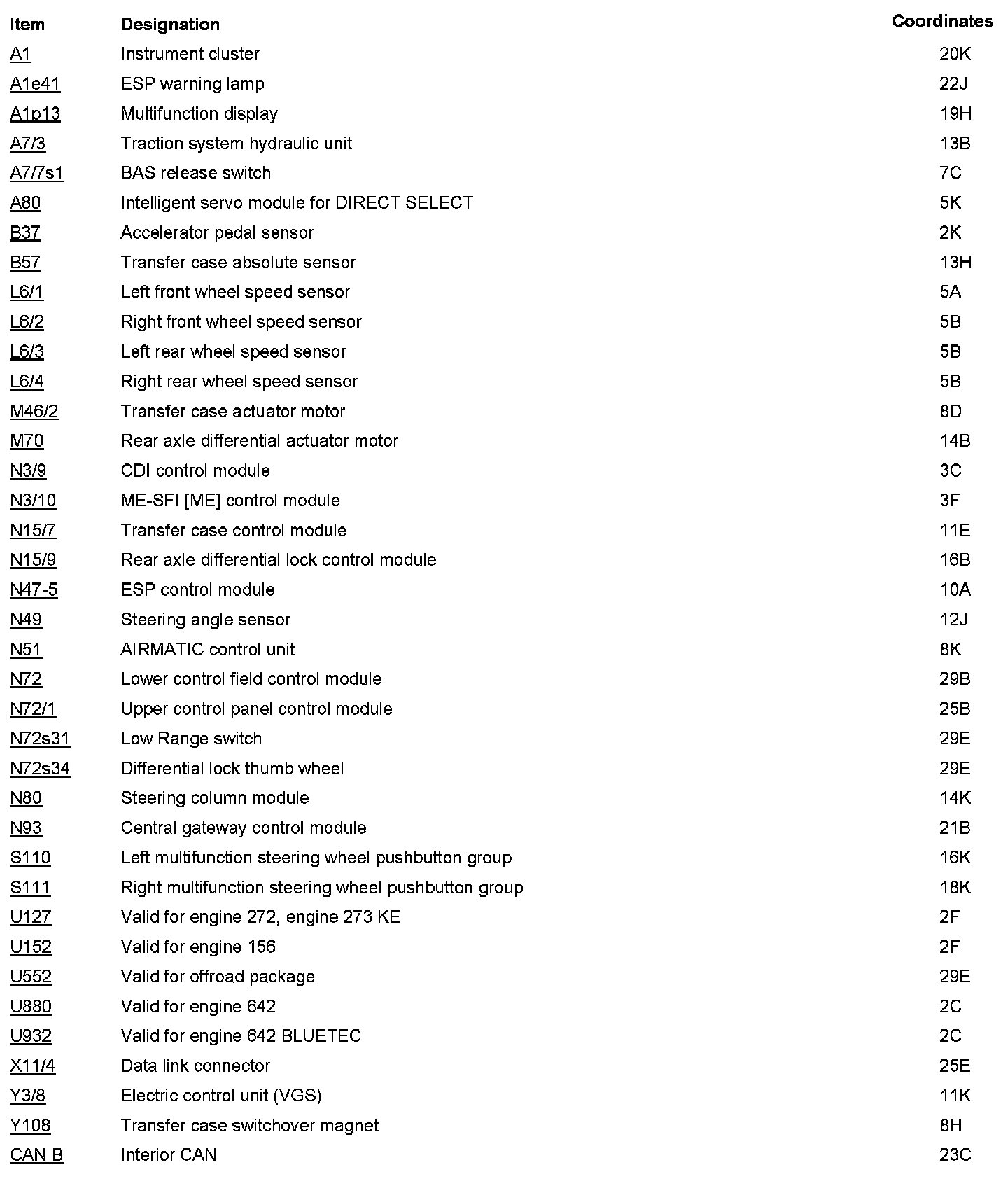

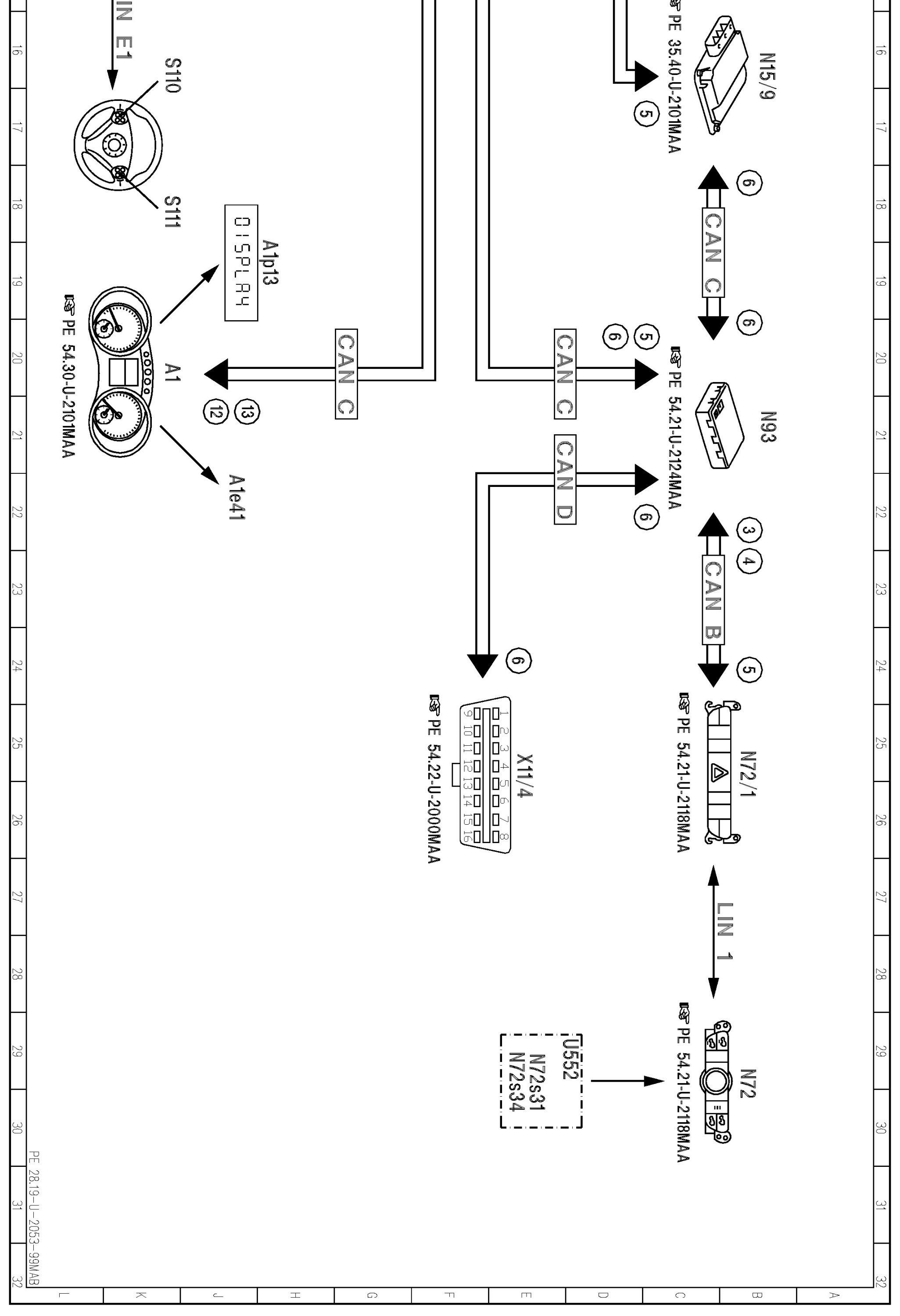

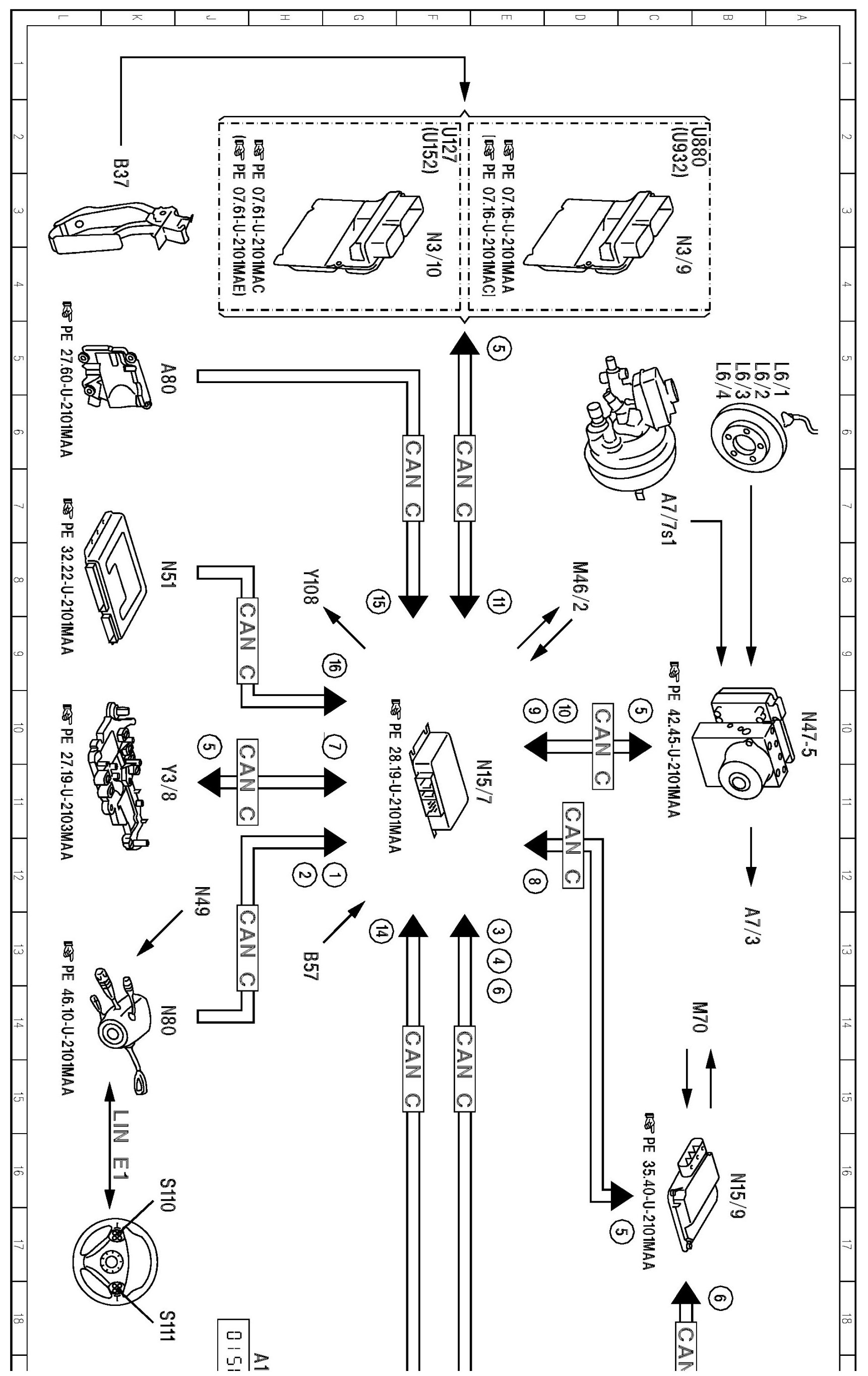

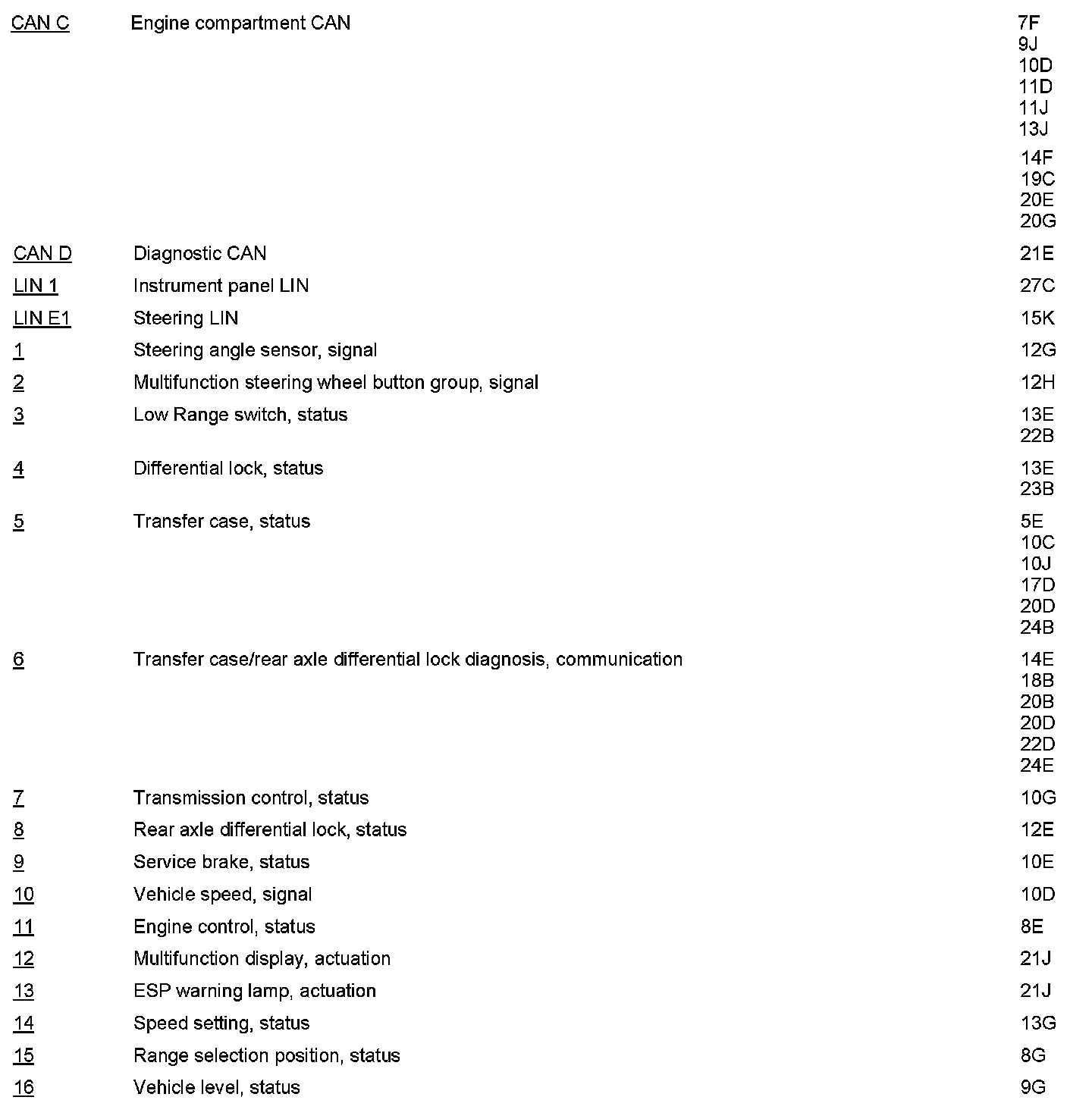

PE28.19-U-2053MAB Electrical Function Schematic For Transfer Case/Rear Axle Differential Lock Control



PE28.19-U-2053MAB Electrical Function Schematic For Transfer Case/Rear Axle Differential Lock Control
- TRANSMISSION 722.9


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
