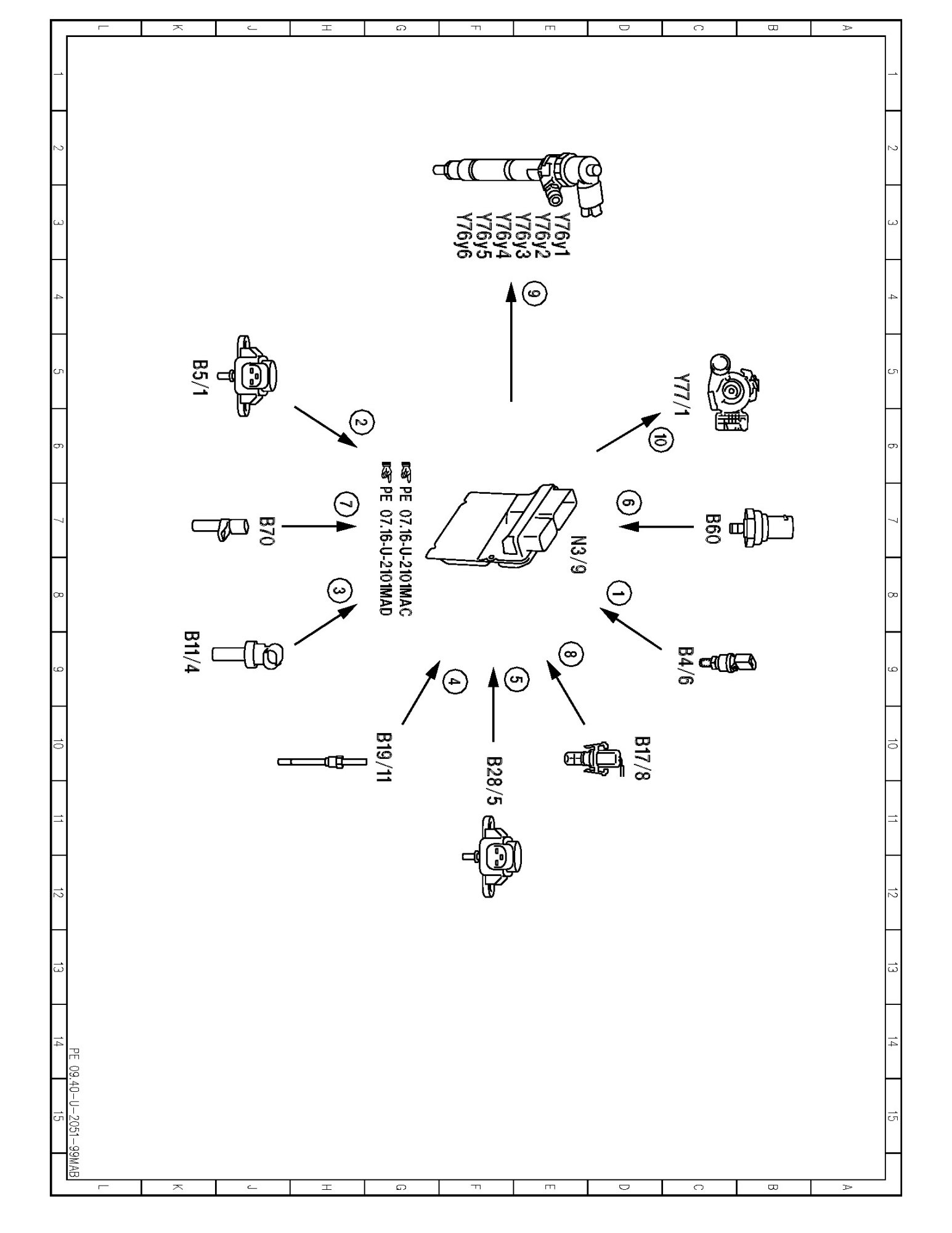

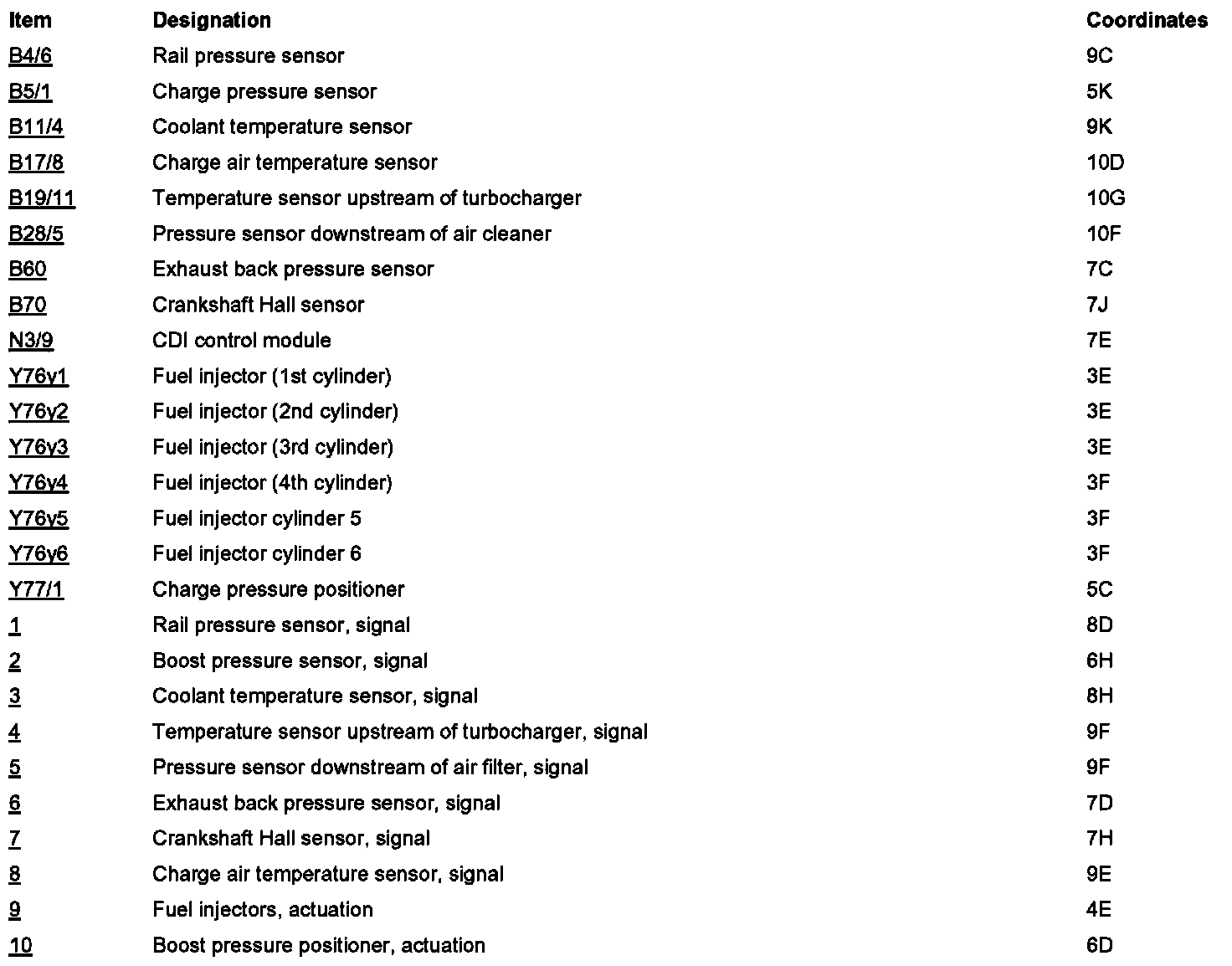

PE09.40-U-2051MAB Electrical Function Schematic For Charge Pressure Control, Loading

PE09.40-U-2051MAB Electrical Function Schematic For Charge Pressure Control, Loading
- with CODE (U42) BLUETEC diesel exhaust treatment (SCR)











Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
