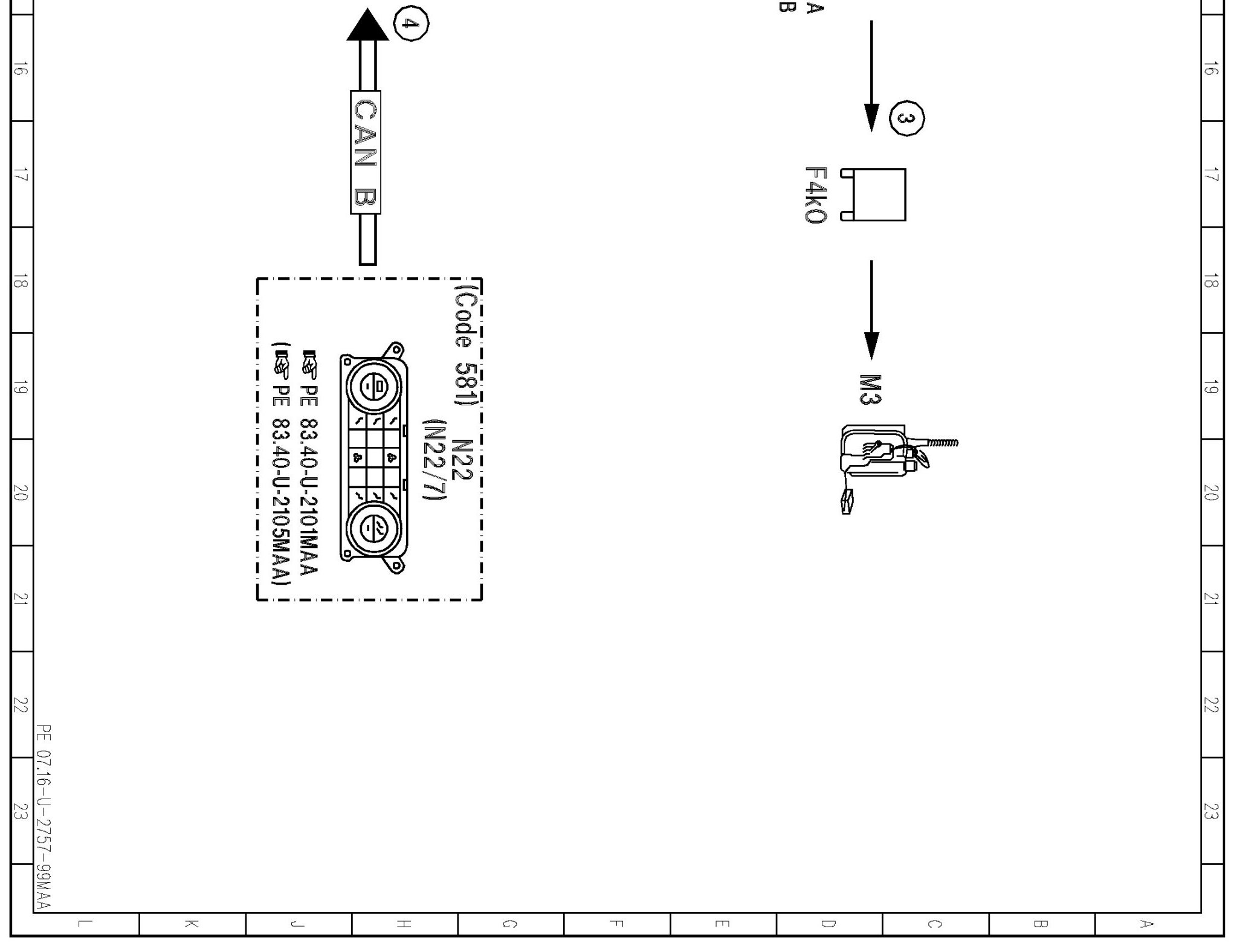

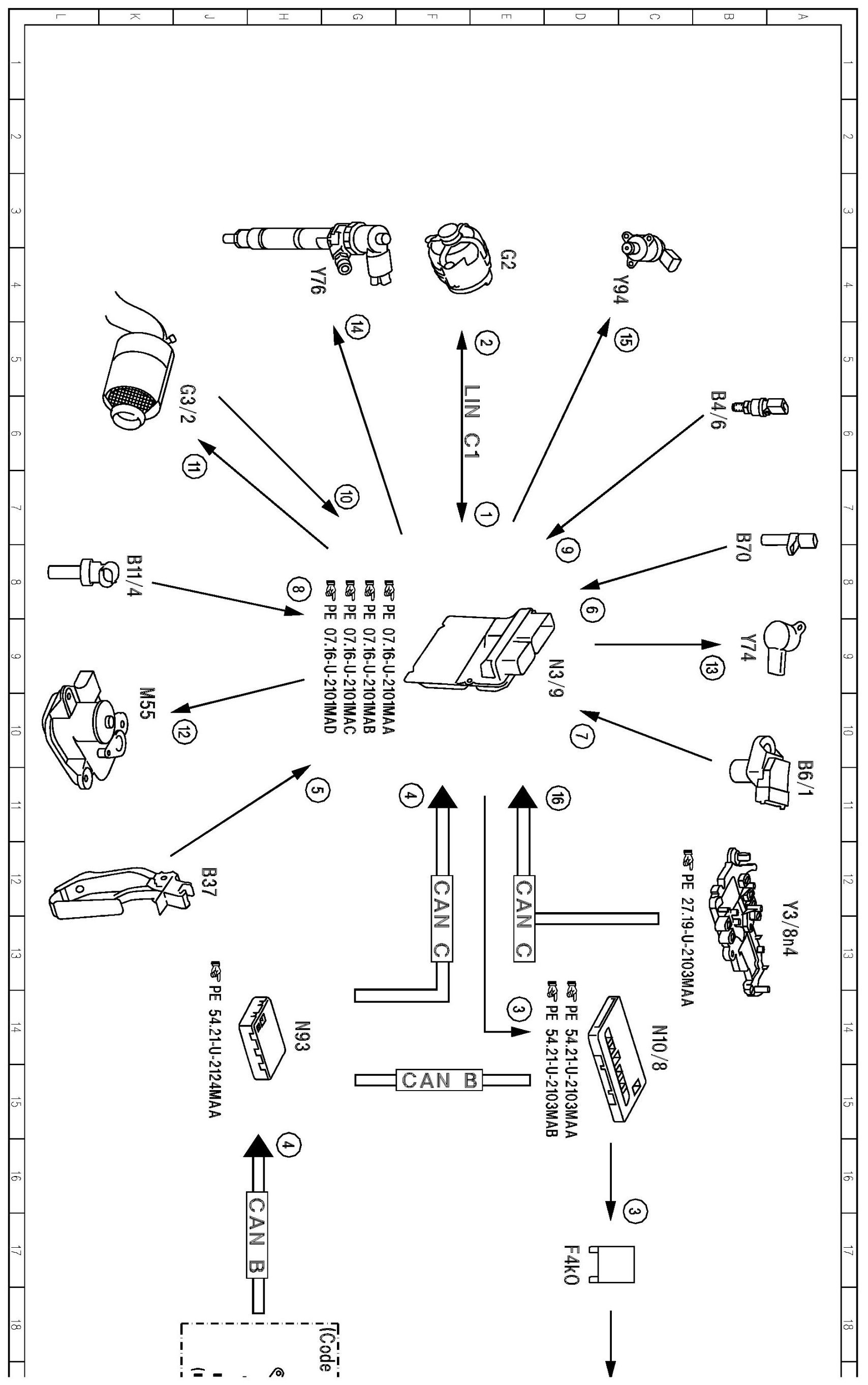

PE07.16-U-2757MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Idle

PE07.16-U-2757MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Idle
- with CODE (U42) BlurTEC diesel exhaust treatment (SCR)














Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
