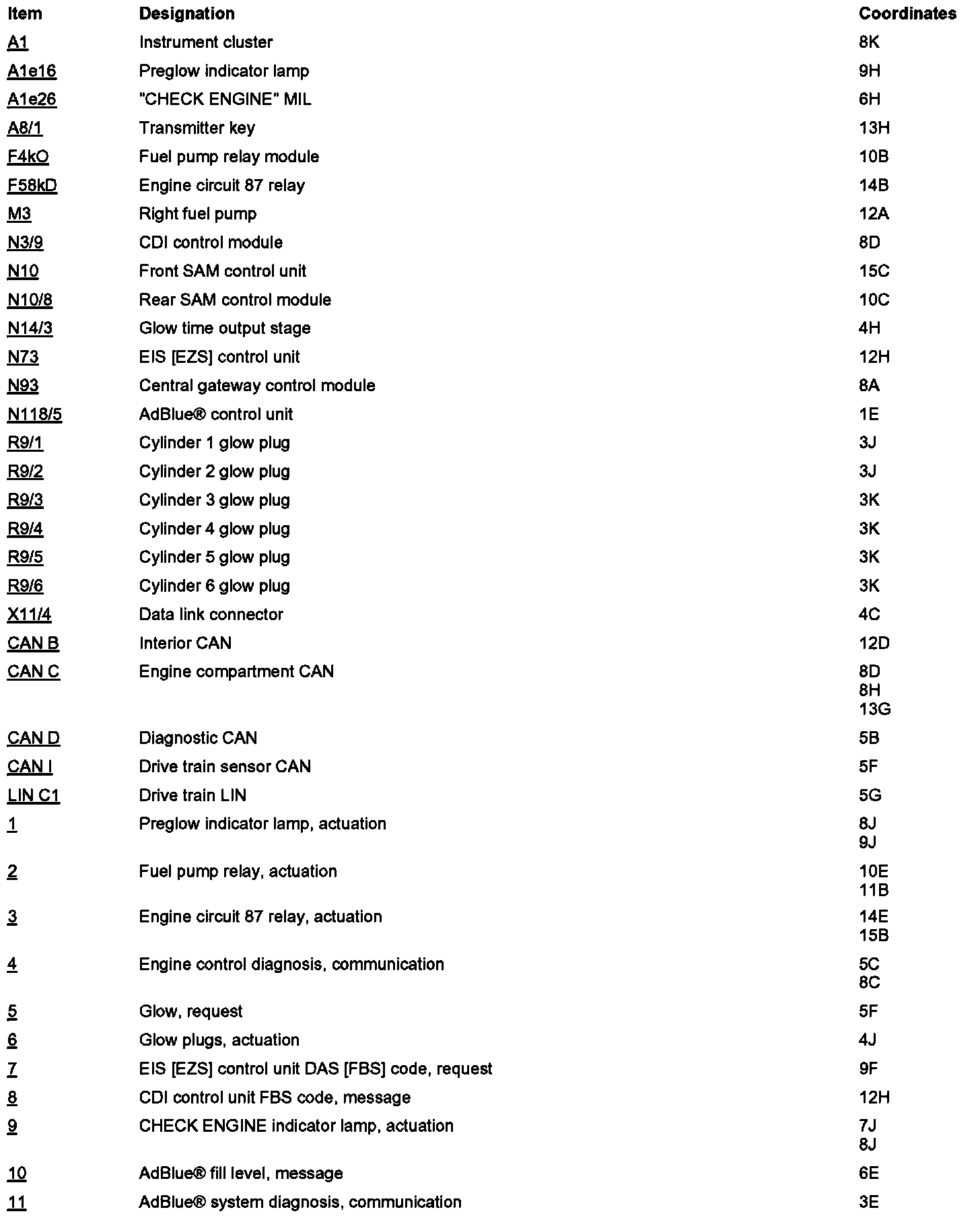

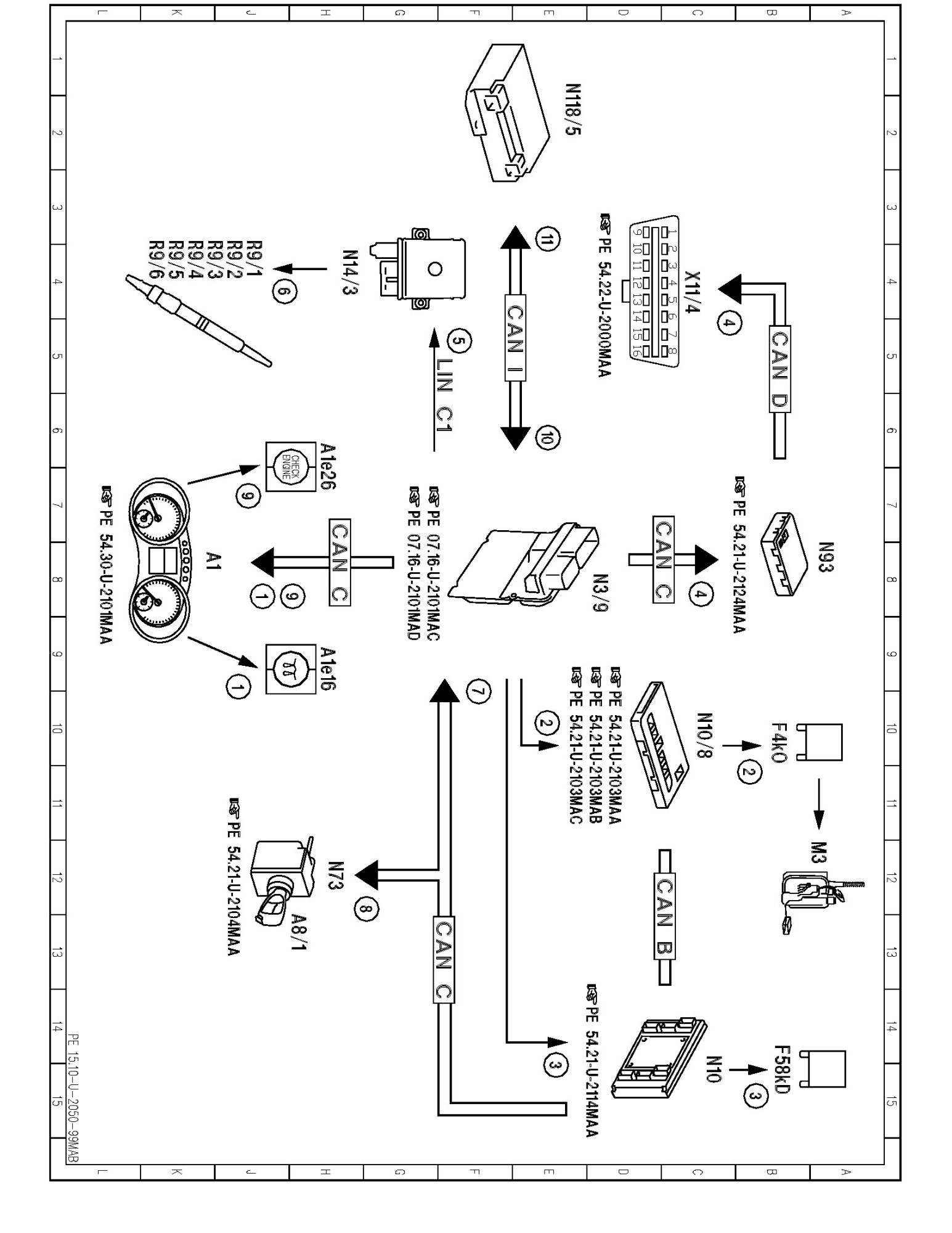

PE15.10-U-2050MAB Electrical Function Schematic For Common Rail Diesel Injection (CDI), Ignition ON

PE15.10-U-2050MAB Electrical Function Schematic For Common Rail Diesel Injection (CDI), Ignition ON











Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
