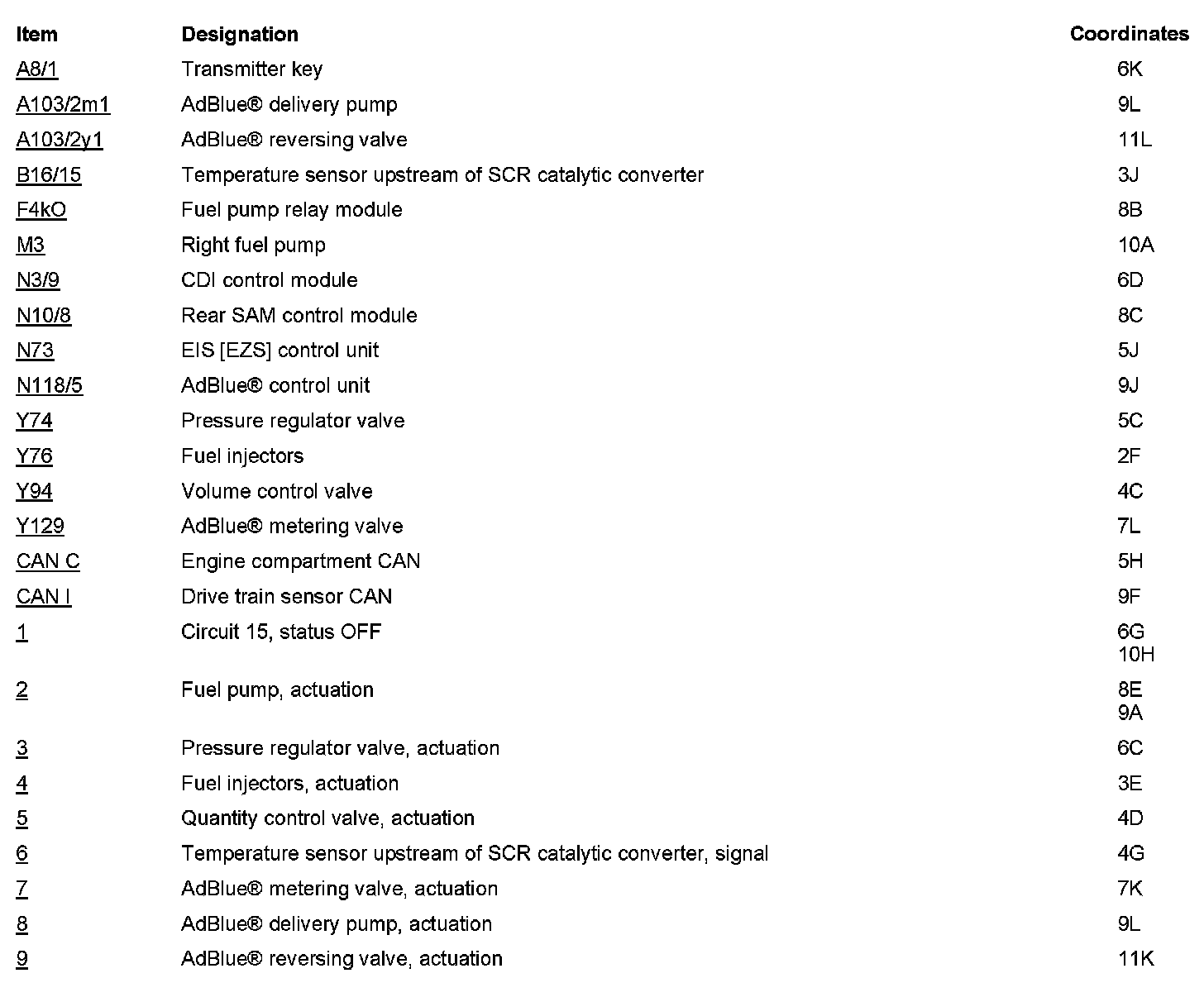

PE15.10-U-2051MAB Electrical Function Schematic For Common Rail Diesel Injection (CDI), Ignition OFF

PE15.10-U-2051MAB Electrical Function Schematic For Common Rail Diesel Injection (CDI), Ignition OFF
- With CODE (U42) BlueTEC diesel exhaust treatment (SCR)










Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
