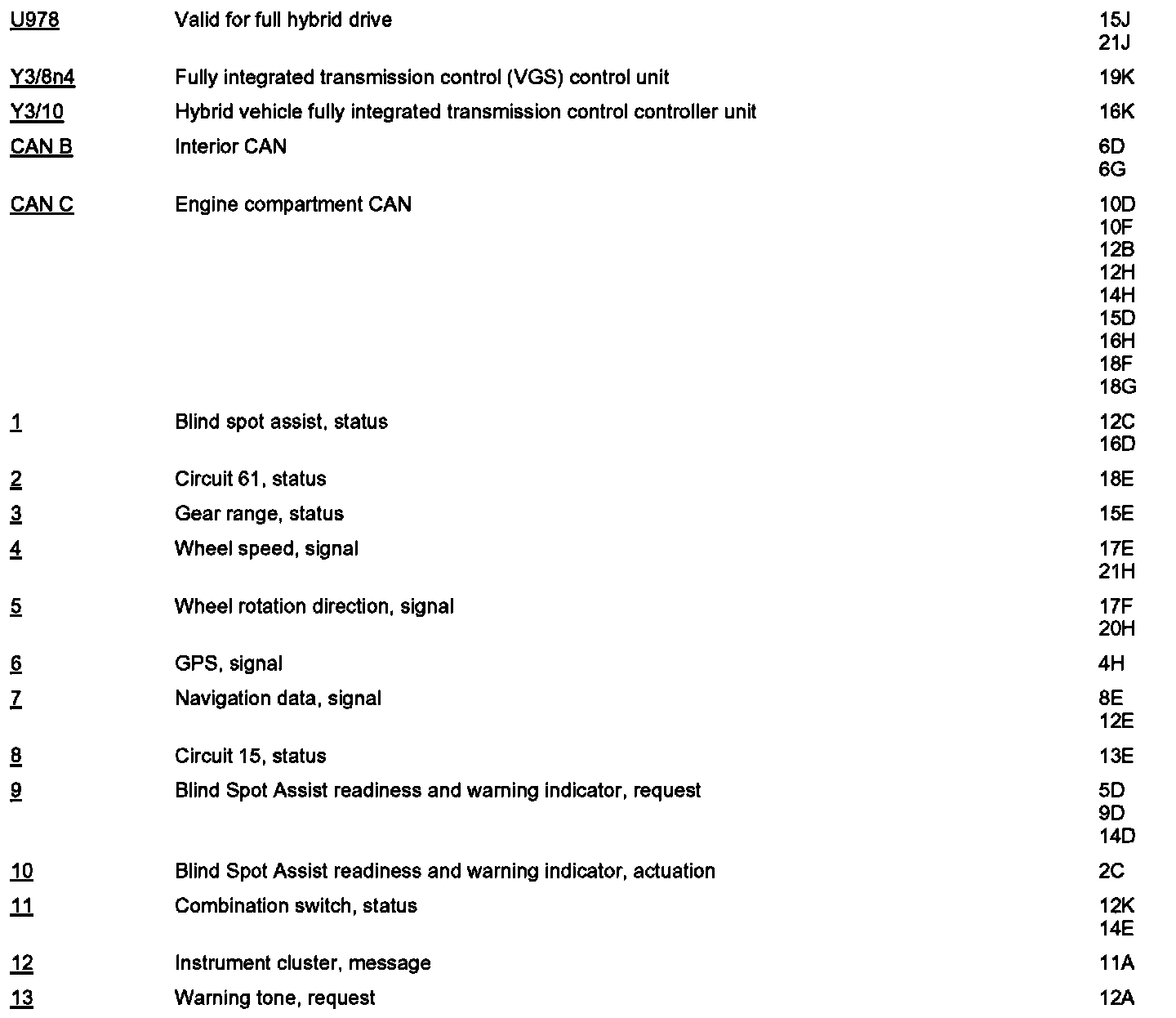

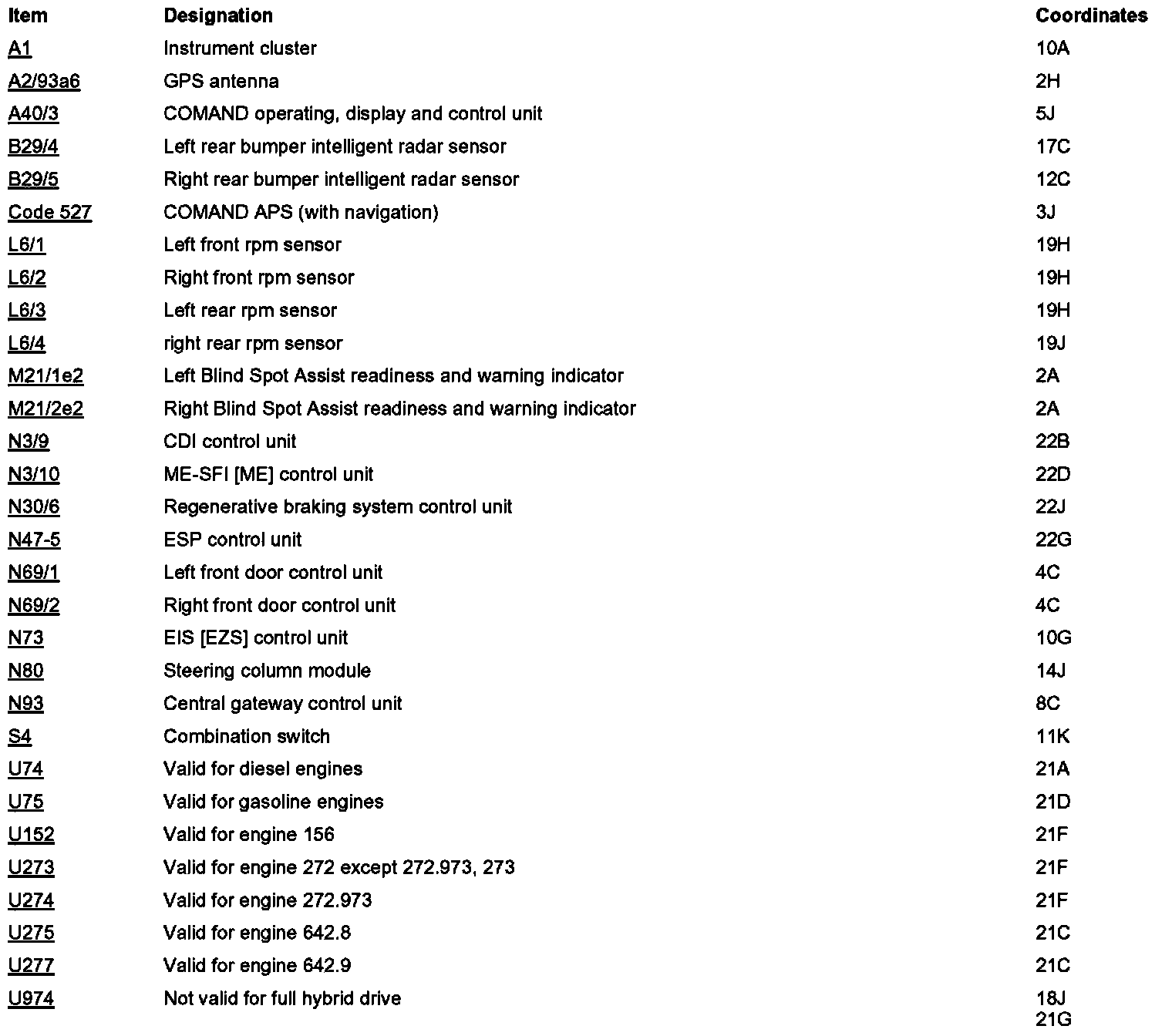

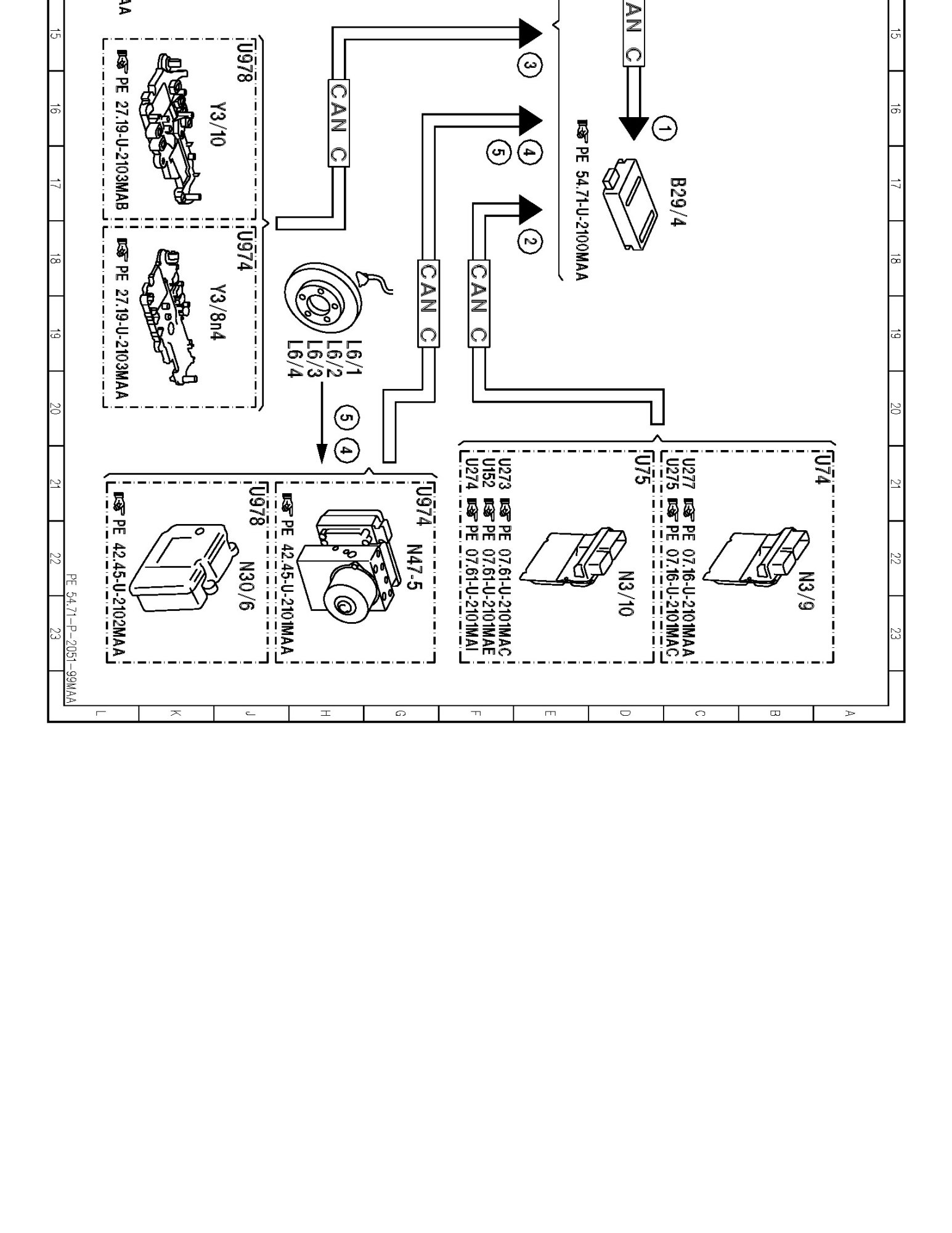

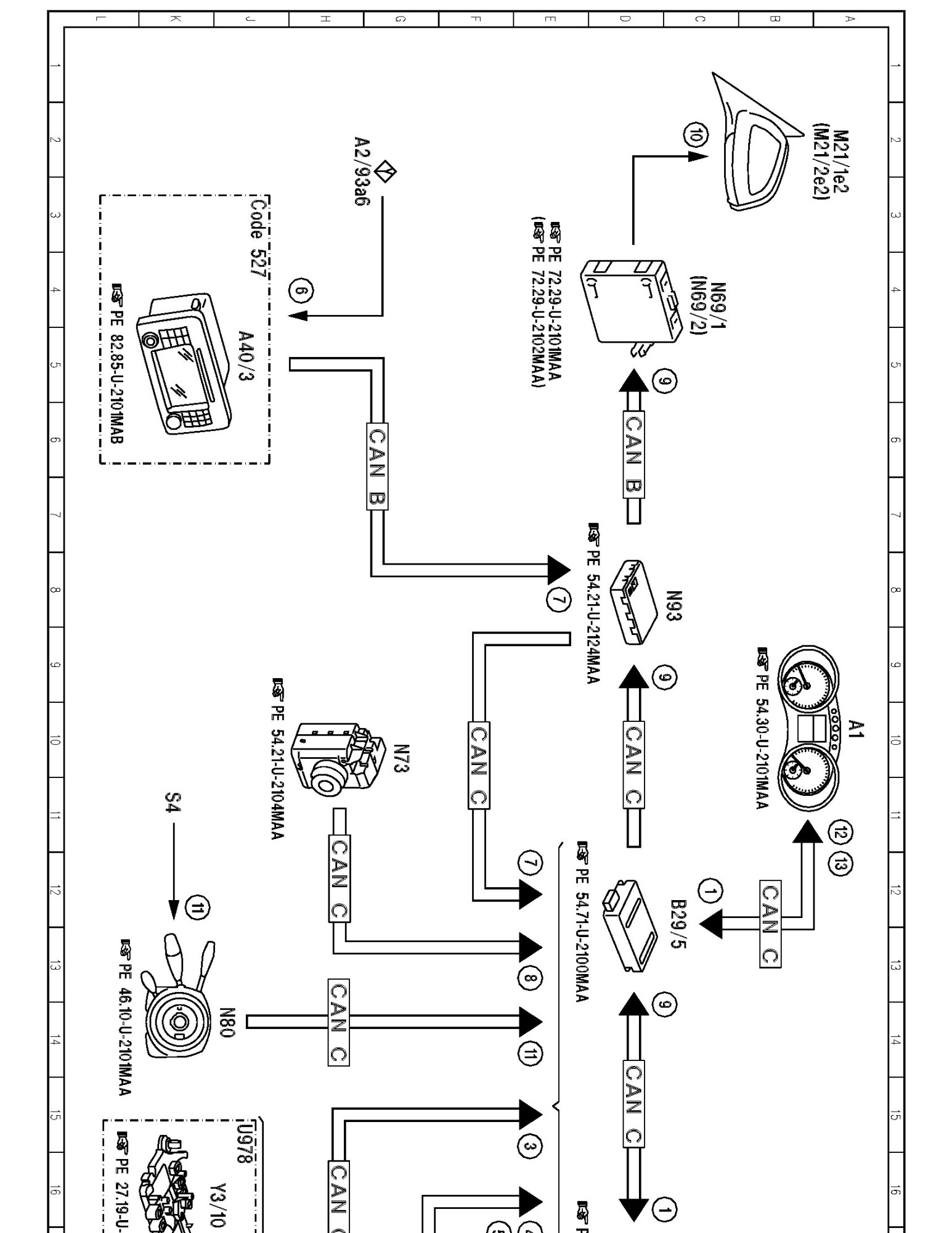

PE54.71-U-2051MAA Electrical Function Schematic, Blind Spot Assistant



PE54.71-U-2051MAA Electrical Function Schematic, Blind Spot Assistant
- with CODE (234) Blind Spot Assist



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
