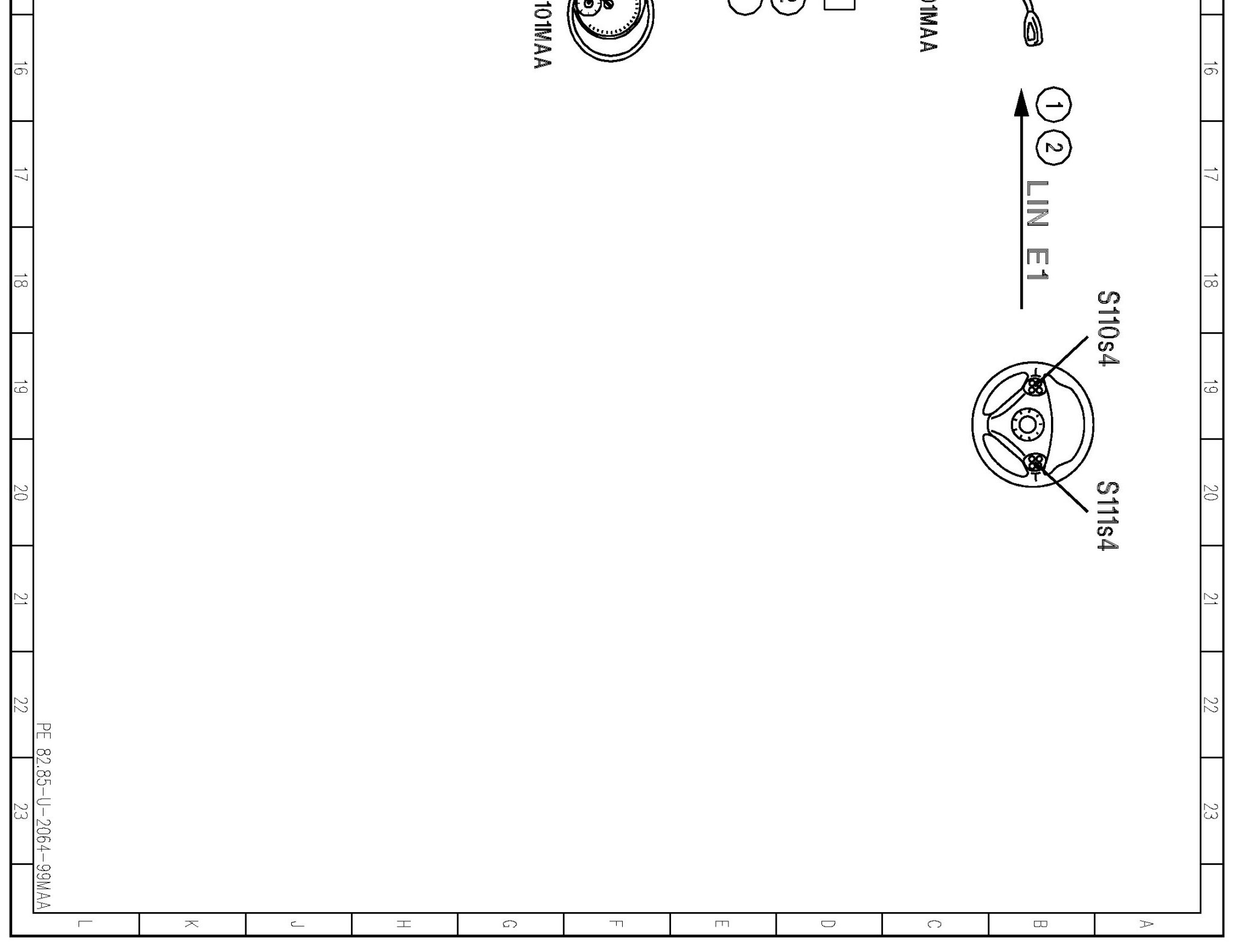

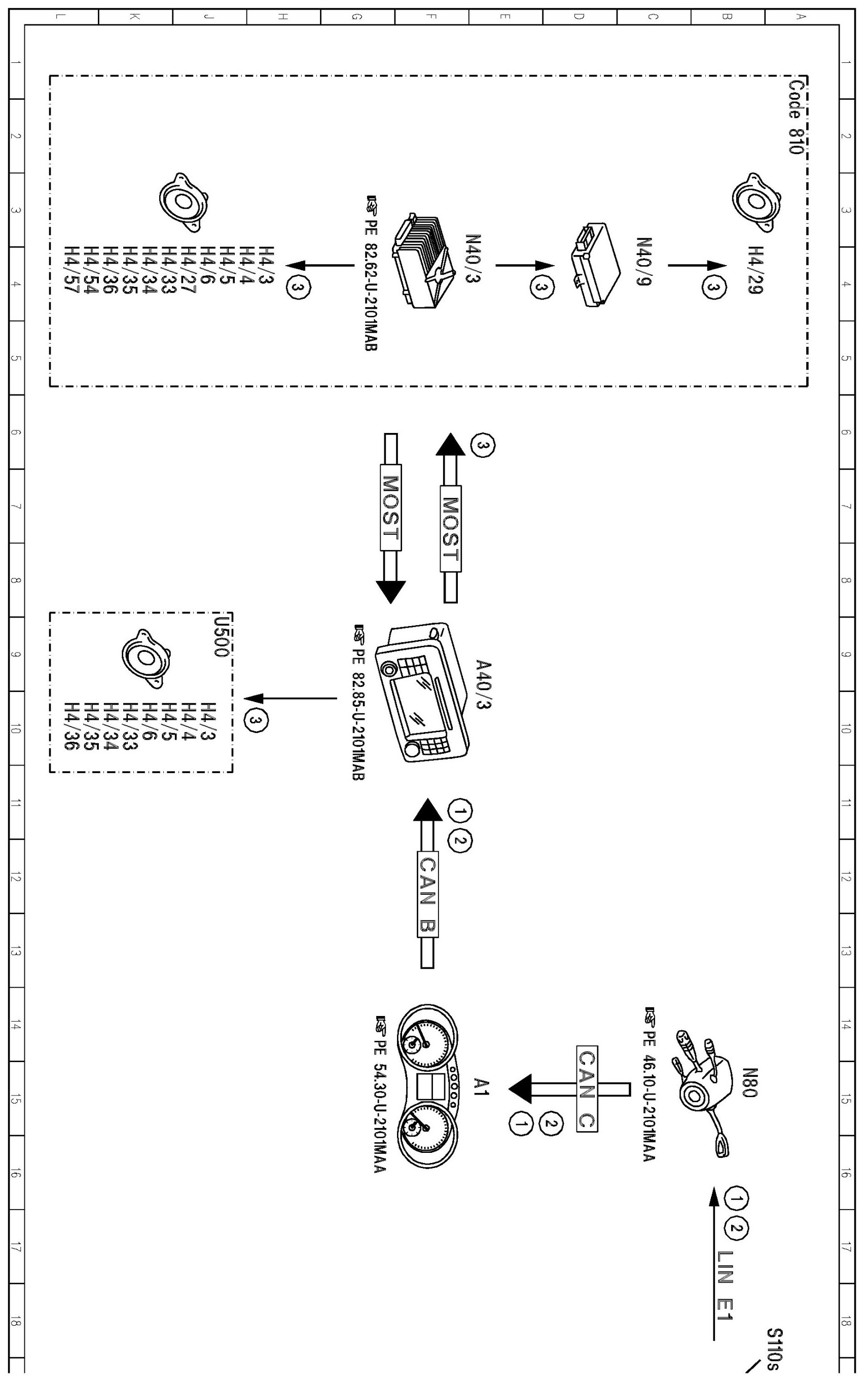

PE82.85-U-2064MAA Electrical Function Schematic For Video Mode, Function

PE82.85-U-2064MAA Electrical Function Schematic For Video Mode, Function
- with CODE (528) COMAND with DVD changer without navigation
- with CODE (512) COMAND APS with DVD changer














Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
