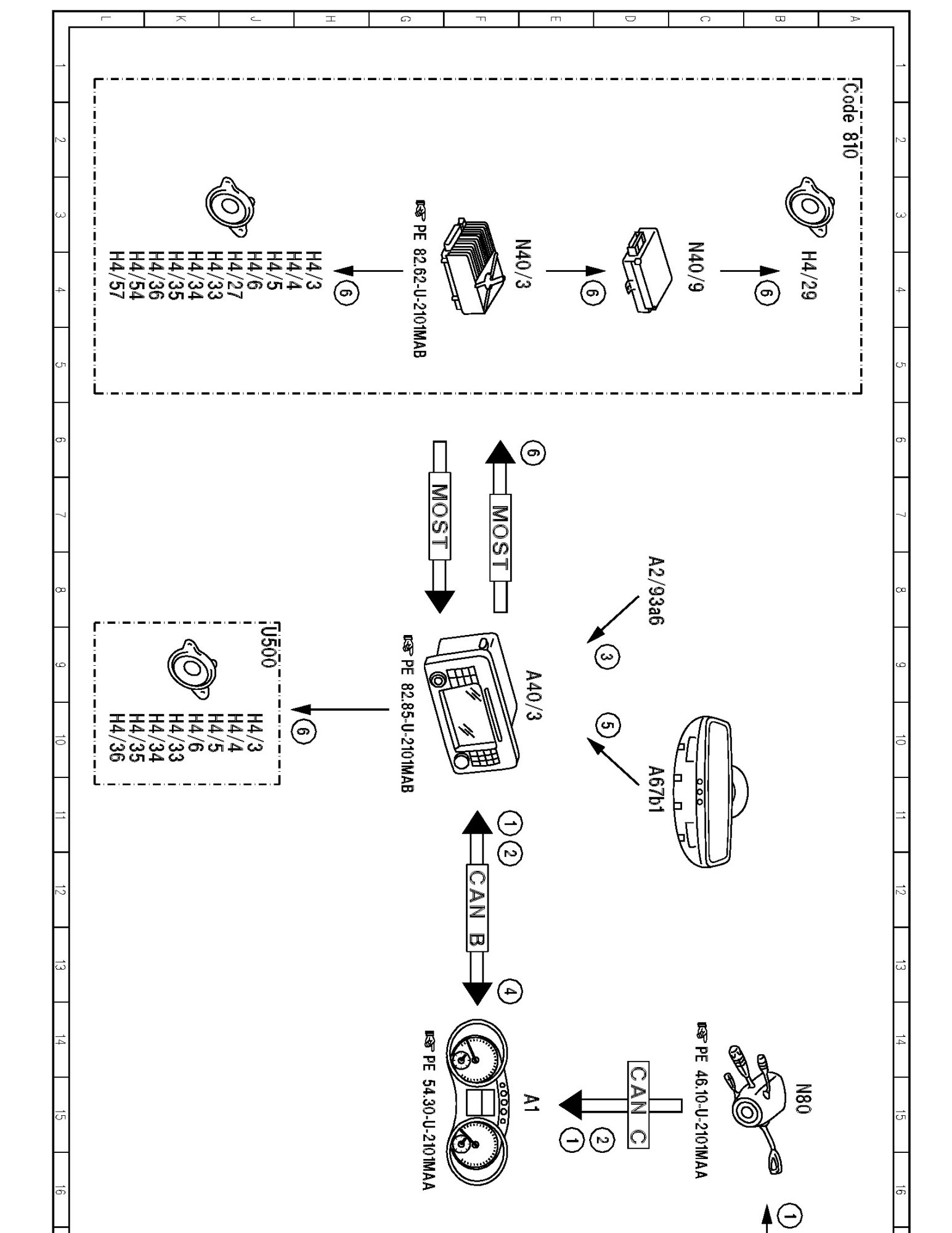

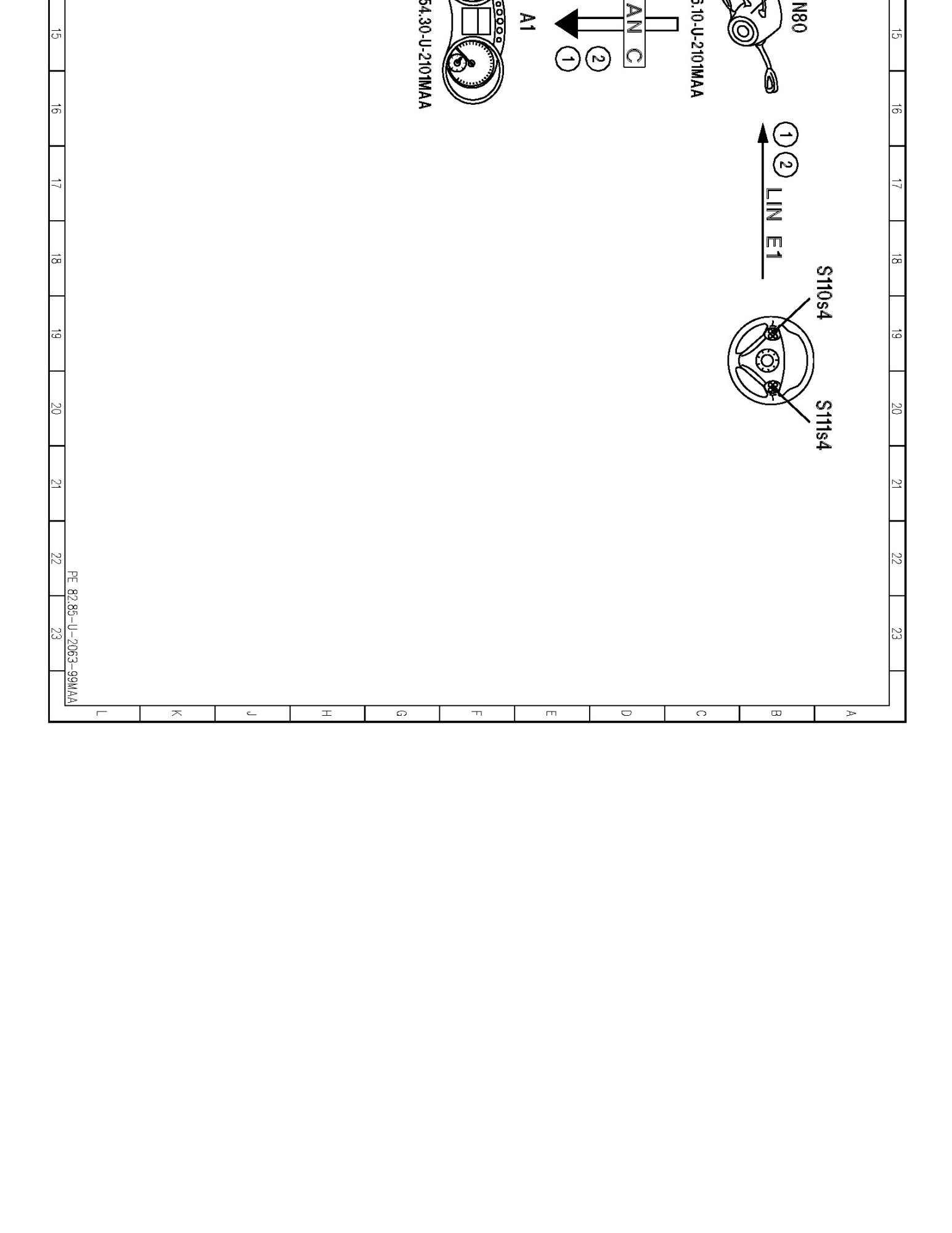

PE82.85-U-2063MAA Electrical Function Schematic For Navigation Mode (COMAND), Function



PE82.85-U-2063MAA Electrical Function Schematic For Navigation Mode (COMAND), Function
- with CODE (512) COMAND APS with DVD changer

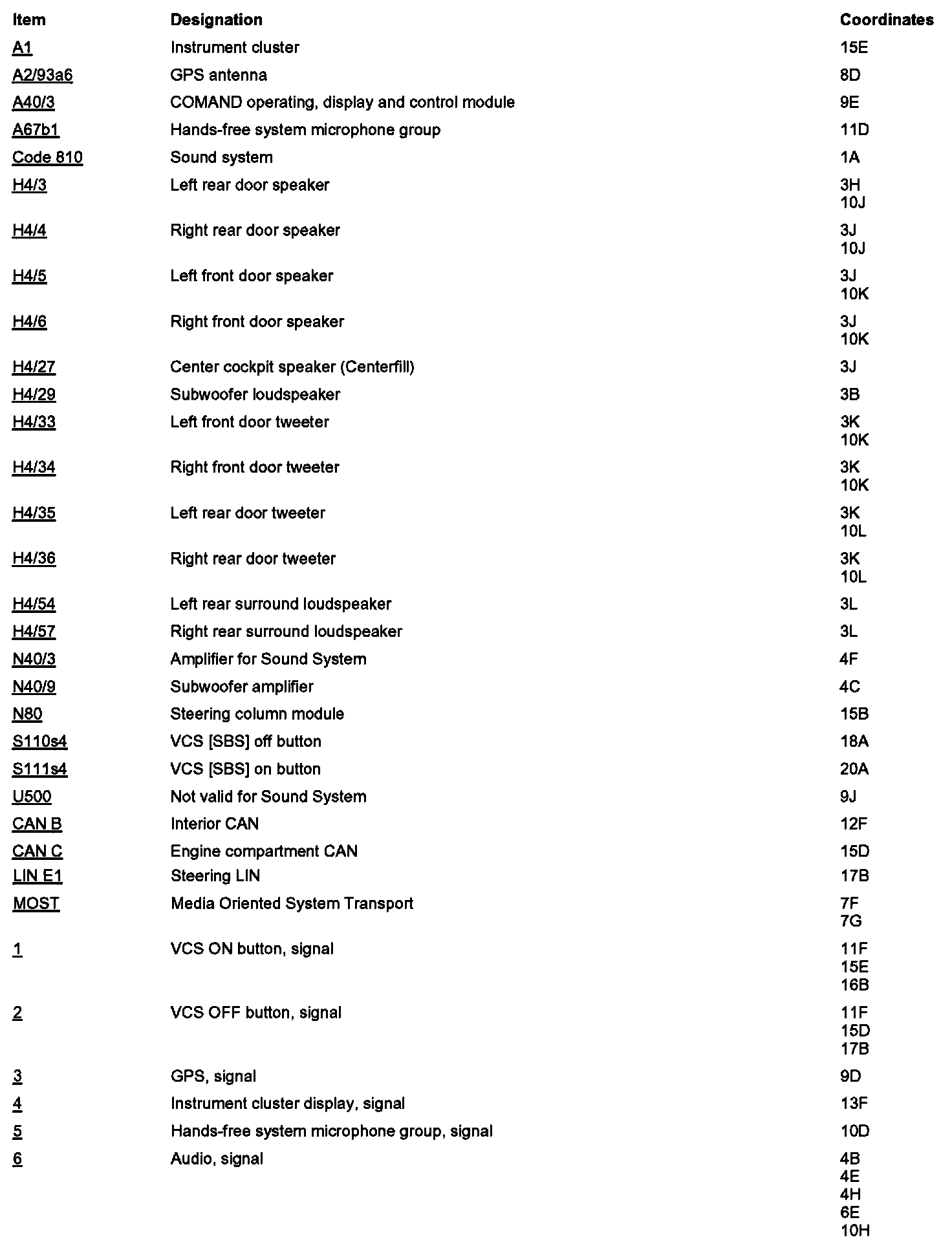

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
