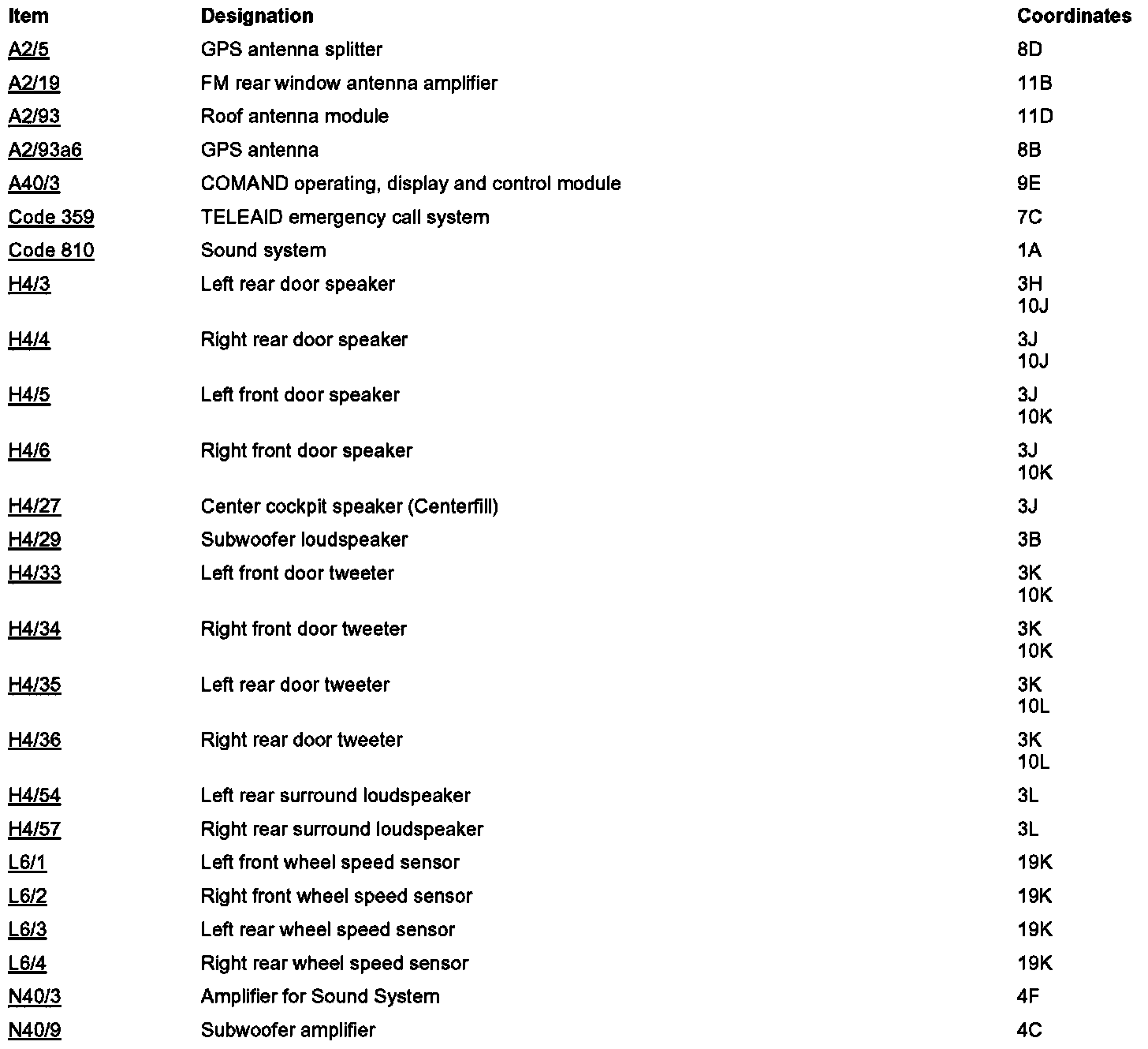

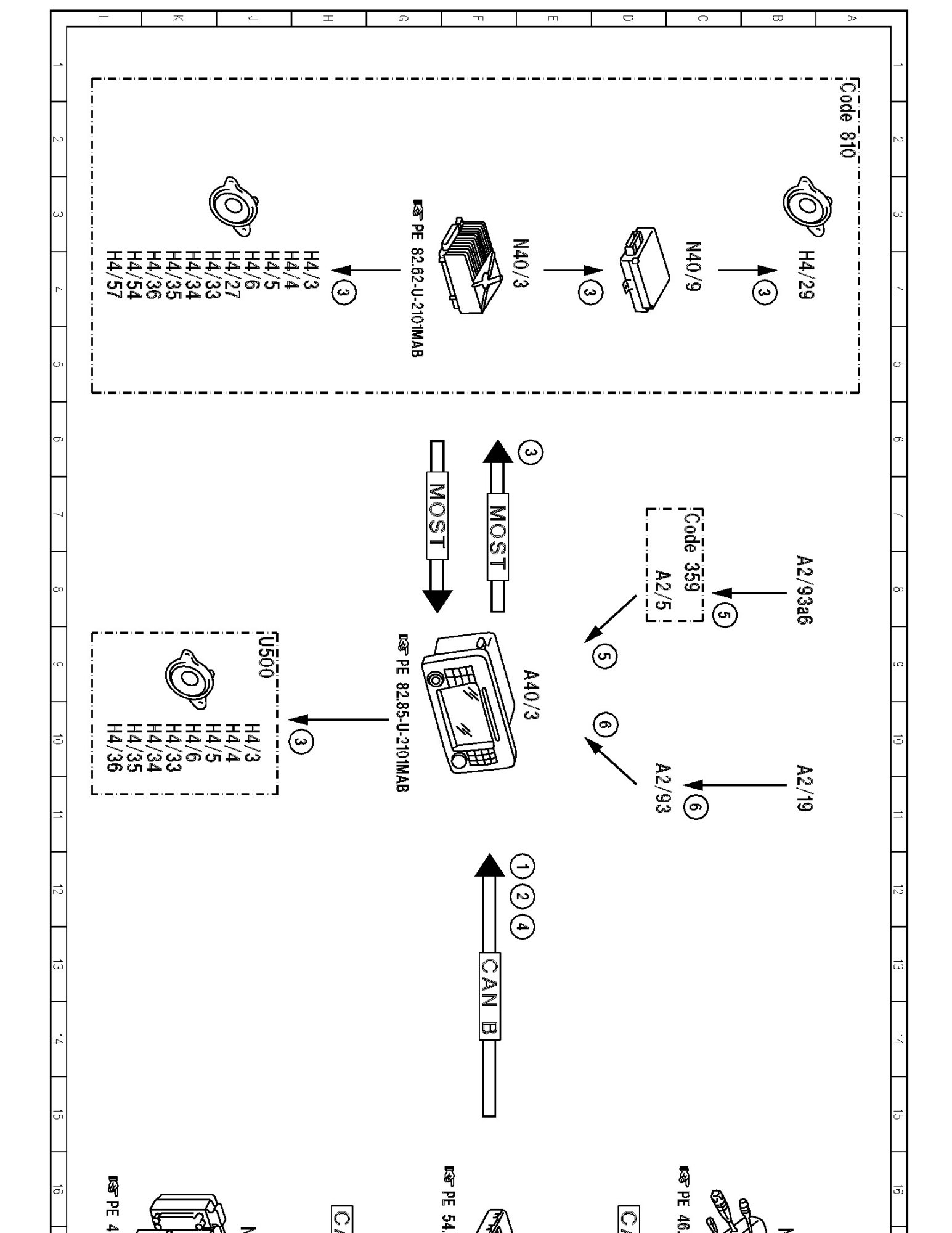

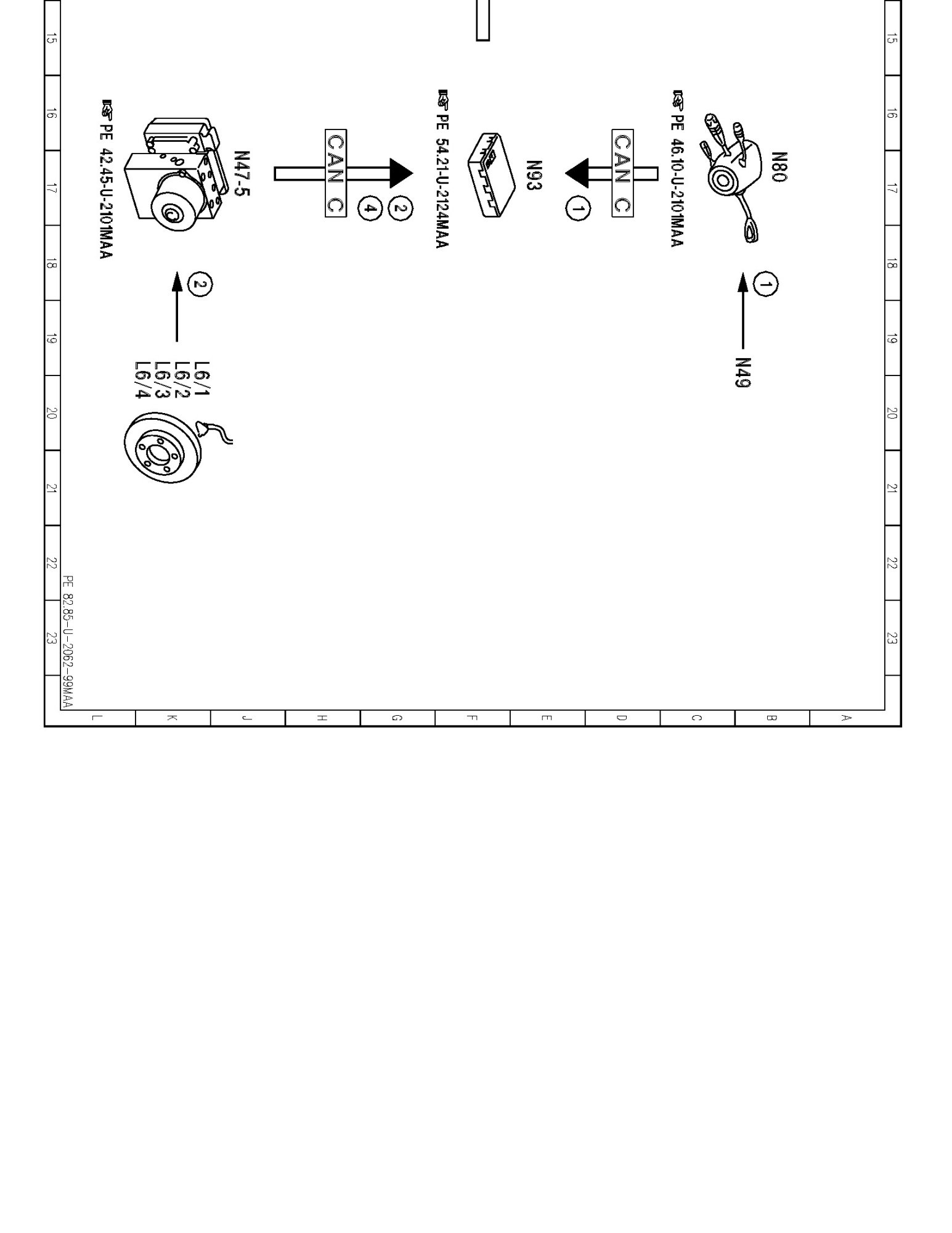

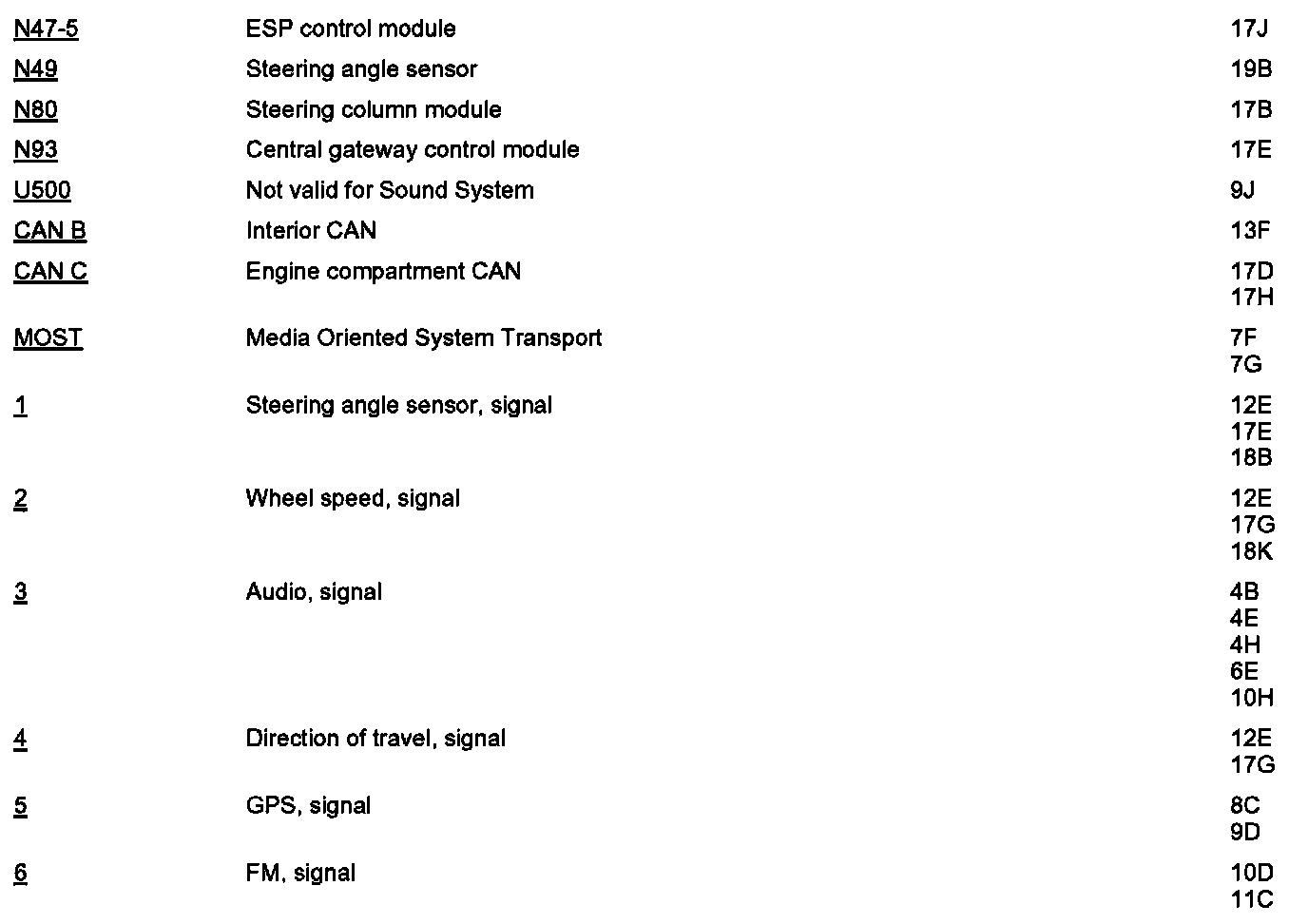

PE82.85-U-2062MAA Electrical Function Schematic For Position Finding and Navigation (COMAND), Function



PE82.85-U-2062MAA Electrical Function Schematic For Position Finding and Navigation (COMAND), Function
- with CODE (512) COMAND APS with DVD changer



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
